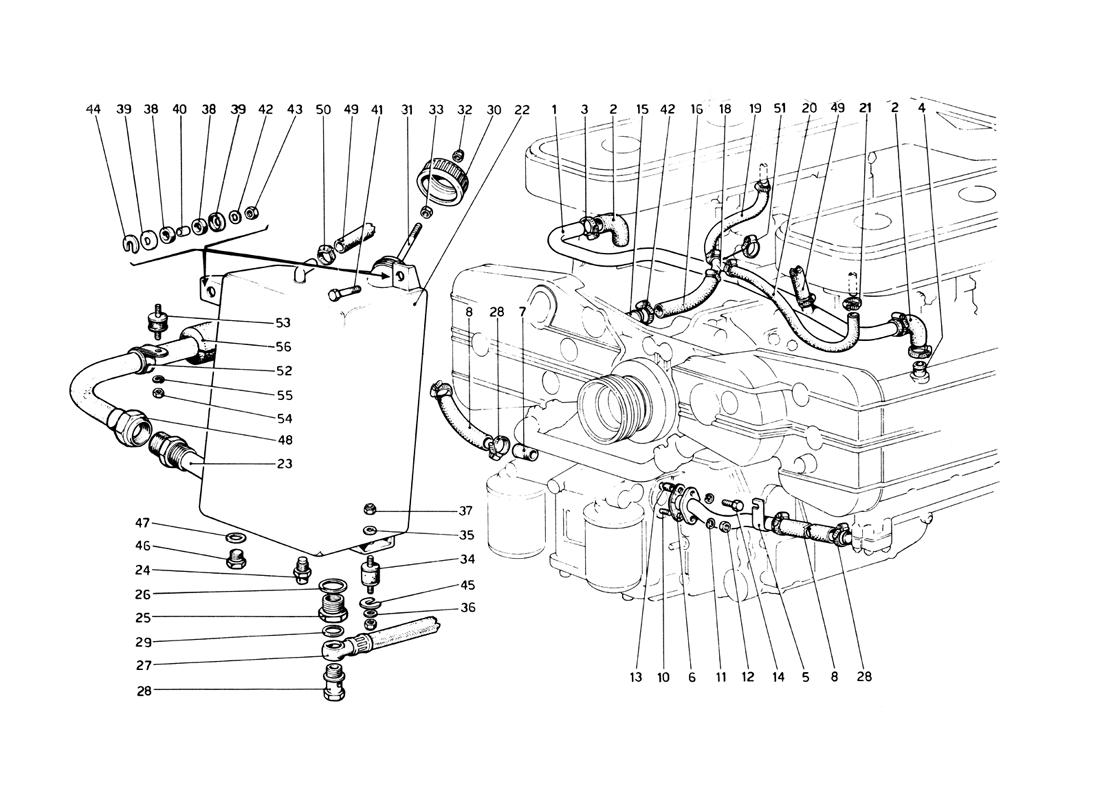

LUBRICATION - BLOW-BY AND OIL RESERVOIR

Go to Split View

LUBRICATION - BLOW-BY AND OIL RESERVOIR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 110885 *Qty: 1 Tubo complete per sflato blow-by $150.11
Location: 2 Prev | Next Part: 104873 *Qty: 2 Manicotto $37.49
Location: 3 Prev | Next Part: 105622 *Qty: 4 Fascetta $4.52
Location: 4 Prev | Next Part: 102705 *Qty: 2 Raccordo sul basamento e sul coperchi teste $32.95
Location: 5 Prev | Next Part: 109770 *Qty: 1 Tubo scarico olio testa sinistra $242.24
Location: 6 Prev | Next Part: 104358 *Qty: 1 Guarnizione Call
Location: 7 Prev | Next Part: 104561 *Qty: 1 Raccordo $10.87
Location: 8 Prev | Next Part: 104562 *Qty: 2 Tubo gomma Superseded
Location: 9 Prev | Next Part: 105622 *Qty: 4 Fascetta $4.52
Location: 10 Prev | Next Part: 11500221 *Qty: 1 Prlgioniero $0.90
Location: 11 Prev | Next Part: 10516471 *Qty: 2 Rondella Superseded
Location: 12 Prev | Next Part: 15896221 *Qty: 2 Dado Superseded
Location: 13 Prev | Next Part: 109668 *Qty: 1 Heli -coil Call
Location: 14 Prev | Next Part: 10902321 *Qty: 1 Vite Superseded
Location: 15 Prev | Next Part: 105195 *Qty: 1 Raccordo sul basamento $60.52
Location: 16 Prev | Next Part: 110896 *Qty: 1 Tubo Superseded
Location: 17 Prev | Next Part: 105622 *Qty: 2 Fascetta $4.52
Location: 18 Prev | Next Part: 110889 *Qty: 1 Raccordo a tre vie $44.15
Location: 19 Prev | Next Part: 110888 *Qty: 1 Tubo colleg. 3 vie alla presa aria Dx. $19.68
Location: 20 Prev | Next Part: 110887 *Qty: 1 Tubo colleg. 3 vie alla presa aria Sx $84.15
Location: 21 Prev | Next Part: 100507 *Qty: 4 Fascetta Call
Location: 22 Prev | Next Part: 110644 *Qty: 1 Serbatoia olio Call
Location: 23 Prev | Next Part: 113665 *Qty: 1 Assierne filtro oiio $29.88
Location: 24 Prev | Next Part: 107576 *Qty: 1 Termistore olio $135.30
Location: 25 Prev | Next Part: 109721 *Qty: 1 Bocco!a $78.56
Location: 26 Prev | Next Part: 10265060 *Qty: 1 Guarnizione $0.90
Location: 27 Prev | Next Part: 109536 *Qty: 1 Tubo dalla pompa di recupero al serbatoio $441.47
Location: 28 Prev | Next Part: 109684 *Qty: 1 Socchettone Superseded
Location: 29 Prev | Next Part: 10264660 *Qty: 2 Guarnizione $5.90
Location: 30 Prev | Next Part: 109719 *Qty: 1 Tappo Superseded
Location: 30 Prev | Next Part: 110753 *Qty: 1 Tappo carl co olio completo di asta livello Call
Location: 31 Prev | Next Part: 110754 *Qty: 1 Asta livello olio $80.38
Location: 32 Prev | Next Part: 100044 *Qty: 1 Dado cieco $0.90
Location: 33 Prev | Next Part: 15896211 *Qty: 1 Dado Superseded
Location: 34 Prev | Next Part: 101495 *Qty: 1 Supporto antivibrante $15.66
Location: 35 Prev | Next Part: 12646201 *Qty: 1 Rondella $0.90
Location: 36 Prev | Next Part: 10519601 *Qty: 1 Rondella Superseded
Location: 37 Prev | Next Part: 15100811 *Qty: 2 Dado Call
Location: 38 Prev | Next Part: 107978 *Qty: 4 Tassello elastico $1.46
Location: 39 Prev | Next Part: 107379 *Qty: 4 Scodeliino Call
Location: 40 Prev | Next Part: 107930 *Qty: 2 Boccola distanziale Call
Location: 41 Prev | Next Part: 16043921 *Qty: 1 Vite $0.90
Location: 42 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 43 Prev | Next Part: 16100611 *Qty: 2 Dado Call
Location: 43 Prev | Next Part: 109537 *Qty: 1 Tubo dal serbatoia a:la pompa di mandate Call
Location: 44 Prev | Next Part: 106471 *Qty: 2 RondelIa rasamento spess. mm. 2
Di eventuale montaggio
$10.77
Location: 44 Prev | Next Part: 106472 *Qty: 2 RondelIa rasamento spess. mm. 3
Di eventuale montaggio
$12.64
Location: 44 Prev | Next Part: 106470 *Qty: 2 Rondella rasamento spess. mm. 1
Di eventuale montaggio
$9.84
Location: 45 Prev | Next Part: 101039 *Qty: 2 Rondella rasamento spess. mm. 1
Di eventuale montaggio
$2.00
Location: 45 Prev | Next Part: 107330 *Qty: 2 Rondella rasamento spess. mm. 1.3
Di eventuale montaggio
Superseded
Location: 45 Prev | Next Part: 107339 *Qty: 2 Rondella rasamento spess. mm. 2
Di eventuale montaggio
$2.00
Location: 45 Prev | Next Part: 107340 *Qty: 2 Rondella rasamento spess. mm. 2.5
Di eventuale montaggio
$2.00
Location: 45 Prev | Next Part: 107341 *Qty: 2 Rondella rasamento spess. mm. 3
Di eventuale montaggio
$2.00
Location: 45 Prev | Next Part: 107342 *Qty: 2 Rondella rasamerrto spess. mm. 3.25
Di eventuale montaggio
$1.18
Location: 46 Prev | Next Part: 10305171 *Qty: 1 Tappo scarico $2.39
Location: 47 Prev | Next Part: 10263460 *Qty: 1 Guarnizione Superseded
Location: 49 Prev | Next Part: 110890 *Qty: 1 Tubo colIeg. serbatoio olio al tube blow-by $30.24
Location: 50 Prev | Next Part: 104022 *Qty: 2 Fascetta Call
Location: 51 Prev | Next Part: 105550 *Qty: 1 Fascetta $1.41
Location: 52 Prev | Next Part: 10442190 *Qty: 2 Fascetta soslegno tuso $0.94
Location: 53 Prev | Next Part: 102947 *Qty: 2 Tampone arttivibrante
Dope esaur. n. 102007
$18.79
Location: 53 Prev | Next Part: 102007 *Qty: 2 Tarn pone antivibrante
Vafc fino ad esau rimer to
Superseded
Location: 54 Prev | Next Part: 15896211 *Qty: 2 Dado Superseded
Location: 55 Prev | Next Part: 106850 *Qty: 2 Rondella Superseded
Location: 56 Prev | Next Part: 110793 *Qty: 1 Isolante per tubo $15.41

* Quantity shown indicates the number of pieces used in the diagram.
