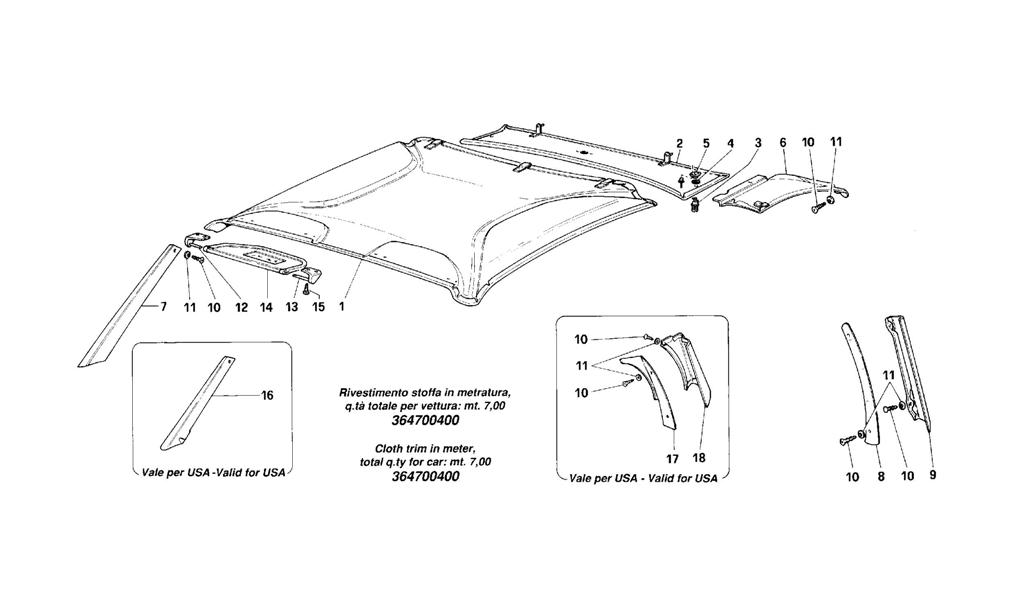

INTERNAL ELEMENTS BODY -UPPER ZONE-

Go to Split View

INTERNAL ELEMENTS BODY -UPPER ZONE-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62504500 *Qty: 1 Covering Call
Location: 1 Prev | Next Part: 62731000 *Qty: 1 Top part covering -Valid for USA Call
Location: 1 Prev | Next Part: 62459100 *Qty: 1 Top part covering -Not for USA Call
Location: 2 Prev | Next Part: 62568200 *Qty: 1 Covering $71.99
Location: 2 Prev | Next Part: 62459300 *Qty: 1 Central frame work Call
Location: 3 Prev | Next Part: 62468200 *Qty: 2 Pin $19.12
Location: 4 Prev | Next Part: 62468000 *Qty: 2 Stop ring $1.36
Location: 5 Prev | Next Part: 62467900 *Qty: 2 Clip $48.26
Location: 6 Prev | Next Part: 62459500 *Qty: 1 R.H. frame work $535.48
Location: 6 Prev | Next Part: 62459600 *Qty: 1 L.H. frame work $964.92
Location: 6 Prev | Next Part: 62503500 *Qty: 1 R.H. panel $59.52
Location: 6 Prev | Next Part: 62503600 *Qty: 1 L.H. panel $17.61
Location: 7 Prev | Next Part: 62474800 *Qty: 1 R.H. moulding -Not for USA Call
Location: 7 Prev | Next Part: 62474900 *Qty: 1 L.H. moulding -Not for USA Call
Location: 7 Prev | Next Part: 62503900 *Qty: 2 L.H. and R.H. covering -Not for USA Call
Location: 8 Prev | Next Part: 62504300 *Qty: 1 L.H. covering -Not for USA $14.74
Location: 8 Prev | Next Part: 62475500 *Qty: 1 R.H. rear moulding front part -Not for USA $544.85
Location: 8 Prev | Next Part: 62475600 *Qty: 1 L.H. rear moulding front part -Not for USA $544.85
Location: 8 Prev | Next Part: 62504200 *Qty: 1 R.H. covering -Not for USA $12.73
Location: 9 Prev | Next Part: 63345900 *Qty: 1 L.H. covering -Not for USA $23.82
Location: 9 Prev | Next Part: 62480500 *Qty: 1 R.H. rear moulding rear part -Not for USA $560.65
Location: 9 Prev | Next Part: 62480600 *Qty: 1 L.H. rear moulding rear part -Not for USA $539.36
Location: 9 Prev | Next Part: 63345800 *Qty: 1 R.H. covering -Not for USA $23.82
Location: 10 Prev | Next Part: 15908478 *Qty: 21 Screw Call
Location: 11 Prev | Next Part: 12611607 *Qty: 21 Washer $4.67
Location: 12 Prev | Next Part: 61115000 *Qty: 2 R.H. pin $400.71
Location: 13 Prev | Next Part: 61115100 *Qty: 2 L.H. pin $76.70
Location: 14 Prev | Next Part: 62576500 *Qty: 1 L.H. sun viser driver compl. $614.02
Location: 14 Prev | Next Part: 62477700 *Qty: 1 R.H. sun viser driver compl. $188.98
Location: 15 Prev | Next Part: 15687375 *Qty: 8 Screw $0.90
Location: 16 Prev | Next Part: 62749200 *Qty: 1 R.H. moulding -Valid for USA $126.67
Location: 16 Prev | Next Part: 62749300 *Qty: 1 L.H. moulding -Valid for USA $126.67
Location: 16 Prev | Next Part: 62749400 *Qty: 2 L.H. and R.H. covering -Valid for USA $158.03
Location: 17 Prev | Next Part: 62747700 *Qty: 1 R.H. rear moulding rear part -Valid for USA $69.47
Location: 17 Prev | Next Part: 62747800 *Qty: 1 R.H. covering -Valid for USA $9.90
Location: 17 Prev | Next Part: 62748000 *Qty: 1 L.H. rear moulding front part -Valid for USA $69.47
Location: 17 Prev | Next Part: 62749700 *Qty: 1 L.H. covering -Valid for USA $9.90
Location: 18 Prev | Next Part: 62748600 *Qty: 1 R.H. rear moulding rear part -Valid for USA $88.38
Location: 18 Prev | Next Part: 62748700 *Qty: 2 L.H. and R.H. covering -Valid for USA $14.93
Location: 18 Prev | Next Part: 62748800 *Qty: 1 L.H. rear moulding rear part -Valid for USA $88.38

* Quantity shown indicates the number of pieces used in the diagram.
