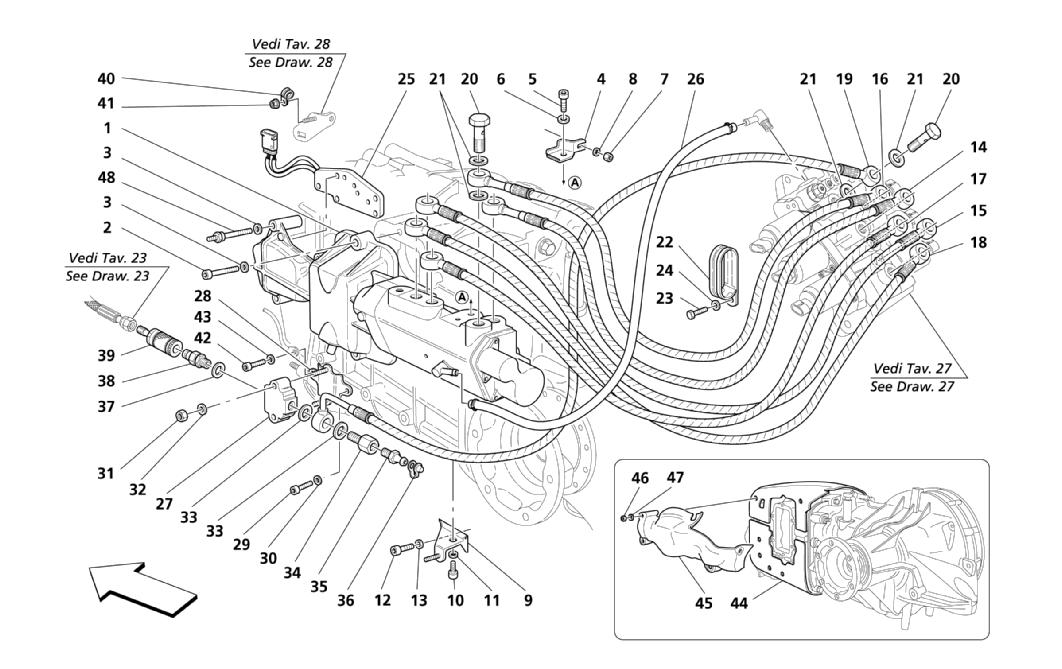

F1 CLUTCH HYDRAULIC CONTROLS -VALID FOR F1

Back to Maserati Spyder 2002+ components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	183064	1	COMPLETE ACTUATOR		Superseded
2	14305624	4	SCREW - Quantity 6 for cars without shield (pos. 45)		Unavailable
2	14305524	2	SCREW		Unavailable
3	12601274	8	WASHER	$0.90
4	186776	1	ACTUATOR SUPPORT UPPER BRACKET	$13.46
5	14306224	1	SCREW		Unavailable
6	12601374	1	WASHER	$0.90
7	14048215	1	NUT	$7.59
8	14499424	1	WASHER		Superseded
9	184213	1	ACTUATOR SUPPORT LOWER BRACKET - Not for cars with shield (pos. 45)	$6.13
9	195445	1	ACTUATOR SUPPORT LOWER BRACKET - Valid for cars with shield (pos. 45)	$13.64
10	14301924	1	SCREW	$3.37
11	12601374	1	WASHER	$0.90
12	14360024	1	SCREW		Unavailable
13	12601474	1	WASHER		Unavailable
14	185977	1	COMPLETE EV1 PIPE	$1,185.52
15	185978	1	COMPLETE EV2 PIPE	$1,078.34
16	185979	1	COMPLETE EV3 PIPE	$1,185.52
17	185980	1	COMPLETE EV4 PIPE	$1,008.50
18	185981	1	COMPLETE EV5 PIPE	$1,008.50
19	186358	1	PIPE FROM POWER UNIT TO BLOCK	$837.98
20	171454	11	UNION	$71.54
21	10261060	22	GASKET	$0.90
22	186299	1	CLAMP	$50.57
23	14305724	1	SCREW	$0.90
24	12601279	1	WASHER		Superseded
25	980001158	1	SENSORS KIT		Unavailable
26	980001161	1	RECYCLE PIPE KIT	$238.73
27	175667	1	TWO-WAY BLOCK	$46.57
28	185267	1	BLOCK SUPPORT BRACKET	$13.64
29	14305124	2	SCREW	$0.90
30	12601274	2	WASHER	$0.90
31	15896214	2	NUT		Unavailable
32	12601279	2	WASHER		Superseded
33	10261060	2	GASKET	$0.90
34	171630	1	UNION	$73.26
35	152954	1	BLEEDER SCREW	$7.90
36	152955	1	BOOT	$7.29
37	171755	1	WASHER	$4.49
38	70001184	1	MALE COUPLING	$492.07
39	172964	1	FEMALE COUPLING	$407.62
40	10441190	1	BRACKET WITH SHEATH	$0.90
41	14058411	1	NUT		Superseded
42	14305124	1	SCREW	$0.90
43	12601274	1	WASHER	$0.90
44	195159	1	SILENCER SHIELD	$514.20
45	196900	1	SHIELD FOR ACTUATOR PROTECTION	$165.65
46	14058411	3	NUT		Superseded
47	12644478	3	WASHER		Unavailable
48	196286	2	STUD - Valid for cars with shield (pos. 45)	$30.55

* Quantity shown indicates the number of pieces used in the diagram.
