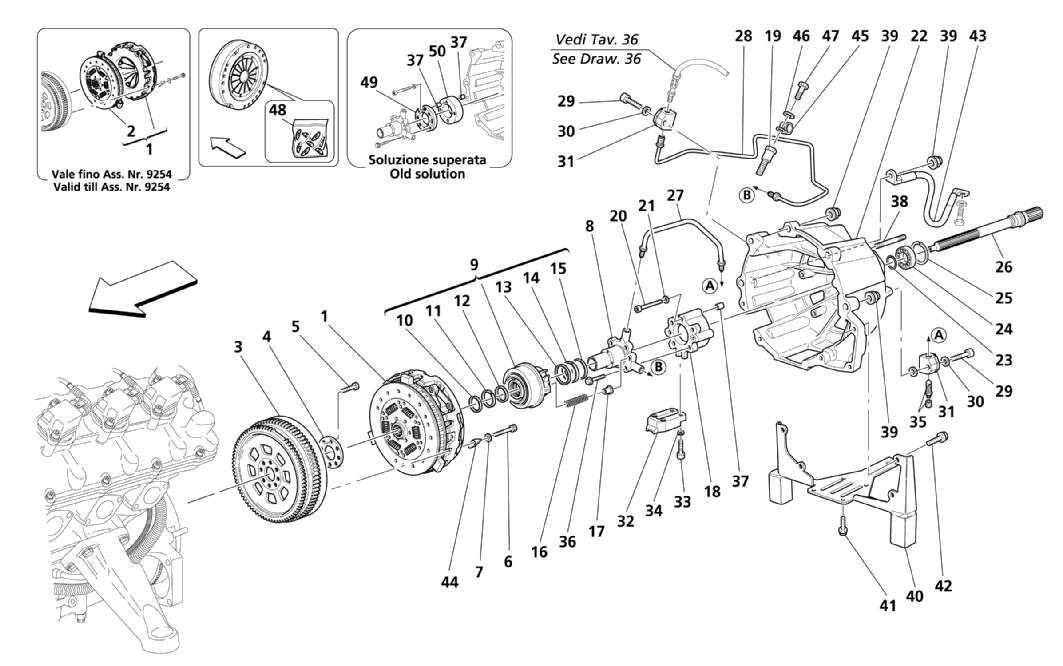

CLUTCH AND CONTROLS -NOT FOR F1

Back to Maserati Spyder 2002+ components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	196021	1	COMPLETE CLUTCH - Valid from car Ass. Nr. 9255		Unavailable
1	191998	1	COMPLETE CLUTCH - Valid till car Ass. Nr. 9254		Superseded
2	188376	1	CLUTCH DOUBLE DISC - Valid till car Ass. Nr. 9254		Unavailable
3	187015	1	COMPLETE ENGINE FLYWHEEL		Unavailable
4	103876	1	FLYWHEEL FIXING WASHER	$13.38
5	188852	8	SCREW		Unavailable
6	185206	9	SCREW	$3.02
7	11194377	9	WASHER		Unavailable
8	182952	1	BEARING SUPPORTING FLANGE	$675.00
9	171886	1	COMPLETE THRUST BEARING		Superseded
10	172970	1	SCRAPER RING	$25.86
11	181839	1	RING		Superseded
12	172972	1	SEAL RING	$25.86
13	154508	1	SEAL RING	$46.57
14	181829	1	RING		Superseded
15	154551	1	SCRAPER RING	$31.04
16	155207	2	PRELOAD SPRING	$5.00
17	155206	2	SPACER FOR SPRING	$4.24
18	190146	1	CLUTCH CONTROL FLANGE SUPPORT - Valid after stock exhaustion of 186389 (pos. 49) and 187703 (pos. 50)	$1,240.63
19	190876	1	STUD	$28.48
20	14306034	4	SCREW		Unavailable
21	12604274	4	WASHER	$0.90
22	184763	1	CLUTCH HOUSING		Unavailable
23	144511	1	STOP RING		Unavailable
24	174470	1	BEARING	$57.83
25	182963	1	STOP RING		Unavailable
26	182587	1	CLUTCH SHAFT	$455.53
27	188864	1	CLUTCH OIL BLEED PIPE	$65.12
28	188863	1	CLUTCH OIL DELIVERY TUBE	$149.90
29	14305434	2	SCREW		Unavailable
30	12604274	2	WASHER	$0.90
31	139471	2	TWO-WAY UNION	$48.29
32	184900	1	F1 SENSOR SUPPORT	$607.38
33	14304424	2	SCREW		Unavailable
34	10519378	2	WASHER		Unavailable
35	121699	1	BLEEDER SCREW	$59.36
36	16286224	4	SCREW	$3.33
37	102725	2	CENTERING DOWEL - (Quantity 4 for cars with old solution)	$1.50
38	13546334	8	STUD	$1.20
39	156462	7	NUT	$2.68
40	191399	1	EXHAUST FRONT SUPPORT - Valid for USA, CDN, J, AUS and cars GB opt. japan version	$301.96
40	187799	1	EXHAUST FRONT SUPPORT - Not for USA, CDN, J, AUS and cars GB opt. japan version	$295.06
41	11730624	4	SCREW		Unavailable
42	16288121	1	SCREW	$5.26
42	16297721	2	SCREW	$3.98
43	182225	1	CABLE FOR ENGINE-FRAME EARTH	$44.84
44	191345	1	BALANCING MASS - Grams 17 - As necessary	$23.71
44	191346	1	BALANCING MASS - Grams 18 - As necessary	$23.71
44	191342	1	BALANCING MASS - Grams 14 - As necessary	$211.12
44	191331	1	BALANCING MASS - Grams 4 - As necessary	$65.93
44	191341	1	BALANCING MASS - Grams 13 - As necessary	$20.30
44	191340	1	BALANCING MASS - Grams 12 - As necessary	$89.97
44	191335	1	BALANCING MASS - Grams 7 - As necessary	$43.20
44	191339	1	BALANCING MASS - Grams 11 - As necessary	$19.49
44	191334	1	BALANCING MASS - Grams 6 - As necessary	$36.54
44	191338	1	BALANCING MASS - Grams 10 - As necessary	$89.97
44	191333	1	BALANCING MASS - Grams 5 - As necessary	$18.51
44	191337	1	BALANCING MASS - Grams 9 - As necessary	$80.39
44	191343	1	BALANCING MASS - Grams 15 - As necessary	$20.30
44	191336	1	BALANCING MASS - Grams 8 - As necessary	$101.50
44	191395	1	BALANCING MASS - Grams 20 - As necessary	$198.13
44	191344	1	BALANCING MASS - Grams 16 - As necessary	$198.13
44	191347	1	BALANCING MASS - Grams 19 - As necessary	$19.49
44	191329	1	BALANCING MASS - Grams 1 - As necessary	$55.05
44	191330	1	BALANCING MASS - Grams 2 - As necessary	$70.16
45	10441190	1	BRACKET WITH SHEATH	$0.90
46	127494	1	WASHER	$0.90
47	10979414	1	SCREW		Unavailable
48	980001166	1	CLUTCH BALANCING KIT		Unavailable
49	186389	1	CLUTCH CONTROL FLANGE SUPPORT - Valid till stock exhaustion - after stock exhaustion replaced by 190146 (pos. 18)	$1,628.62
50	187703	1	SPACER - Valid till stock exhaustion - after stock exhaustion replaced by 190146 (pos. 18)	$1,233.03

* Quantity shown indicates the number of pieces used in the diagram.
