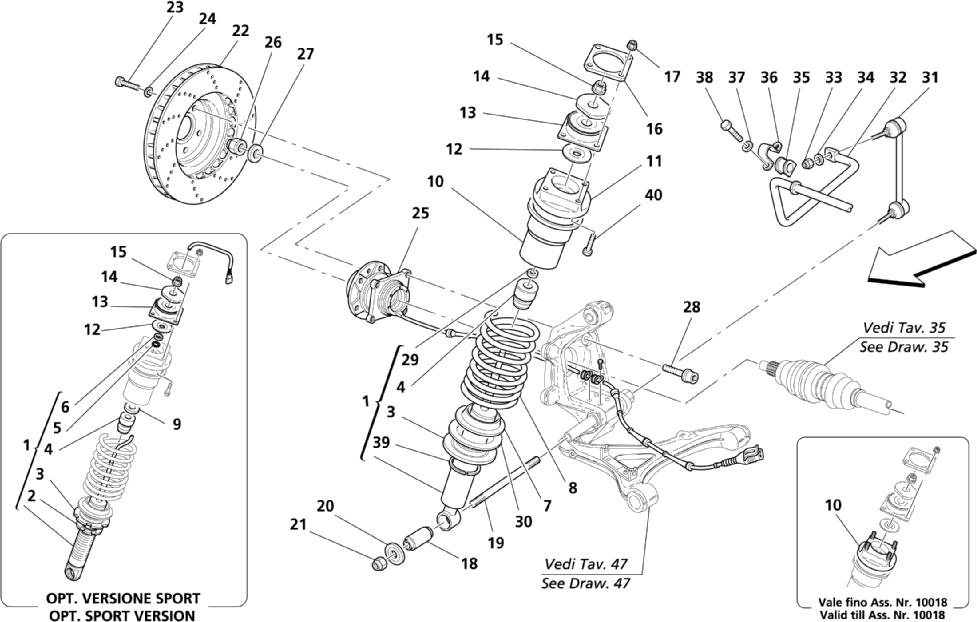

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISK

Back to Maserati Coupe 2002+ components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	182778	2	REAR SHOCK ABSORBER - Optional - Version sport	$2,139.62
1	191391	2	REAR SHOCK ABSORBER - Standard	$617.73
2	174726	2	RING NUT - Optional - Version sport		Unavailable
3	386601380	2	LOWER SPACER - Standard	$125.96
3	183020	2	LOWER SPACER - Optional - Version sport	$681.92
4	387000327	2	SHOCK ABSORBER PAD - Standard	$36.58
4	189997	2	SHOCK ABSORBER PAD - Optional - Version sport	$170.80
5	183594	2	FLEXIBLE RING - Optional - Version sport	$45.90
6	183595	2	BUSHING - Optional - Version sport	$68.86
7	188996	2	LOWER SPACER	$16.54
8	163653	2	SUSPENSION SPRING	$514.20
9	189507	2	SPACER - Optional - Version sport	$28.83
10	188995	2	UPPER SPACER		Unavailable
11	191056	2	SPRING SUPPORT SPACER - Valid till car Ass. Nr. 10018		Unavailable
11	192645	2	SPRING SUPPORT SPACER - Valid from car Ass. Nr. 10019		Unavailable
12	193235	2	WASHER - Standard	$6.05
12	183016	2	WASHER - Optional - Version sport	$33.13
13	183015	2	HYPERBLOCK - Optional - Version sport		Unavailable
13	386600109	2	HYPERBLOCK - Standard	$144.78
14	189110	2	WASHER - Optional - Version sport	$8.28
14	387000340	2	WASHER - Standard	$6.05
15	183417	2	NUT - Optional - Version sport	$7.59
15	137826	2	NUT - Standard	$4.55
16	191055	2	SPACER FOR SHOCK ABSORBER	$54.18
17	14058521	8	NUT	$2.84
18	163918	2	BALL JOINT	$150.10
19	13531634	2	STUD	$36.58
20	387000329	2	CUP	$7.77
21	14048825	2	NUT	$9.74
22	387210351	2	REAR BRAKE DISC - Valid till stock exhaustion - on exhaustion use 192996	$428.74
22	192996	2	REAR BRAKE DISC - Valid after stock exhaustion of 387210351		Unavailable
23	16043421	4	SCREW		Superseded
24	10571779	4	WASHER		Unavailable
25	185564	2	BEARING FOR WHEEL	$1,615.88
26	183320	2	NUT	$10.88
27	183321	2	WASHER		Superseded
28	190723	8	SCREW	$13.09
29	386600329	2	SPACER FOR PAD SUPPORT - Standard	$35.20
30	386601382	2	THICKNESS-MM. 2 - Standard	$4.57
30	386601397	2	THICKNESS-MM. 4 - Standard	$8.02
31	387000126	2	SMALL LINK - Valid till stock exhaustion	$119.69
31	193729	1	SMALL LINK - Valid after stock exhaustion of 387000126		Unavailable
32	188654	1	REAR ANTI-ROLL BAR	$185.14
33	12575621	2	NUT		Superseded
34	13550421	2	WASHER		Unavailable
35	193662	2	RUBBER PAD		Unavailable
36	397050368	2	RETAINER	$6.13
37	10571779	4	WASHER		Unavailable
38	16043321	4	SCREW	$0.90
39	386601381	2	SPACER STOP RING - Standard	$8.47
40	16044224	4	SCREW - Valid from car Ass. Nr. 10019		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
