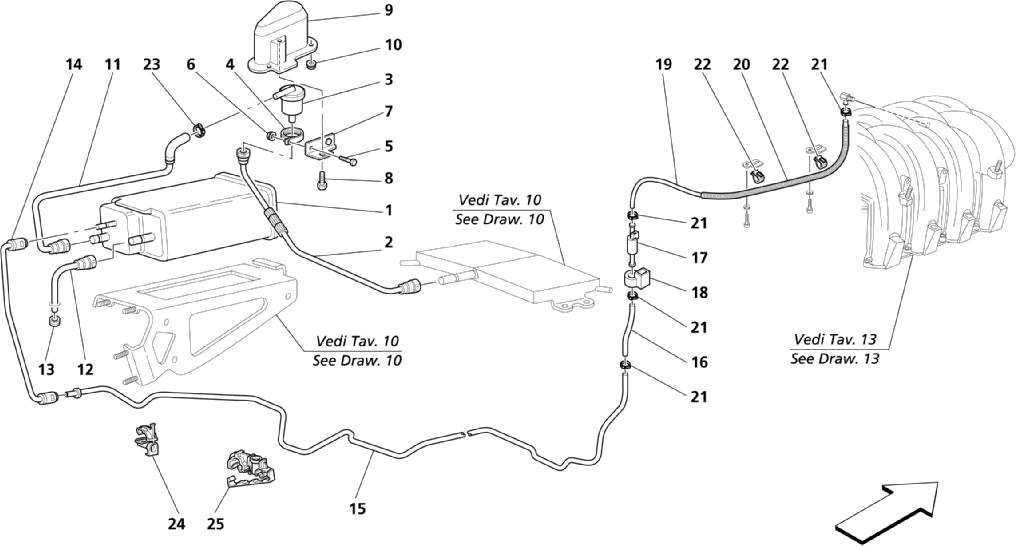

ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN

Go to Split View

ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 185135 *Qty: 1 FUEL VAPOR FILTER $245.50
Location: 2 Prev | Next Part: 181705 *Qty: 1 PIPE FROM DISAREATOR TO ROLL-OVER Superseded
Location: 3 Prev | Next Part: 180573 *Qty: 1 ROLL-OVER VALVE $112.28
Location: 4 Prev | Next Part: 66133600 *Qty: 1 BRACKET WITH SHEATH $9.66
Location: 5 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 14084211 *Qty: 1 NUT $0.90
Location: 7 Prev | Next Part: 66132900 *Qty: 1 ROLL-OVER VALVE FIXING BRACKET $10.96
Location: 8 Prev | Next Part: 10979414 *Qty: 1 SCREW $0.90
Location: 9 Prev | Next Part: 66294500 *Qty: 1 ROLL-OVER VALVE COVER $19.33
Location: 10 Prev | Next Part: 14084211 *Qty: 3 NUT $0.90
Location: 11 Prev | Next Part: 181707 *Qty: 1 PIPE FROM ROLL-OVER TO CANISTER $46.61
Location: 12 Prev | Next Part: 188124 *Qty: 1 PIPE FROM CANISTER TO WHELLHOUSE $27.12
Location: 13 Prev | Next Part: 10396880 *Qty: 1 RING $2.59
Location: 14 Prev | Next Part: 181712 *Qty: 1 PIPE FROM CANISTER TO UNDERFLOOR Superseded
Location: 15 Prev | Next Part: 190519 *Qty: 1 COMPLETE UNDERFLOOR TUBE $41.41
Location: 16 Prev | Next Part: 181703 *Qty: 1 WASHING VALVE INLET TUBE $8.44
Location: 17 Prev | Next Part: 180861 *Qty: 1 WASHING VALVE $32.48
Location: 18 Prev | Next Part: 174623 *Qty: 1 BUFFER FOR SUPPORT $11.13
Location: 19 Prev | Next Part: 181704 *Qty: 1 WASHING VALVE OUTLET PIPE PIPE $31.02
Location: 20 Prev | Next Part: 318720333 *Qty: 1 PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
$7.23
Location: 21 Prev | Next Part: 13432070 *Qty: 4 SCREW COLLAR $0.90
Location: 22 Prev | Next Part: 10441790 *Qty: 2 BRACKET WITH SHEATH
- Not for cars with bracket 190509 - (See draw 13 pos. 24)
$0.90
Location: 22 Prev | Next Part: 178430 *Qty: 2 CLIP
- Valid for cars with bracket 190509 - (See draw 13 pos. 24)
$0.90
Location: 23 Prev | Next Part: 13433370 *Qty: 1 COLLAR FOR SLEEVE $0.94
Location: 24 Prev | Next Part: 187840 *Qty: 1 CLIP
- (Quantity defined during at assembly)
$1.20
Location: 25 Prev | Next Part: 190409 *Qty: 1 CLIP
- (Quantity defined during at assembly)
$5.80

* Quantity shown indicates the number of pieces used in the diagram.
