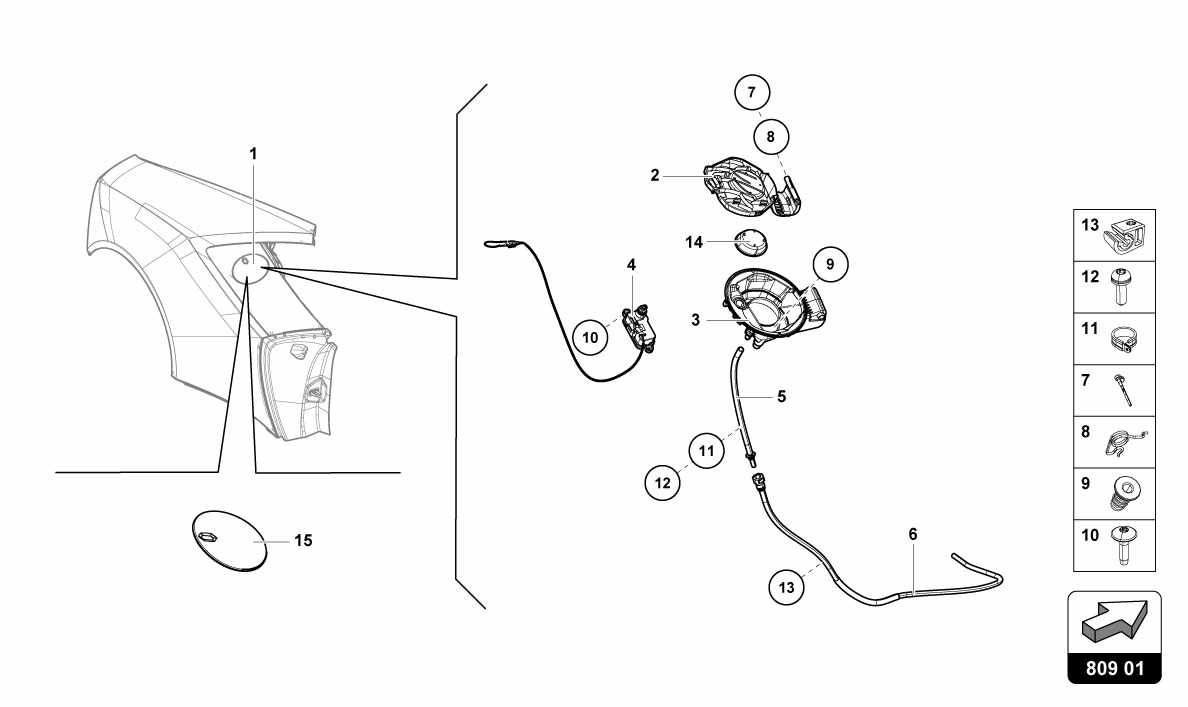

FUEL FILLER FLAP

Go to Split View

FUEL FILLER FLAP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0809999A *Qty: 1 FUEL TANK FILLER $34.61
Location: 2 Prev | Next Part: 4T0809905 *Qty: 1 FUEL FILLER FLAP $23.24
Location: 3 Prev | Next Part: 4T0809907 *Qty: 1 GLOVE COMP.LID OTR $139.22
Location: 4 Prev | Next Part: 4L0862153D *Qty: 1 ACTUATOR $29.68
Location: 5 Prev | Next Part: 4T0809937 *Qty: 1 HOSE $5.64
Location: 6 Prev | Next Part: 4T0809978 *Qty: 1 HOSE $18.72
Location: 7 Prev | Next Part: 4T0809910 *Qty: 1 CONNECTOR $8.13
Location: 8 Prev | Next Part: 4T0809931 *Qty: 1 SPRING $5.48
Location: 9 Prev | Next Part: 470103226 *Qty: 4 ADAPTER $5.96
Location: 10 Prev | Next Part: N90732103 *Qty: 4 SCREW (TP4X16) $0.90
Location: 11 Prev | Next Part: N0206015 *Qty: 4 CLIP $1.35
Location: 12 Prev | Next Part: *Qty: 4 SCREW Call
Location: 13 Prev | Next Part: 1H9609738A *Qty: 1 SUPPORT $4.06
Location: 14 Prev | Next Part: 4T0809974 *Qty: 1 GASKET $6.73
Location: 15 Prev | Next Part: 4T0809906A *Qty: 1 FUEL FILLER FLAP ASSEMBLY $57.84

* Quantity shown indicates the number of pieces used in the diagram.
