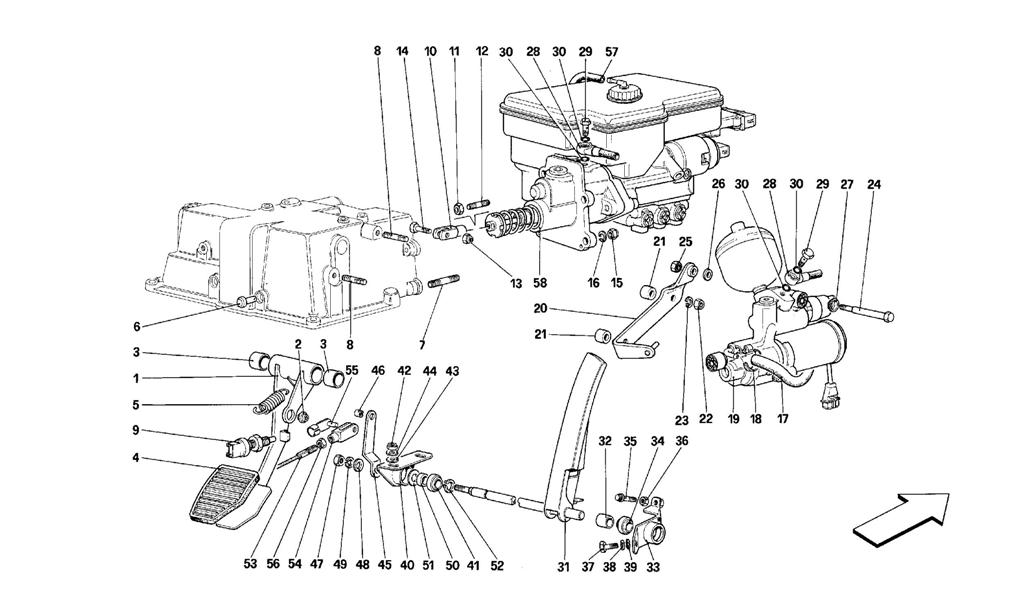

THROTTLE PEDAL AND BRAKE HYDRAULIC SYSTEM -VALID FOR RHD-

Go to Split View

THROTTLE PEDAL AND BRAKE HYDRAULIC SYSTEM -VALID FOR RHD-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 140854 *Qty: 1 Brake pedal lever $206.30
Location: 2 Prev | Next Part: 109407 *Qty: 1 Ball Joint $24.12
Location: 3 Prev | Next Part: 103163 *Qty: 2 Bush $3.80
Location: 4 Prev | Next Part: 106950 *Qty: 1 Brake pedal guard $27.54
Location: 5 Prev | Next Part: 101305 *Qty: 1 Spring $5.25
Location: 6 Prev | Next Part: 129612 *Qty: 1 Spring anchor pin $2.68
Location: 7 Prev | Next Part: 13543424 *Qty: 4 Stud bolt $0.90
Location: 8 Prev | Next Part: 13517121 *Qty: 2 Stud bolt Unavailable
Location: 9 Prev | Next Part: 133555 *Qty: 1 Stop control switch $31.75
Location: 10 Prev | Next Part: 10007871 *Qty: 1 Fork $17.31
Location: 11 Prev | Next Part: 16102314 *Qty: 1 Nut Unavailable
Location: 12 Prev | Next Part: 13517121 *Qty: 1 Stud bolt Unavailable
Location: 13 Prev | Next Part: 16104411 *Qty: 1 Nut $0.90
Location: 14 Prev | Next Part: 130926 *Qty: 1 Screw $7.90
Location: 15 Prev | Next Part: 16104121 *Qty: 4 Nut Superseded
Location: 16 Prev | Next Part: 12601374 *Qty: 4 Washer $0.90
Location: 17 Prev | Next Part: 143313 *Qty: 1 Pipe from pump to tank $4.42
Location: 18 Prev | Next Part: 157934 *Qty: 2 Clamp Superseded
Location: 20 Prev | Next Part: 138185 *Qty: 1 Brake pump support bracket $217.33
Location: 21 Prev | Next Part: 129635 *Qty: 2 Spacer $2.23
Location: 22 Prev | Next Part: 16100821 *Qty: 2 Nut Unavailable
Location: 23 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 24 Prev | Next Part: 129636 *Qty: 1 Screw $5.04
Location: 25 Prev | Next Part: 102948 *Qty: 1 Nut Superseded
Location: 26 Prev | Next Part: 121558 *Qty: 1 Washer $1.99
Location: 27 Prev | Next Part: 130861 *Qty: 1 Washer $4.07
Location: 28 Prev | Next Part: 131872 *Qty: 1 Pipe from pump to antiskid switching unit Superseded
Location: 29 Prev | Next Part: 131873 *Qty: 2 Union $6.26
Location: 30 Prev | Next Part: 70000510 *Qty: 4 Gasket Unavailable
Location: 31 Prev | Next Part: 138187 *Qty: 1 Throttle pedal $173.26
Location: 32 Prev | Next Part: 117991 *Qty: 1 Spacer $3.00
Location: 33 Prev | Next Part: 116526 *Qty: 1 Support $103.94
Location: 34 Prev | Next Part: 122430 *Qty: 1 Ball joint $186.65
Location: 35 Prev | Next Part: 116527 *Qty: 1 Screw $9.15
Location: 36 Prev | Next Part: 16102314 *Qty: 1 Nut Unavailable
Location: 37 Prev | Next Part: 16043221 *Qty: 2 Screw $0.90
Location: 38 Prev | Next Part: 127496 *Qty: 2 Washer $0.90
Location: 39 Prev | Next Part: 10519624 *Qty: 2 Washer $0.90
Location: 40 Prev | Next Part: 116528 *Qty: 1 Support $100.17
Location: 41 Prev | Next Part: 122430 *Qty: 1 Ball joint $186.65
Location: 42 Prev | Next Part: 15896214 *Qty: 2 Nut Unavailable
Location: 43 Prev | Next Part: 12643724 *Qty: 2 Washer Superseded
Location: 44 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 45 Prev | Next Part: 132206 *Qty: 1 Lever $17.95
Location: 46 Prev | Next Part: 132212 *Qty: 1 Bush $24.76
Location: 47 Prev | Next Part: 16100821 *Qty: 1 Nut Unavailable
Location: 48 Prev | Next Part: 10519624 *Qty: 1 Washer $0.90
Location: 49 Prev | Next Part: 127496 *Qty: 1 Washer $0.90
Location: 50 Prev | Next Part: 116529 *Qty: 1 Spacer $8.99
Location: 51 Prev | Next Part: 105929 *Qty: 1 Washer -Thick. mm. 0,3- $0.90
Location: 51 Prev | Next Part: 105930 *Qty: 1 Washer -Thick. mm. 0,5- $2.05
Location: 51 Prev | Next Part: 105931 *Qty: 1 Washer -Thick. mm. 0,7- $0.90
Location: 52 Prev | Next Part: 11066075 *Qty: 1 Seeger ring $0.90
Location: 53 Prev | Next Part: 138429 *Qty: 1 Throttle control cable $58.75
Location: 54 Prev | Next Part: 132290 *Qty: 1 Fork $16.06
Location: 55 Prev | Next Part: 132291 *Qty: 1 Pin with spring $2.54
Location: 56 Prev | Next Part: 10725011 *Qty: 1 Nut $1.83
Location: 57 Prev | Next Part: 136192 *Qty: 1 Breathing Pipe $1.29

* Quantity shown indicates the number of pieces used in the diagram.
