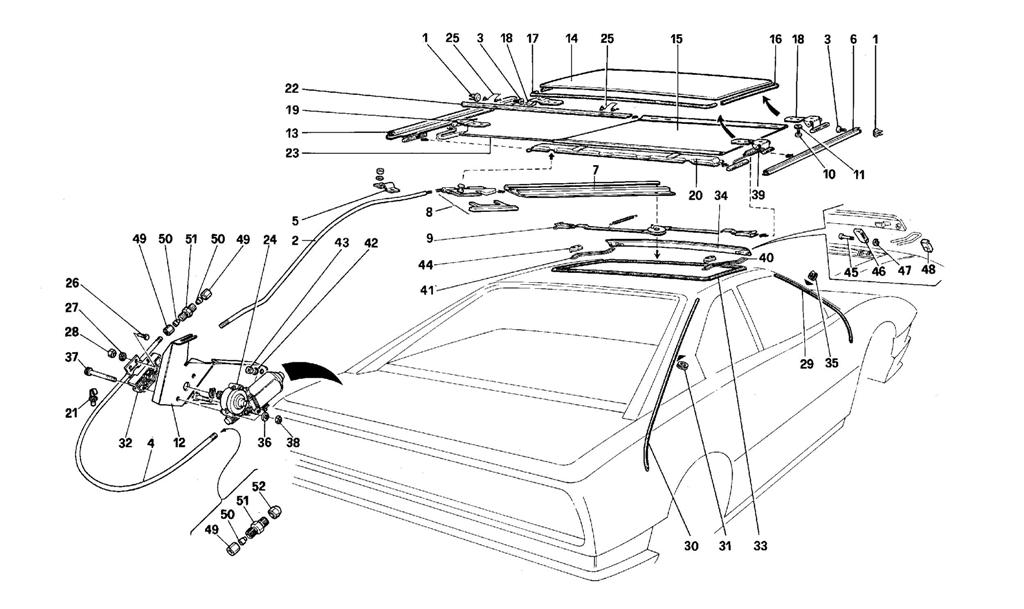

SUNROOF - COUPE -

Go to Split View

SUNROOF - COUPE -

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60911800 *Qty: 2 Nut screw $0.90
Location: 2 Prev | Next Part: 62447100 *Qty: 1 Tube $146.37
Location: 3 Prev | Next Part: 60911900 *Qty: 2 Screw Unavailable
Location: 4 Prev | Next Part: 62447000 *Qty: 1 Tube $227.02
Location: 5 Prev | Next Part: 60916100 *Qty: 3 Bracket $9.32
Location: 6 Prev | Next Part: 60964700 *Qty: 1 R.H. front guide Unavailable
Location: 7 Prev | Next Part: 61310500 *Qty: 1 Guide $32.63
Location: 8 Prev | Next Part: 60970200 *Qty: 1 Cable $985.61
Location: 9 Prev | Next Part: 60976600 *Qty: 1 Leverage $549.19
Location: 10 Prev | Next Part: 60965100 *Qty: 12 Screw to front and rear plate $0.90
Location: 11 Prev | Next Part: 60965200 *Qty: 12 Spring washer $0.90
Location: 12 Prev | Next Part: 62446600 *Qty: 1 Plate to fix. motor $58.75
Location: 13 Prev | Next Part: 60964600 *Qty: 1 L.H. front guide Unavailable
Location: 14 Prev | Next Part: 60913300 *Qty: 1 Sliding roof, complete $566.15
Location: 15 Prev | Next Part: 61030000 *Qty: 1 Inner covering $866.79
Location: 16 Prev | Next Part: 60963100 *Qty: 1 Front, side gasket Unavailable
Location: 17 Prev | Next Part: 60963200 *Qty: 1 Rear gasket Unavailable
Location: 18 Prev | Next Part: 60963500 *Qty: 2 Front fuide plate $574.94
Location: 19 Prev | Next Part: 60963600 *Qty: 1 Rear left guide plate $314.64
Location: 20 Prev | Next Part: 60913600 *Qty: 1 Mobile traverse Unavailable
Location: 21 Prev | Next Part: 14573480 *Qty: 1 Cable terminal $0.90
Location: 22 Prev | Next Part: 60963900 *Qty: 1 Guide $303.24
Location: 23 Prev | Next Part: 60964000 *Qty: 1 Rod $5.26
Location: 24 Prev | Next Part: 62446800 *Qty: 1 Motor $967.56
Location: 25 Prev | Next Part: 60963800 *Qty: 2 Spring $106.41
Location: 26 Prev | Next Part: 10444621 *Qty: 2 Screw $0.90
Location: 27 Prev | Next Part: 10615279 *Qty: 2 Washer Unavailable
Location: 28 Prev | Next Part: 10794011 *Qty: 2 Nut $0.90
Location: 29 Prev | Next Part: 60915600 *Qty: 2 Front drain tube $10.89
Location: 30 Prev | Next Part: 60915700 *Qty: 2 Rear drain tube $5.45
Location: 31 Prev | Next Part: 10396680 *Qty: 2 Insulating ring for rear tubes $1.55
Location: 32 Prev | Next Part: 62458900 *Qty: 1 Block Unavailable
Location: 33 Prev | Next Part: 60962900 *Qty: 1 Gasket $227.89
Location: 34 Prev | Next Part: 61077200 *Qty: 1 Spoyler $772.48
Location: 35 Prev | Next Part: 10396280 *Qty: 2 Insulating ring for front tubes $3.68
Location: 36 Prev | Next Part: 127494 *Qty: 3 Washer $0.90
Location: 37 Prev | Next Part: 62459000 *Qty: 2 Screw $0.90
Location: 38 Prev | Next Part: 15896214 *Qty: 3 Nut $0.90
Location: 39 Prev | Next Part: 60963700 *Qty: 1 R.H. plate $314.64
Location: 40 Prev | Next Part: 61105400 *Qty: 1 R.H. spring $42.96
Location: 41 Prev | Next Part: 61105300 *Qty: 1 L.H. spring $31.77
Location: 42 Prev | Next Part: 12644424 *Qty: 2 Washer $0.90
Location: 43 Prev | Next Part: 102948 *Qty: 2 Nut Superseded
Location: 44 Prev | Next Part: 61105600 *Qty: 2 Block $4.10
Location: 45 Prev | Next Part: 61105900 *Qty: 2 Pin $4.92
Location: 46 Prev | Next Part: 61104400 *Qty: 2 Block $15.70
Location: 47 Prev | Next Part: 11087476 *Qty: 2 Seeger $6.39
Location: 48 Prev | Next Part: 61105500 *Qty: 2 Block $4.92
Location: 49 Prev | Next Part: 62493500 *Qty: 3 Nut $0.90
Location: 50 Prev | Next Part: 62493600 *Qty: 3 Ogiva $6.51
Location: 51 Prev | Next Part: 62493700 *Qty: 2 Union $28.40
Location: 52 Prev | Next Part: 62493800 *Qty: 1 Cup nut $38.20

* Quantity shown indicates the number of pieces used in the diagram.
