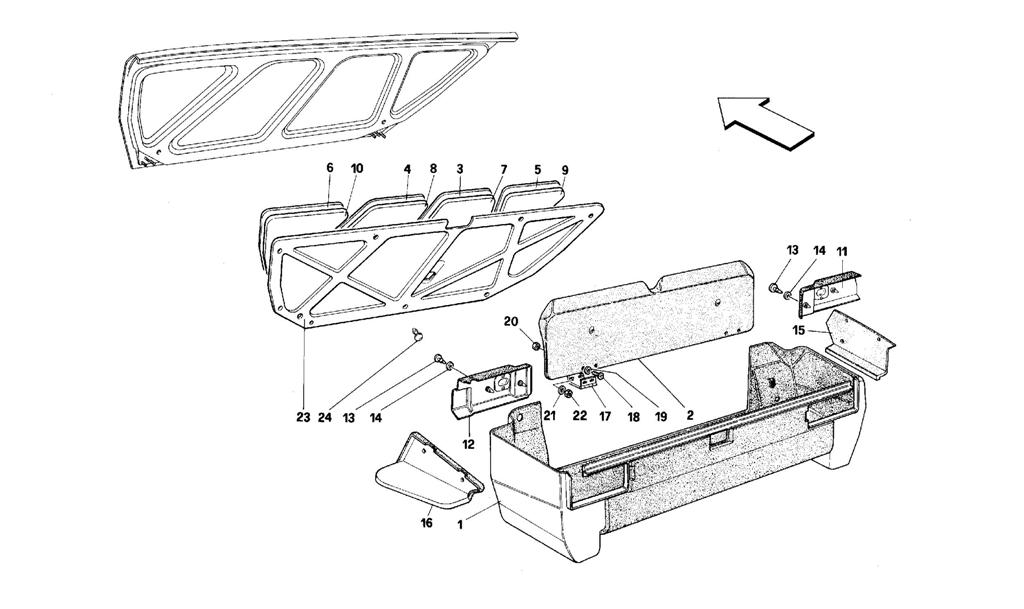

LUGGAGE COMPARTMENT LID AND TAPESTRY

Go to Split View

LUGGAGE COMPARTMENT LID AND TAPESTRY

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62861900 *Qty: 1 Carpet -Cabriolet- -Valid for F.E. $1,054.78
Location: 1 Prev | Next Part: 62862000 *Qty: 1 Carpet -Coup?- -Valid for F.E. $645.48
Location: 1 Prev | Next Part: 62576600 *Qty: 1 Carpet -Coup?- -Not for F.E. $1,001.05
Location: 1 Prev | Next Part: 62678700 *Qty: 1 Carpet -Cabriolet- -Not for F.E. $1,021.82
Location: 2 Prev | Next Part: 62861800 *Qty: 1 Cover -Cabriolet - Valid for F.E. $355.02
Location: 2 Prev | Next Part: 62547700 *Qty: 1 Cover -Coup?- $502.47
Location: 2 Prev | Next Part: 62681700 *Qty: 1 Cover -Cabriolet - Not for F.E. $223.64
Location: 3 Prev | Next Part: 61898500 *Qty: 1 Insulation $16.03
Location: 4 Prev | Next Part: 61898600 *Qty: 1 Insulation $16.03
Location: 5 Prev | Next Part: 61898700 *Qty: 1 Insulation $69.37
Location: 6 Prev | Next Part: 61898800 *Qty: 1 Insulation $69.37
Location: 7 Prev | Next Part: 61898900 *Qty: 1 Insulation $150.77
Location: 8 Prev | Next Part: 61899000 *Qty: 1 Insulation $150.77
Location: 9 Prev | Next Part: 61899100 *Qty: 1 Insulation $142.11
Location: 10 Prev | Next Part: 61899200 *Qty: 1 Insulation $16.41
Location: 11 Prev | Next Part: 62589400 *Qty: 1 R.H. protection -Coup?- $128.31
Location: 11 Prev | Next Part: 62681900 *Qty: 1 R.H. protection -Cabriolet $155.17
Location: 12 Prev | Next Part: 61945300 *Qty: 1 L.H. protection -Coup?- -Valid for TA $97.04
Location: 12 Prev | Next Part: 62589500 *Qty: 1 L.H. protection -Coup?- -Not for TA $128.31
Location: 12 Prev | Next Part: 62682000 *Qty: 1 L.H. protection -Cabriolet $155.17
Location: 13 Prev | Next Part: 61866800 *Qty: 4 Protection pin $83.95
Location: 14 Prev | Next Part: 61866900 *Qty: 4 Rubber to stop pin $2.21
Location: 15 Prev | Next Part: 62682400 *Qty: 1 R.H. side shield -Cabriolet- $73.26
Location: 16 Prev | Next Part: 62682500 *Qty: 1 L.H. side shield -Cabriolet- $73.26
Location: 17 Prev | Next Part: 62574400 *Qty: 2 Hinge $33.35
Location: 18 Prev | Next Part: 20297602 *Qty: 4 Screw $11.75
Location: 19 Prev | Next Part: 14496201 *Qty: 4 Washer Unavailable
Location: 20 Prev | Next Part: 10794011 *Qty: 4 Nut Unavailable
Location: 21 Prev | Next Part: 127494 *Qty: 4 Washer $0.90
Location: 22 Prev | Next Part: 15896214 *Qty: 4 Nut Unavailable
Location: 23 Prev | Next Part: 61899300 *Qty: 1 Under bonnet carpet $246.82
Location: 24 Prev | Next Part: 14592787 *Qty: 9 Button to fix. carpet Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
