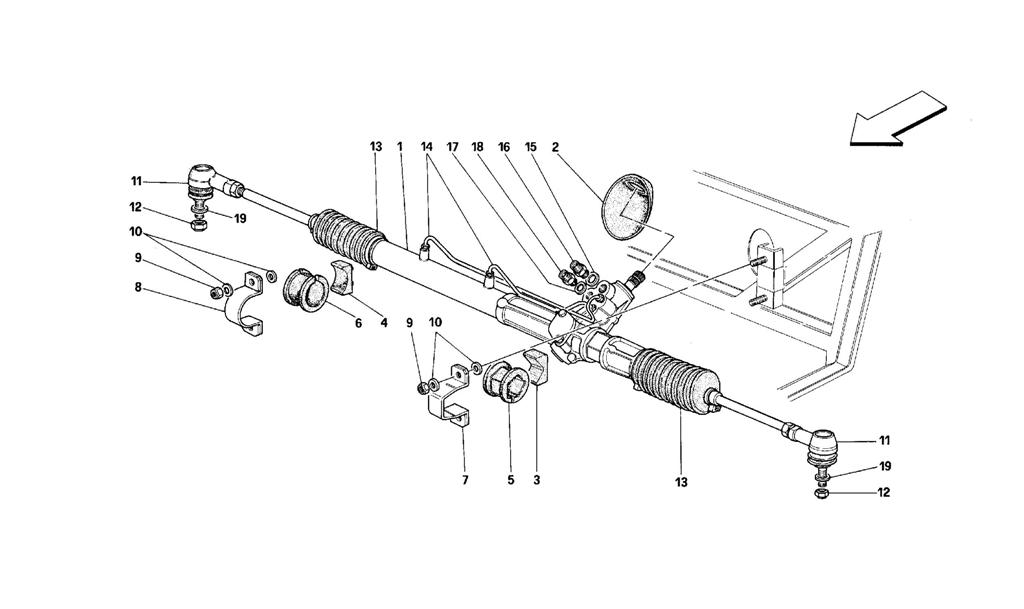

HYDRAULIC STEERING BOX AND LINKAGE

Go to Split View

HYDRAULIC STEERING BOX AND LINKAGE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 146710 *Qty: 1 Servocontrolled box -Valid for GD -Valid till stock exhaustion Call
Location: 1 Prev | Next Part: 154913 *Qty: 1 Servocontrolled box -Not for GD $4,147.79
Location: 1 Prev | Next Part: 154914 *Qty: 1 Servocontrolled box -Valid for GD -Valid after stock exhaustion of 146710 $3,207.34
Location: 2 Prev | Next Part: 137525 *Qty: 1 Protection Call
Location: 3 Prev | Next Part: 137531 *Qty: 1 Pilot side small block -Valid from car No. 80585 $126.39
Location: 3 Prev | Next Part: 141436 *Qty: 1 Pilot side small block -Valid till car No. 80551 $5.05
Location: 4 Prev | Next Part: 141542 *Qty: 1 Passenger side small block -Valid till car No. 80551 $5.05
Location: 4 Prev | Next Part: 137532 *Qty: 1 Passenger side small block -Valid from car No. 80585 $6.27
Location: 5 Prev | Next Part: 137527 *Qty: 1 Pilot side pad $78.52
Location: 6 Prev | Next Part: 137528 *Qty: 1 Passenger side pad Call
Location: 7 Prev | Next Part: 137529 *Qty: 1 Pilot side bracket $71.64
Location: 8 Prev | Next Part: 137530 *Qty: 1 Passenger side bracket $49.32
Location: 9 Prev | Next Part: 104030 *Qty: 4 Nut $0.90
Location: 10 Prev | Next Part: 117311 *Qty: 8 Washer $0.90
Location: 11 Prev | Next Part: 103592 *Qty: 2 Ball joint $94.04
Location: 12 Prev | Next Part: 134287 *Qty: 2 Nut $1.77
Location: 13 Prev | Next Part: 70000575 *Qty: 1 Bellows replacement kit $101.26
Location: 14 Prev | Next Part: 70000576 *Qty: 1 Pipes replacement kit $48.45
Location: 15 Prev | Next Part: 10257060 *Qty: 1 Gasket $0.90
Location: 16 Prev | Next Part: 138813 *Qty: 1 Union for tank return pipe $39.97
Location: 17 Prev | Next Part: 10280060 *Qty: 1 Gasket $0.90
Location: 18 Prev | Next Part: 138749 *Qty: 1 Union for pipe from pump $84.60
Location: 19 Prev | Next Part: 122238 *Qty: 2 Washer $5.96

* Quantity shown indicates the number of pieces used in the diagram.
