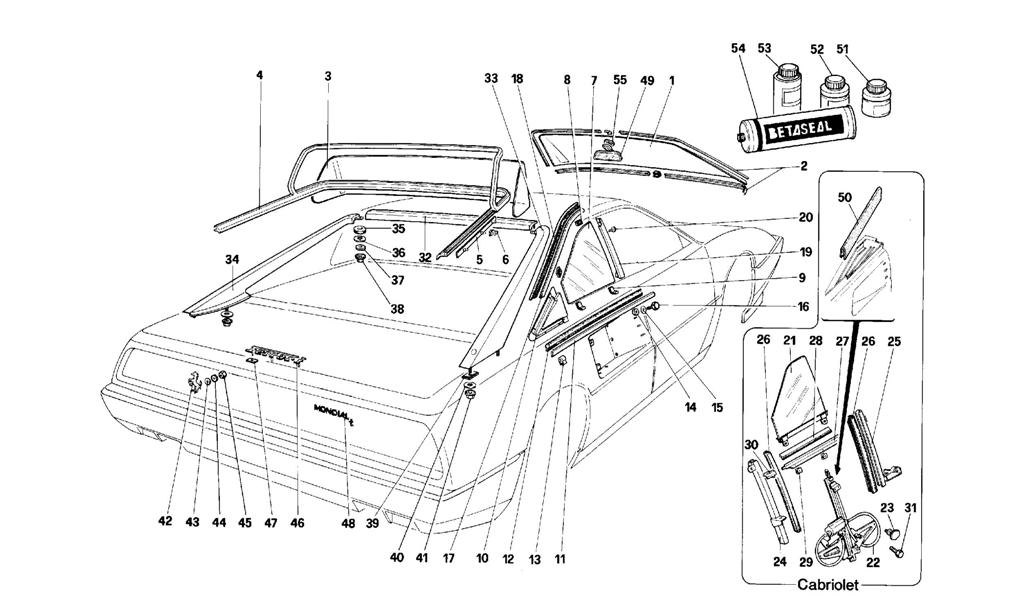

GLASSES AND EXTERNAL FINISHING

GLASSES AND EXTERNAL FINISHING

Location Part # Quantity* Description Price Add To Cart
1 63229600 1 Windshield with mirror molding Unavailable
2 60998800 1 Molding assy for windshield Unavailable
3 61896400 1 Rear window -Coup?- Unavailable
4 60854400 1 Window gasket -Coup?- $911.98
5 60846900 2 Molding to fix. window gasket -Coup? $73.18
6 60109907 6 Spring -Coup?- $3.00
7 60637500 1 R.H. glass -Coup?- $453.76
7 60637600 1 L.H. glass -Coup?- $758.53
8 60743800 4 Upper grommet -Coup?- $0.99
9 60743700 4 Lower grommet -Coup?- Unavailable
10 61947500 1 R.H. flap -Coup?- $275.78
10 61944900 1 L.H. flap -Coup?- $246.14
11 62469700 1 R.H. lower molding -Coup? $159.17
11 62469800 1 L.H. lower molding -Coup? $158.99
12 60664800 2 Lower gasket -Coup? $18.11
13 4211210 6 Clip -Coup?- $7.69
14 62790300 4 Nut -Coup?- $0.90
15 10519281 4 Washer -Coup?- Unavailable
16 62470100 4 Screw -Coup?- $3.19
17 60665100 1 R.H. upper molding -Coup? $75.52
17 60665200 1 L.H. upper molding -Coup? $73.69
18 60970600 2 Upper gasket -Coup? $5.79
19 60671600 1 Molding for R.H. post. -Coup? $98.46
19 60671700 1 Molding for L.H. post. -Coup? Unavailable
20 15692178 6 Screw -Coup?- $0.90
21 61757200 1 R.H. glass -Cabriolet- $225.27
21 61757300 1 L.H. glass -Cabriolet- $225.27
22 61703000 1 R.H. window motor -Cabriolet Unavailable
22 61703100 1 L.H. window motor -Cabriolet $5,951.94
23 61726000 2 Pin -Cabriolet $15.37
24 61294200 1 R.H. rear guide -Cabriolet- $50.12
24 61294300 1 L.H. rear guide -Cabriolet- $305.76
25 61294000 1 R.H. front guide -Cabriolet- $481.52
25 61294100 1 L.H. front guide -Cabriolet- $266.58
26 61295000 4 Gasket -Cabriolet- $8.79
27 61297800 1 L.H. molding -Cabriolet- $80.88
27 61297700 1 R.H. molding -Cabriolet- $125.09
28 62506300 2 Gasket -Cabriolet- $6.64
29 4211210 4 Spring -Cabriolet- $7.69
30 61424800 1 Terminal R.H. molding -Cabriolet $3.82
30 61424900 1 Terminal L.H. molding -Cabriolet Unavailable
31 13835871 4 Screw to fix. window motor -Cabriolet $2.35
32 60578100 1 Rear rubber for roof -Coup? Unavailable
33 60578200 1 Rubber for R.H. fins -Coup?- $808.85
34 60578300 1 Rubber for L.H. fins -Coup?- Unavailable
35 60920000 3 Rubber washer -Coup?- $6.41
36 60580900 3 Rubber washer -Coup?- $2.35
37 12643724 3 Washer -Coup?- Superseded
38 13832101 3 Nut -Coup?- Unavailable
39 60995400 4 Gasket -Coup?- $16.85
40 12643724 4 Washer -Coup?- Superseded
41 13832101 4 Nut -Coup?- Unavailable
42 60032109 1 Rear horse $74.95
43 60995100 4 Gasket $3.25
44 12639401 2 Washer Unavailable
45 61002200 2 Nut Unavailable
46 61025000 1 Ferrari name $88.49
47 60324506 2 Clip Superseded
48 62656400 1 Adhesive Mondial t name $87.39
49 62876100 1 Mirror $136.72
50 61440000 2 Glass protection flat band $12.83
51 62864800 2 Black primer for glass Unavailable
52 62864900 2 Black primer for paint Unavailable
53 62864700 1 Degrease primer Unavailable
54 63301500 2 HV3 betaseal adhesive Unavailable
55 63012600 1 Gasket Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
