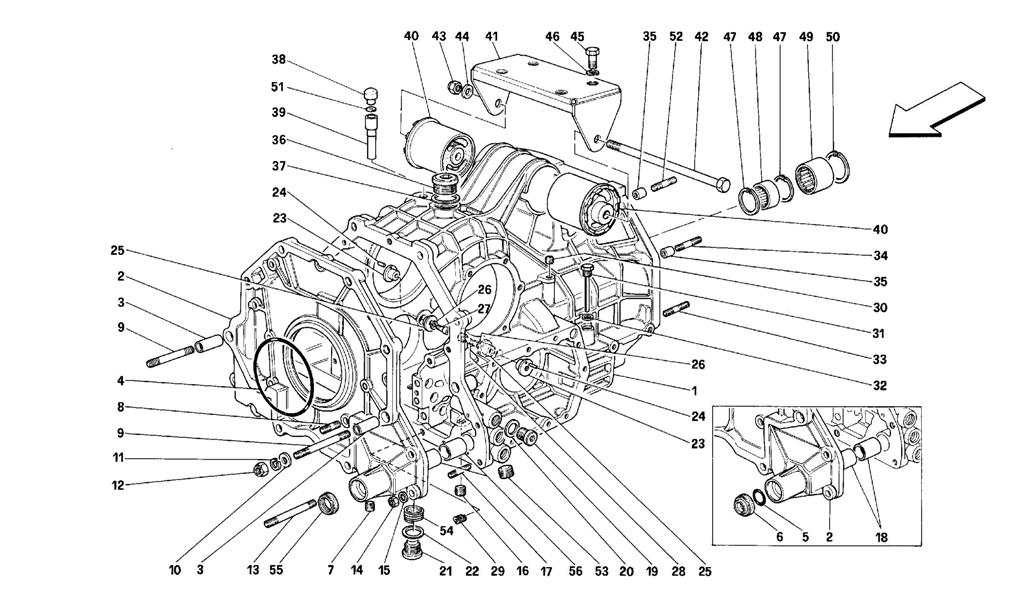

GEARBOX HOUSING AND INTERM. CASING -VALID FOR CARS WITH 3P

GEARBOX HOUSING AND INTERM. CASING -VALID FOR CARS WITH 3P

Location Part # Quantity* Description Price Add To Cart
- 146950 1 Intermediate body -Valid from gearbox No. 569 and for CH No.171 till gearbox No. 694 and for CH Unavailable
- 149584 1 Complete intermediate body -Valid from gearbox No. 695 and for CH from gearbox No. 188 and after $1,618.19
- 156299 1 Gearchange box and differential gear complete -Valid for gearbox with flange -Part. 12 Draw. 37 $7,081.39
- 143280 1 Gearchange box and differential gear complete -Not for gearbox with flange -Part. 12 Draw. 37 -N $7,061.88
3 131749 2 Dowel $5.58
4 131736 1 Seal ring $5.42
5 105140 1 Seal ring -Valid till gearbox No. 694 and for CH till gearbox No.187 Superseded
6 131886 1 Gasket -Valid till gearbox No. 694 and for CH till gearbox No.187 $25.78
7 10269550 1 Plug Unavailable
8 13543124 1 Stud bolt Unavailable
9 13547535 2 Stud bolt $1.26
10 14496621 2 Washer Unavailable
11 127497 2 Washer $0.90
12 133988 2 Nut Unavailable
13 13544524 1 Stud bolt $56.47
14 133989 14 Nut $0.90
15 12601374 14 Washer $0.90
16 10269550 2 Plug Unavailable
17 13543524 13 Stud bolt Unavailable
18 112153 1 Bush -Valid till gearbox No. 694 and for CH till gearbox No. 187 $4.34
19 10273140 3 Plug $3.21
20 10259960 3 Gasket $0.90
21 104280 1 Plug $8.73
22 10263460 1 Gasket Superseded
23 131756 2 Threaded bush $33.76
24 14159470 2 Pin $6.54
25 131757 2 Bush $13.70
26 10569273 2 Washer Unavailable
27 14305224 2 Screw Unavailable
28 14305327 1 Screw $1.12
29 13526170 2 Heli-coil $6.52
30 14326050 3 Plug $1.66
31 140201 1 Oil level rod Unavailable
32 10261060 1 Gasket $0.90
33 13543424 5 Stud bolt Unavailable
34 13543921 1 Stud bolt -Valid till gearbox No. 24980 -For clutch housing 143279 $1.22
34 13543524 1 Stud bolt -Valid from gearbox No. 24981 - For clutch housing 150463 Unavailable
35 100041 2 Dowel $8.91
36 10276140 1 Plug $39.34
37 10265060 1 Gasket $2.19
38 13414691 1 Breather $14.90
39 142873 1 Brather extension $7.41
40 139230 2 Gearchange support pad $800.92
41 134601 1 Gearchange support bracket $102.29
42 134512 1 Screw $20.87
43 16105125 1 Nut Unavailable
44 14496701 1 Washer Unavailable
45 15970631 4 Screw $4.43
46 127497 4 Washer $0.90
47 131958 2 Bearing seal ring $1.00
48 131049 1 Bearing for driving shaft $54.69
49 131050 1 Bearing for clutch shaft $148.80
50 103096 1 Bearing seal ring $2.58
51 13415400 1 Disc Unavailable
52 13543721 1 Stud bolt Unavailable
53 14326050 1 Plug $1.66
54 112254 1 Heli-Coil $4.85
55 146306 1 Gasket -Valid from transmission No. 695 and for CH from gearbox No. 188 $2.52
56 149907 2 Bush -Valid from transmission No. 695 and for CH from gearbox No. 188 $42.22

* Quantity shown indicates the number of pieces used in the diagram.
