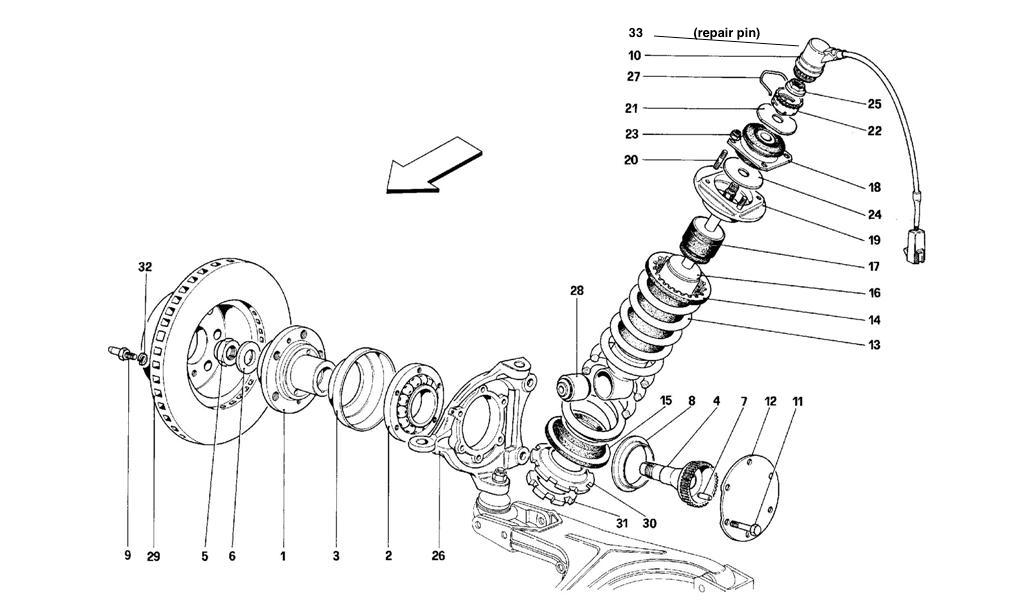

FRONT SUSP. - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSP. - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 131738 *Qty: 2 Front wheel hub $1,646.32
Location: 2 Prev | Next Part: 112799 *Qty: 2 Bearing $1,060.15
Location: 3 Prev | Next Part: 112823 *Qty: 2 Bearing cover Unavailable
Location: 4 Prev | Next Part: 138426 *Qty: 2 Stay bolt toothed wheel $185.89
Location: 5 Prev | Next Part: 124642 *Qty: 2 Nut $32.46
Location: 6 Prev | Next Part: 124464 *Qty: 2 Washer $32.01
Location: 7 Prev | Next Part: 13909870 *Qty: 2 Pin Unavailable
Location: 8 Prev | Next Part: 131279 *Qty: 2 Protection ring Unavailable
Location: 9 Prev | Next Part: 104370 *Qty: 4 Screw $0.90
Location: 10 Prev | Next Part: 137831 *Qty: 2 Actuator $2,048.29
Location: 11 Prev | Next Part: 14238931 *Qty: 12 Screw $5.26
Location: 12 Prev | Next Part: 131278 *Qty: 2 Cover $13.67
Location: 13 Prev | Next Part: 143042 *Qty: 2 Suspension spring -Sold in pair $121.68
Location: 14 Prev | Next Part: 113582 *Qty: 2 Upper spacer $124.63
Location: 15 Prev | Next Part: 113581 *Qty: 2 Inner spacer $25.09
Location: 16 Prev | Next Part: 140851 *Qty: 2 Shock absorber -Sold in pair $869.07
Location: 17 Prev | Next Part: 137827 *Qty: 2 Pad Unavailable
Location: 18 Prev | Next Part: 114812 *Qty: 2 Hyperblock $160.16
Location: 19 Prev | Next Part: 151547 *Qty: 2 Cup, spring retainer $42.45
Location: 20 Prev | Next Part: 13543324 *Qty: 8 Stud $3.61
Location: 21 Prev | Next Part: 137825 *Qty: 2 Washer $1.51
Location: 22 Prev | Next Part: 137824 *Qty: 2 Support Unavailable
Location: 23 Prev | Next Part: 16104121 *Qty: 8 Nut Superseded
Location: 24 Prev | Next Part: 114815 *Qty: 2 Washer $2.04
Location: 25 Prev | Next Part: 137826 *Qty: 2 Nut $3.78
Location: 26 Prev | Next Part: 130056 *Qty: 1 Stub axle, right Unavailable
Location: 26 Prev | Next Part: 130057 *Qty: 1 Stub axle, left $784.05
Location: 27 Prev | Next Part: 142079 *Qty: 2 Spring $7.90
Location: 28 Prev | Next Part: 130516 *Qty: 2 Estendblock $37.43
Location: 29 Prev | Next Part: 117185 *Qty: 2 Brake disc $637.93
Location: 30 Prev | Next Part: 155086 *Qty: 2 Pad $86.00
Location: 31 Prev | Next Part: 141860 *Qty: 2 Ring nut $65.00
Location: 32 Prev | Next Part: 127496 *Qty: 4 Washer $0.90
Location: 33 Prev | Next Part: SAG456/MONT *Qty: 2 Actuator Gear and Pin $51.00

* Quantity shown indicates the number of pieces used in the diagram.
