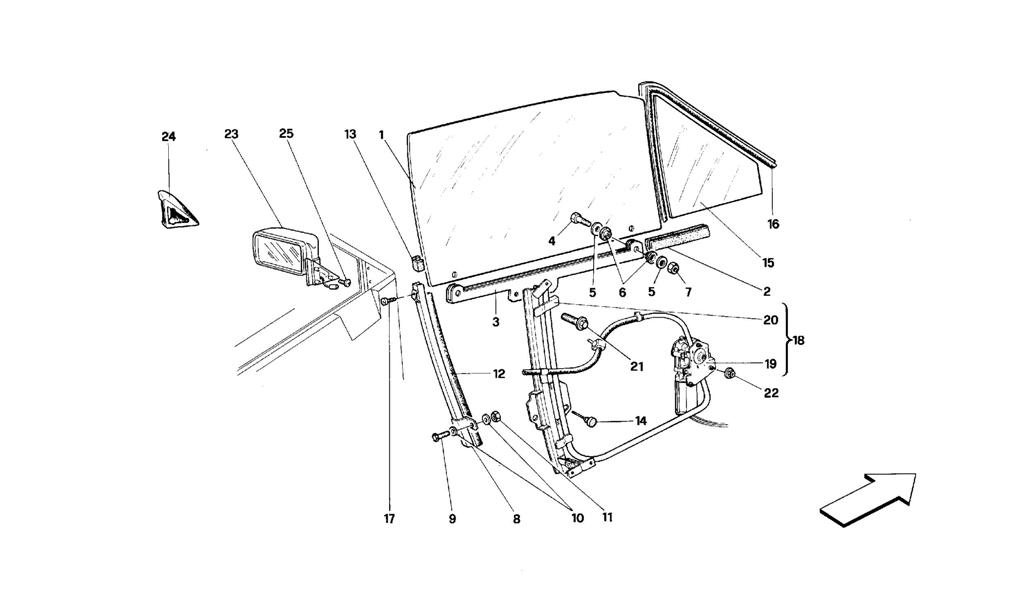

DOORS -CABRIOLET- GLASS LIFTING DEVICE AND REAR MIRROR

Go to Split View

DOORS -CABRIOLET- GLASS LIFTING DEVICE AND REAR MIRROR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61757900 *Qty: 1 R.H. glass $484.68
Location: 1 Prev | Next Part: 61758000 *Qty: 1 L.H. glass $430.34
Location: 2 Prev | Next Part: 61867600 *Qty: 2 Gasket $7.37
Location: 3 Prev | Next Part: 61867300 *Qty: 1 R.H. glass support $20.94
Location: 3 Prev | Next Part: 61867400 *Qty: 1 L.H. glass support $141.26
Location: 4 Prev | Next Part: 10902324 *Qty: 4 Screw Superseded
Location: 5 Prev | Next Part: 12643724 *Qty: 8 Washer Superseded
Location: 6 Prev | Next Part: 50086909 *Qty: 8 Bush $9.66
Location: 7 Prev | Next Part: 102741 *Qty: 4 Nut $0.90
Location: 8 Prev | Next Part: 61217500 *Qty: 1 R.H. glass guide Unavailable
Location: 8 Prev | Next Part: 61217600 *Qty: 1 L.H. glass guide $41.57
Location: 9 Prev | Next Part: 10902011 *Qty: 2 Screw Unavailable
Location: 10 Prev | Next Part: 12643201 *Qty: 8 Washer Unavailable
Location: 11 Prev | Next Part: 13832101 *Qty: 2 Nut $0.90
Location: 12 Prev | Next Part: 61219800 *Qty: 2 Rear run channel Unavailable
Location: 13 Prev | Next Part: 61412200 *Qty: 2 Upper terminal of rear seat $1.66
Location: 14 Prev | Next Part: 61083900 *Qty: 2 Rubber $0.90
Location: 15 Prev | Next Part: 61289700 *Qty: 1 R.H. fixed glass $496.94
Location: 15 Prev | Next Part: 61289800 *Qty: 1 L.H. fixed glass $256.81
Location: 16 Prev | Next Part: 61351200 *Qty: 2 Gasket $71.02
Location: 17 Prev | Next Part: 20297602 *Qty: 2 Screw $11.53
Location: 18 Prev | Next Part: 61867200 *Qty: 1 L.H. glass lifting assembly and motor $208.60
Location: 18 Prev | Next Part: 61867100 *Qty: 1 R.H. glass lifting assembly and motor $362.68
Location: 19 Prev | Next Part: 62302100 *Qty: 1 R.H. engine Unavailable
Location: 19 Prev | Next Part: 62302200 *Qty: 1 L.H. engine $513.18
Location: 20 Prev | Next Part: 62375900 *Qty: 1 R.H. glass lifting guide $245.42
Location: 20 Prev | Next Part: 62376000 *Qty: 1 L.H. glass lifting guide $245.42
Location: 21 Prev | Next Part: 13836371 *Qty: 10 Screw $1.45
Location: 22 Prev | Next Part: 13832101 *Qty: 6 Nut $0.90
Location: 23 Prev | Next Part: 61182500 *Qty: 1 R.H. mirror -Valid for GB and ZA $386.53
Location: 23 Prev | Next Part: 61367700 *Qty: 1 R.H. mirror -Valid for USA and AUS $256.81
Location: 23 Prev | Next Part: 61460900 *Qty: 1 R.H. mirror -Not for USA- AUS-GB and ZA $367.58
Location: 23 Prev | Next Part: 61461100 *Qty: 1 L.H. mirror -Valid for GB and ZA $305.90
Location: 23 Prev | Next Part: 61090000 *Qty: 1 L.H. mirror -Not for GB and ZA Unavailable
Location: 24 Prev | Next Part: 61182600 *Qty: 1 R.H. mirror covering -Valid for GB and ZA $32.44
Location: 24 Prev | Next Part: 61080500 *Qty: 1 L.H. mirror covering -Not for GB and ZA Unavailable
Location: 24 Prev | Next Part: 61181200 *Qty: 1 R.H. mirror covering -Not for GB and ZA $28.95
Location: 24 Prev | Next Part: 61182400 *Qty: 1 L.H. mirror covering -Valid for GB and ZA $36.29
Location: 25 Prev | Next Part: 61182700 *Qty: 6 Screw $13.15

* Quantity shown indicates the number of pieces used in the diagram.
