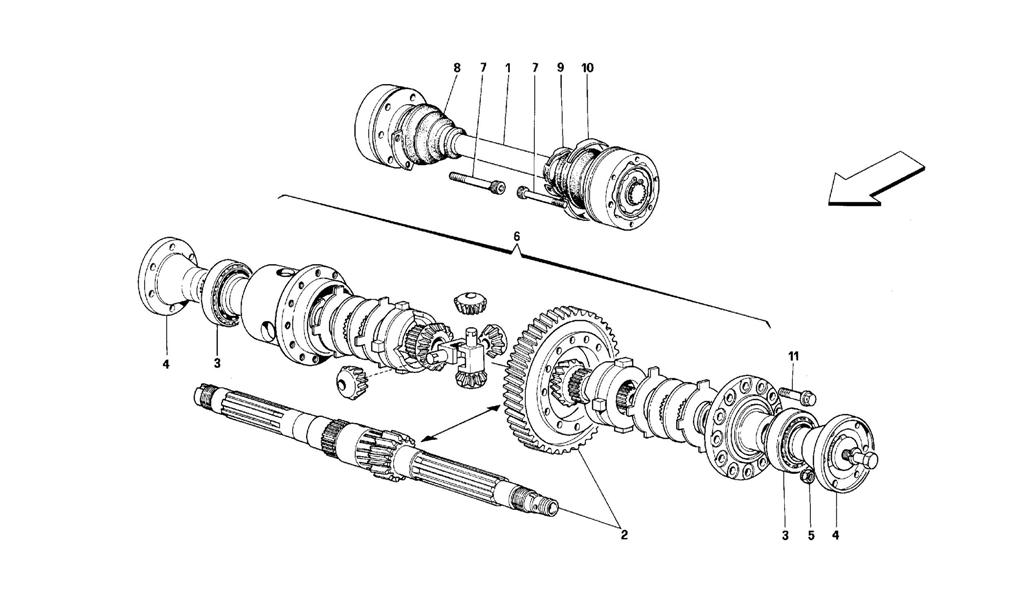

DIFFERENTIAL AND AXLE SHAFTS

Go to Split View

DIFFERENTIAL AND AXLE SHAFTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 134300 *Qty: 2 Axle shaft assembly $1,278.23
Location: 2 Prev | Next Part: 70000577 *Qty: 1 Complete cylindric pair -Not for CH $4,533.06
Location: 2 Prev | Next Part: 70000596 *Qty: 1 Complete cylindric pair -Valid for CH $1,158.93
Location: 3 Prev | Next Part: 125390 *Qty: 2 Bearing $188.87
Location: 4 Prev | Next Part: 128256 *Qty: 2 Axle shaft connection flange $108.79
Location: 5 Prev | Next Part: 101633 *Qty: 24 Nut $10.06
Location: 6 Prev | Next Part: 147258 *Qty: 1 Differential -Valid after stock exhaustion of 101626 $6,603.99
Location: 7 Prev | Next Part: 101632 *Qty: 24 Screw Unavailable
Location: 8 Prev | Next Part: 95860404 *Qty: 4 Axle shaft protection $27.50
Location: 9 Prev | Next Part: 154213 *Qty: 4 Little clamp for axle shaft protection $4.90
Location: 10 Prev | Next Part: 117957 *Qty: 4 Big clamp for axle shaft protection Superseded
Location: 11 Prev | Next Part: 152613 *Qty: 12 Screw $12.18

* Quantity shown indicates the number of pieces used in the diagram.
