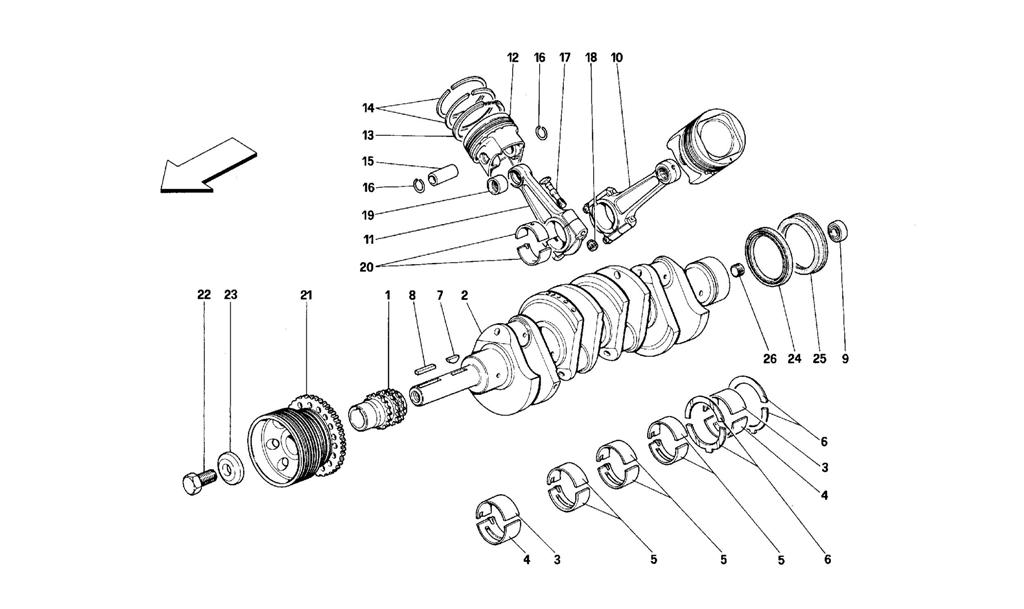

CRANKSHAFT - CONNECTING RODS AND PISTONS

Location Part # Quantity* Description Price Add To Cart
- 132959 8 Set of pistons rings $378.37
1 132807 1 Driving gear $205.17
2 138193 1 Crankshaft $2,611.88
3 100118 2 Upper half bearing $83.62
3 100119 0 1st undersize 0,254 mm. on ? $156.27
3 100120 0 2nd undersize 0,508 mm on ? $56.92
4 100122 2 Lower half bearing $87.25
4 100123 0 1st undersize 0,254 mm. on ? $148.37
4 100124 0 2nd undersize 0,508 mm. on ? $65.63
5 104023 6 Half bearing, upper and lower $138.24
5 153214 0 1st undersize 0,254 mm on ? $640.85
5 104025 0 2st undersize 0,508 mm on ? $62.48
6 113984 0 1st oversize 0,127 mm $127.87
6 100146 2 Shim for rear support $41.09
6 100147 0 2nd oversize 0,25 mm $19.77
7 10206020 1 Key $2.76
8 14723320 1 Key $2.88
9 103877 1 Bearing $49.00
10 109738 8 Connecting rod, compl. $1,006.78
11 109688 8 Connecting rod and cap -Not as spare part -With assembly No. 109738 Unavailable
12 137980 8 Piston with piston ring Unavailable
13 132773 8 ROF scraper ring with spring (3th groove) -Not as spare part -With complete set No. 132959 Unavailable
14 137763 16 AC torsional seal ring (1st and 2nd groove) -Not as spare part -With complete set No. 132959 Unavailable
15 119537 8 Gudgeon pin $113.44
16 100174 16 Ring $6.88
17 100156 16 Screw $33.07
18 104011 16 Nut $19.06
19 107100 8 Bush for gudgeon pin $78.44
20 100151 0 1st undersize 0,254 on ? $80.81
20 100152 0 2nd undersize 0,508 on ? $122.49
20 106183 16 CoNo. rod half bearing Unavailable
21 137321 1 Wheel $757.45
22 138793 1 Screw $118.73
23 138792 1 Washer $6.23
24 183581 1 Seal ring $207.04
25 183581 1 Seal ring $207.04
26 10268450 1 Plug $4.51

* Quantity shown indicates the number of pieces used in the diagram.
