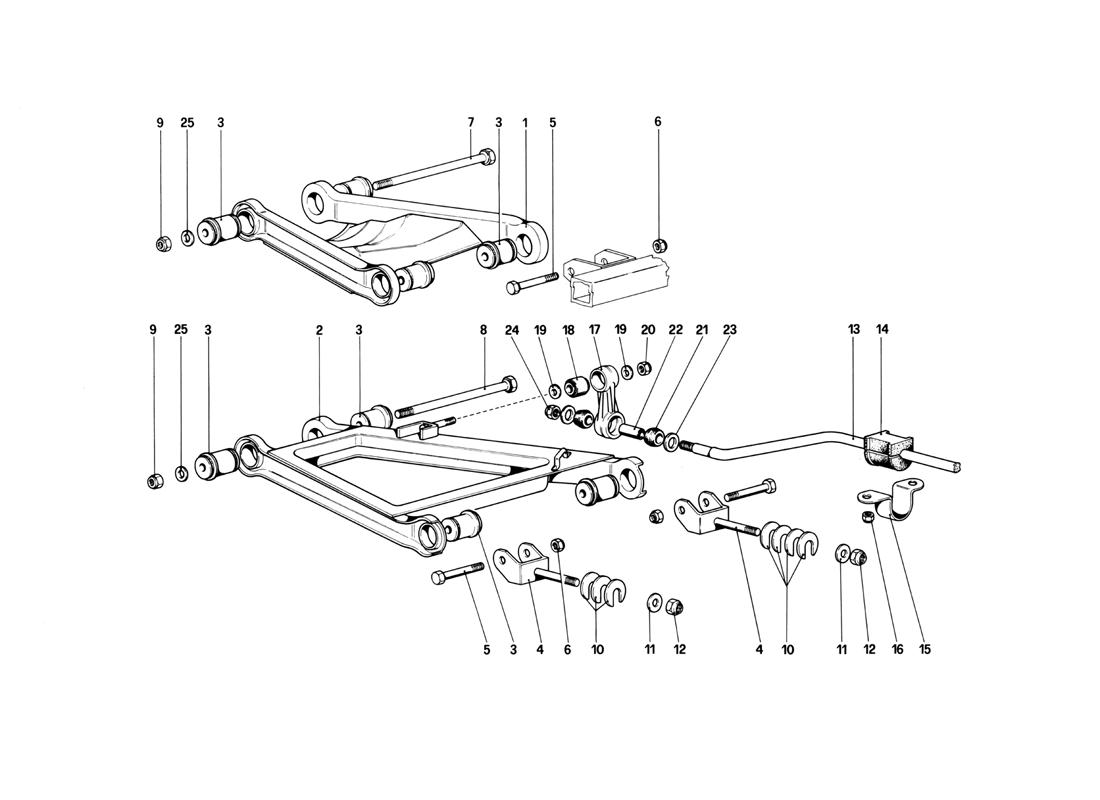

REAR SUSPENSION - WISHBONES

Go to Split View

REAR SUSPENSION - WISHBONES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115715 *Qty: 1 Upper lever, left $250.96
Location: 1 Prev | Next Part: 115716 *Qty: 1 Upper lever, right $250.96
Location: 2 Prev | Next Part: 117806 *Qty: 1 Lower lever, leftf $626.81
Location: 2 Prev | Next Part: 117805 *Qty: 1 Lower lever, right $636.26
Location: 3 Prev | Next Part: 103170 *Qty: 16 Flamblock for levers Superseded
Location: 4 Prev | Next Part: 112437 *Qty: 4 Lower fork $80.11
Location: 5 Prev | Next Part: 106419 *Qty: 8 Bolt $20.52
Location: 6 Prev | Next Part: 16105121 *Qty: 8 Nut Superseded
Location: 7 Prev | Next Part: 112439 *Qty: 2 Bolt $24.80
Location: 8 Prev | Next Part: 112440 *Qty: 2 Bolt $25.21
Location: 9 Prev | Next Part: 16105121 *Qty: 4 Nut Superseded
Location: 10 Prev | Next Part: 107338 *Qty: 8 Ditto, thickness 1,5 mm. $2.00
Location: 10 Prev | Next Part: 107340 *Qty: 8 Shim for lower fork, thickness 2,5 mm.
Possible fitting
$2.00
Location: 10 Prev | Next Part: 101039 *Qty: 8 Ditto, thickness 1 mm. Call
Location: 10 Prev | Next Part: 107339 *Qty: 8 Ditto, thickness 2 mm. Call
Location: 10 Prev | Next Part: 107342 *Qty: 8 Ditto, thickness 3,25 mm. $1.04
Location: 10 Prev | Next Part: 107341 *Qty: 8 Ditto, thickness 3 mm. $2.00
Location: 11 Prev | Next Part: 101041 *Qty: 4 Washer $0.90
Location: 12 Prev | Next Part: 12575821 *Qty: 4 Nut. Superseded
Location: 13 Prev | Next Part: 118119 *Qty: 1 Stabilizer rod $543.88
Location: 14 Prev | Next Part: 110874 *Qty: 2 Pad for rod $26.02
Location: 15 Prev | Next Part: 104417 *Qty: 2 Rod retainer $24.61
Location: 16 Prev | Next Part: 12575621 *Qty: 4 Nut Superseded
Location: 17 Prev | Next Part: 108432 *Qty: 2 Rod link $301.63
Location: 18 Prev | Next Part: 100773 *Qty: 2 Silentblock for link $34.12
Location: 19 Prev | Next Part: 108913 *Qty: 4 Shim Call
Location: 20 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 21 Prev | Next Part: 107335 *Qty: 4 Grommet $21.47
Location: 22 Prev | Next Part: 108294 *Qty: 2 Spacer tube $97.11
Location: 23 Prev | Next Part: 117285 *Qty: 2 Washer $1.24
Location: 24 Prev | Next Part: 16104421 *Qty: 2 Nut Superseded
Location: 25 Prev | Next Part: 106616 *Qty: 4 Washer $1.51

* Quantity shown indicates the number of pieces used in the diagram.
