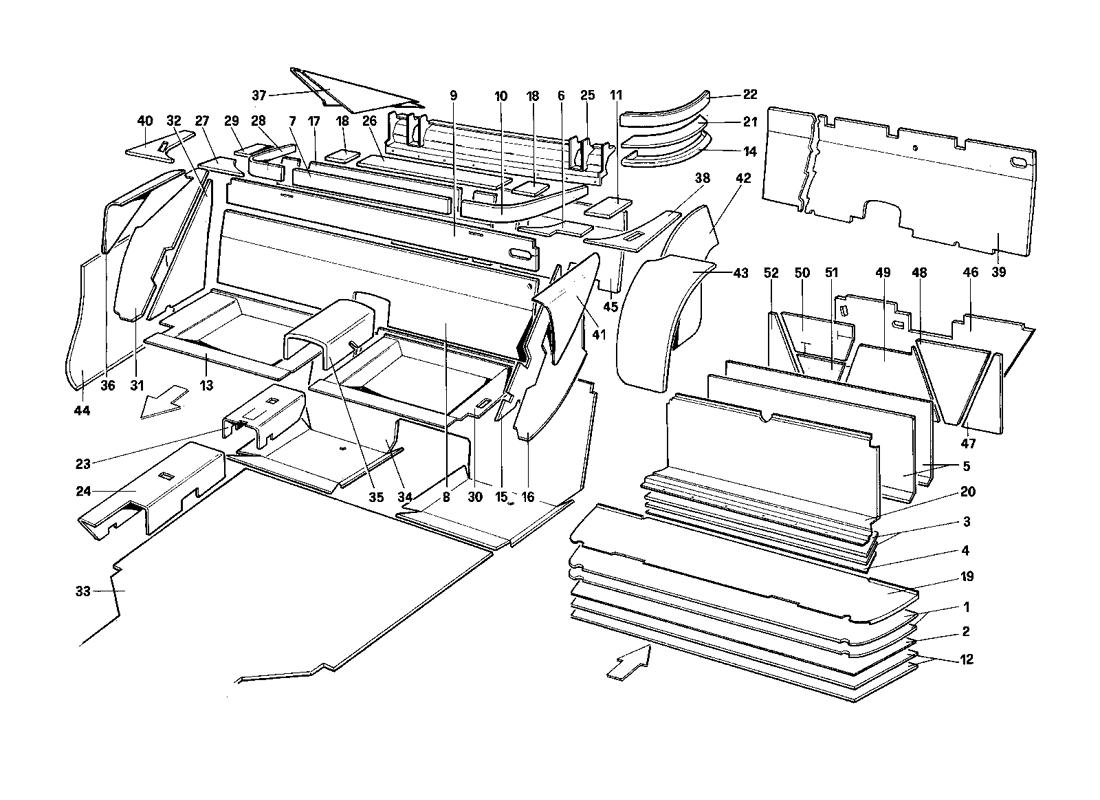

LUGGAGE AND PASSENGER COMPARTMENT INSULATION

Go to Split View

LUGGAGE AND PASSENGER COMPARTMENT INSULATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60985100 *Qty: 2 Insulation $146.64
Location: 2 Prev | Next Part: 61055600 *Qty: 1 Shieldpanel $416.37
Location: 3 Prev | Next Part: 61055700 *Qty: 2 Insulation $28.55
Location: 4 Prev | Next Part: 61055800 *Qty: 1 Shieldpanel $190.79
Location: 5 Prev | Next Part: 60705700 *Qty: 2 Insulation $118.58
Location: 6 Prev | Next Part: 60704100 *Qty: 1 Insulation - To 1982 $18.71
Location: 7 Prev | Next Part: 61151400 *Qty: 1 Insulation - From 1983 $17.53
Location: 7 Prev | Next Part: 60704200 *Qty: 1 Insulation - To 1982 $16.33
Location: 8 Prev | Next Part: 60704300 *Qty: 1 Insulation - To 1982 $120.47
Location: 9 Prev | Next Part: 61160000 *Qty: 1 Insulation - From frame 190 to 1982 Call
Location: 9 Prev | Next Part: 60704400 *Qty: 1 Insulation - To frame 189 $48.96
Location: 10 Prev | Next Part: 60768500 *Qty: 1 Insulation To 1982 $10.10
Location: 10 Prev | Next Part: 61028900 *Qty: 1 Insulation From 1983 $10.83
Location: 11 Prev | Next Part: 60767600 *Qty: 1 Insulation - To 1982 $6.03
Location: 12 Prev | Next Part: 61045100 *Qty: 2 Insulation Call
Location: 13 Prev | Next Part: 61028400 *Qty: 1 Insulation - From 1983 Call
Location: 13 Prev | Next Part: 60704900 *Qty: 1 Insulation - To 1982 $260.38
Location: 14 Prev | Next Part: 60994600 *Qty: 1 Container for L.H. insulation $177.60
Location: 14 Prev | Next Part: 60994500 *Qty: 1 Container for R.H. insulation $177.60
Location: 15 Prev | Next Part: 60704600 *Qty: 1 Insulation - To 1982 $22.11
Location: 15 Prev | Next Part: 61028100 *Qty: 1 Insulation - From 1983 $39.62
Location: 16 Prev | Next Part: 61028300 *Qty: 1 Insulation - From 1983 $39.62
Location: 16 Prev | Next Part: 60704800 *Qty: 1 Insulation - To 1982 $27.12
Location: 17 Prev | Next Part: 60717200 *Qty: 1 Insulation $12.87
Location: 18 Prev | Next Part: 60994700 *Qty: 2 Insulation $4.79
Location: 19 Prev | Next Part: 60985000 *Qty: 1 Flat bed for trunk botton $675.55
Location: 20 Prev | Next Part: 61653500 *Qty: 1 Shieldpanel vertical $1,039.13
Location: 21 Prev | Next Part: 60995000 *Qty: 2 Insulation $12.74
Location: 22 Prev | Next Part: 60994900 *Qty: 2 Insulation $20.41
Location: 23 Prev | Next Part: 61077700 *Qty: 1 Rear insulation for tunnel (LHD) $71.76
Location: 23 Prev | Next Part: 61127900 *Qty: 1 Rear insulation for tunnel (RHD) $71.76
Location: 24 Prev | Next Part: 61077600 *Qty: 1 Front insulation for tunnel (LHD) $148.55
Location: 24 Prev | Next Part: 61127800 *Qty: 1 Front insulation for tunnel (RHD) $148.55
Location: 25 Prev | Next Part: 60994400 *Qty: 1 Container for insulation $365.98
Location: 26 Prev | Next Part: 60994800 *Qty: 1 Insulation $11.04
Location: 27 Prev | Next Part: 60704000 *Qty: 1 Insulation - To 1982 $18.97
Location: 28 Prev | Next Part: 61028800 *Qty: 1 Insulation - From 1983 $10.83
Location: 28 Prev | Next Part: 60768400 *Qty: 1 Insulation - To 1982 $10.10
Location: 29 Prev | Next Part: 60767700 *Qty: 1 Insulation - To 1982 $6.03
Location: 30 Prev | Next Part: 60705500 *Qty: 1 Insulation - To 1982 Call
Location: 30 Prev | Next Part: 61028500 *Qty: 1 Insulation - From 1983 Call
Location: 31 Prev | Next Part: 60704700 *Qty: 1 insulation - To 1982 $34.10
Location: 31 Prev | Next Part: 61028200 *Qty: 1 Insulation - From 1983 $39.62
Location: 32 Prev | Next Part: 60704500 *Qty: 1 Insulation - To 1982 $27.61
Location: 32 Prev | Next Part: 61028000 *Qty: 1 Insulation - From 1983 $39.62
Location: 33 Prev | Next Part: 61095500 *Qty: 1 Insulation
Tropic only
Call
Location: 34 Prev | Next Part: 61095200 *Qty: 1 Insulation
Tropic only
Call
Location: 35 Prev | Next Part: 61095100 *Qty: 1 Insulation
Tropic only
Call
Location: 36 Prev | Next Part: 61094500 *Qty: 1 Insulation
Tropic only
Call
Location: 37 Prev | Next Part: 61094900 *Qty: 1 Insulation R.H.
Tropic only
Call
Location: 37 Prev | Next Part: 61095000 *Qty: 1 Insulation L.H.
Tropic only
Call
Location: 38 Prev | Next Part: 61151300 *Qty: 1 Insulation - From 1983 $20.41
Location: 39 Prev | Next Part: 61027800 *Qty: 1 Insulation - From 1983 $179.51
Location: 40 Prev | Next Part: 61151200 *Qty: 1 Insulation - From 1983 $20.41
Location: 41 Prev | Next Part: 61094600 *Qty: 1 Insulation
Tropic only
Call
Location: 42 Prev | Next Part: 61264500 *Qty: 1 R.H. insulation
CH only
Call
Location: 42 Prev | Next Part: 61264400 *Qty: 1 L.H. insulation
CH only
Call
Location: 43 Prev | Next Part: 61264200 *Qty: 1 L.H. insulation
CH only
Call
Location: 43 Prev | Next Part: 61264300 *Qty: 1 R.H. insulation
CH only
Call
Location: 44 Prev | Next Part: 61464700 *Qty: 1 L.H. insulation
CH only
Superseded
Location: 44 Prev | Next Part: 61264600 *Qty: 1 R.H. insulation
CH only
Call
Location: 45 Prev | Next Part: 61264900 *Qty: 1 Insulation engine - seats compartment Call
Location: 46 Prev | Next Part: 61265200 *Qty: 1 Insulation trunk - engine
CH only
Call
Location: 47 Prev | Next Part: 61265000 *Qty: 1 Insulation trunk - engine
CH only
$49.67
Location: 48 Prev | Next Part: 61265400 *Qty: 1 Insulation trunk - engine
CH only
$36.99
Location: 49 Prev | Next Part: 61264800 *Qty: 1 Insulation trunk - engine
CH only
$48.49
Location: 50 Prev | Next Part: 61265500 *Qty: 1 Insulation trunk - engine
CH only
Call
Location: 51 Prev | Next Part: 61265300 *Qty: 1 Insulation trunk - engine
CH only
Call
Location: 52 Prev | Next Part: 61265100 *Qty: 1 Insulation trunk - engine
CH only
$11.30

* Quantity shown indicates the number of pieces used in the diagram.
