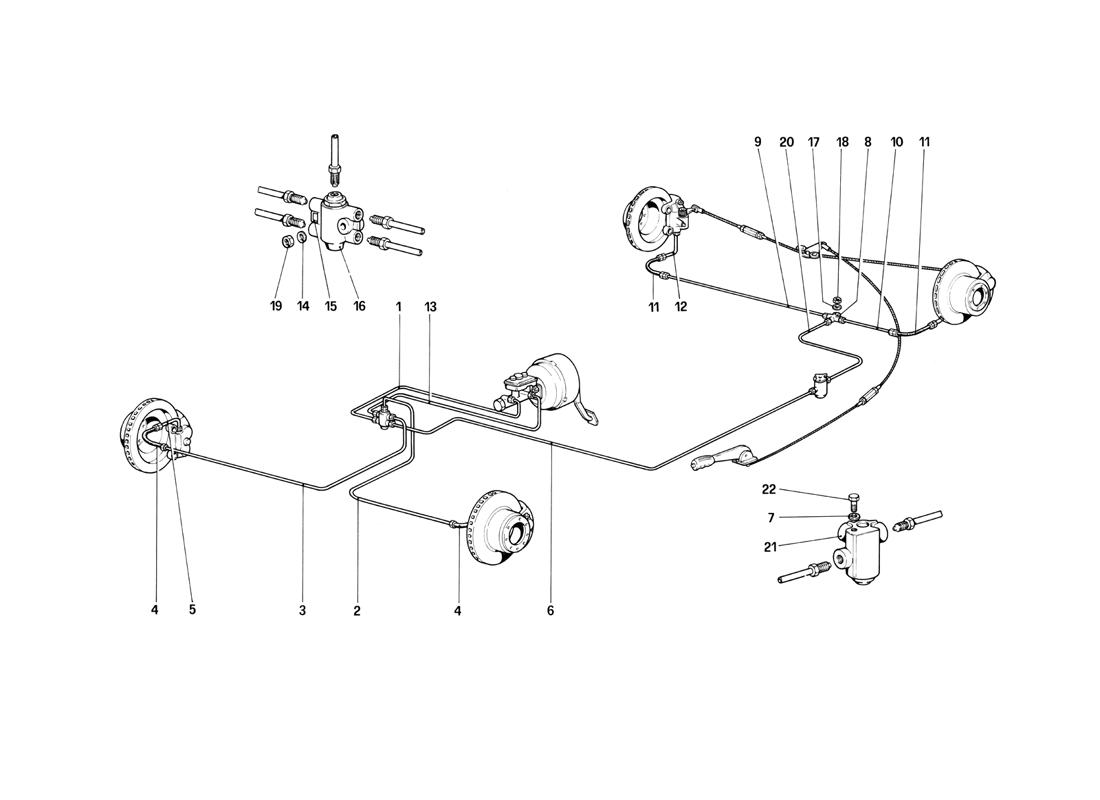

BRAKE SYSTEM (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011)

Go to Split View

BRAKE SYSTEM (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 104470 *Qty: 1 Pipe from brake booster to indicator of rear Unavailable
Location: 2 Prev | Next Part: 106670 *Qty: 1 Pipe from indicator to left front hose $12.80
Location: 3 Prev | Next Part: 116397 *Qty: 1 Pipe from indicator to right front hose $10.18
Location: 4 Prev | Next Part: 116373 *Qty: 2 Front circuit hose Superseded
Location: 5 Prev | Next Part: 105856 *Qty: 2 Pipe from hose to caliper Unavailable
Location: 6 Prev | Next Part: 117331 *Qty: 1 Pipe from valve to vacuum pump Unavailable
Location: 7 Prev | Next Part: 106852 *Qty: 1 Washer Superseded
Location: 8 Prev | Next Part: 101394 *Qty: 1 3-way union Unavailable
Location: 9 Prev | Next Part: 116397 *Qty: 1 Pipe from 3-way union to right hose $10.18
Location: 10 Prev | Next Part: 107090 *Qty: 1 Pipe from 3-way union to left hose $9.47
Location: 11 Prev | Next Part: 116373 *Qty: 2 Rear hcse Superseded
Location: 12 Prev | Next Part: 101401 *Qty: 2 Pipe from hose to rear caliper Unavailable
Location: 13 Prev | Next Part: 101407 *Qty: 1 Pipe from brake booster to indicator Unavailable
Location: 14 Prev | Next Part: 106850 *Qty: 1 Washer Superseded
Location: 15 Prev | Next Part: 108955 *Qty: 1 Electric indicator
Not spare
Unavailable
Location: 16 Prev | Next Part: 108803 *Qty: 1 Brake failure indicator Superseded
Location: 17 Prev | Next Part: 12639701 *Qty: 1 Washer Unavailable
Location: 18 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 19 Prev | Next Part: 15896211 *Qty: 1 Nut Superseded
Location: 20 Prev | Next Part: 101407 *Qty: 1 Pipe from vacuum pump to 3-way union Unavailable
Location: 21 Prev | Next Part: 116316 *Qty: 1 Breaking action regulation for rear brakes $343.34
Location: 22 Prev | Next Part: 16043021 *Qty: 1 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
