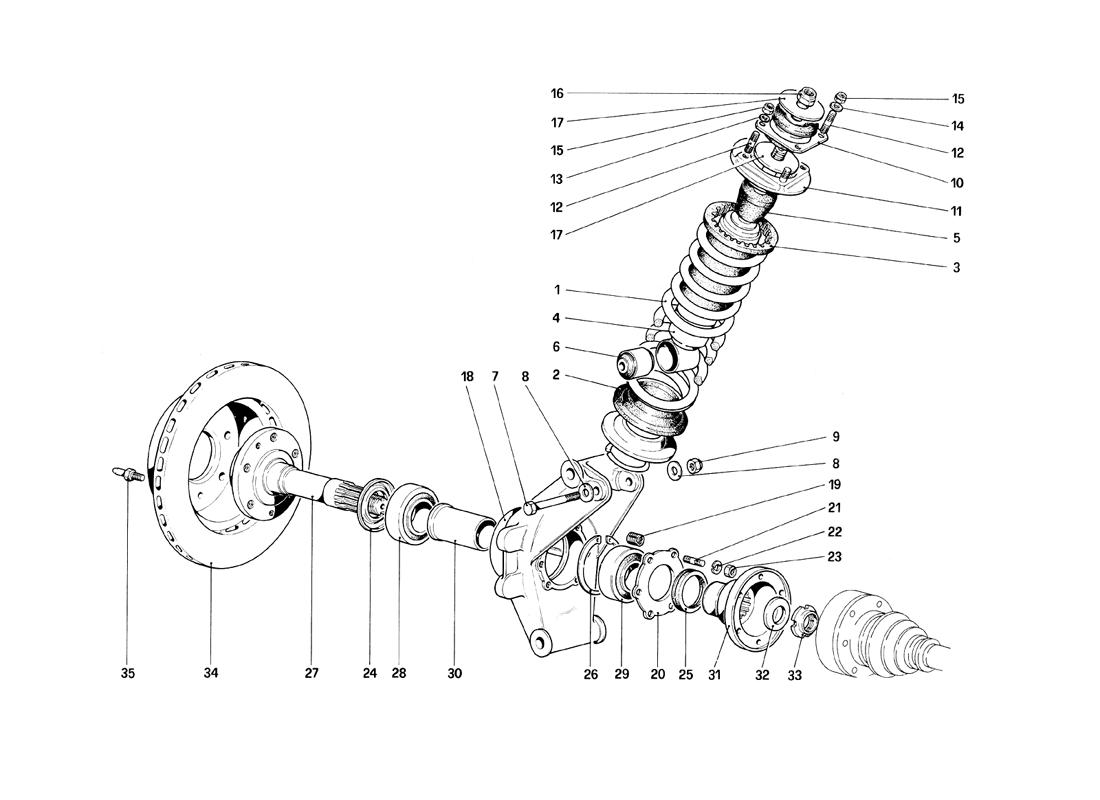

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 116410 *Qty: 2 Molla sospensione $368.58
Location: 2 Prev | Next Part: 113581 *Qty: 2 Distanziale inferiore $24.60
Location: 3 Prev | Next Part: 113582 *Qty: 2 Distanziale superiore $118.70
Location: 4 Prev | Next Part: 114335 *Qty: 2 Ammortizzatore Unavailable
Location: 5 Prev | Next Part: 116358 *Qty: 2 Tampone $60.86
Location: 6 Prev | Next Part: 100809 *Qty: 2 Estendblok per ammortizzatore $20.12
Location: 7 Prev | Next Part: 112441 *Qty: 2 Bullone $113.57
Location: 8 Prev | Next Part: 106616 *Qty: 4 Rondella Unavailable
Location: 9 Prev | Next Part: 16105121 *Qty: 2 Dado Superseded
Location: 10 Prev | Next Part: 114812 *Qty: 2 Hyperblok attacco ammortizzatore $119.08
Location: 11 Prev | Next Part: 114809 *Qty: 2 Scodellino tenuta molla Superseded
Location: 12 Prev | Next Part: 13517021 *Qty: 8 THREADED STUD Unavailable
Location: 13 Prev | Next Part: 12646721 *Qty: 6 Rondella Superseded
Location: 14 Prev | Next Part: 113113 *Qty: 2 Rondella $4.61
Location: 15 Prev | Next Part: 16104121 *Qty: 8 Dado Superseded
Location: 16 Prev | Next Part: 16105121 *Qty: 2 Dado Superseded
Location: 17 Prev | Next Part: 114815 *Qty: 4 Rondella $1.93
Location: 18 Prev | Next Part: 112445 *Qty: 1 Portamozzo Dx. $671.93
Location: 18 Prev | Next Part: 112446 *Qty: 1 Portamozzo Sx. $639.19
Location: 19 Prev | Next Part: 105621 *Qty: 1 Heli - coil Superseded
Location: 20 Prev | Next Part: 108049 *Qty: 2 Fiangia tenuta cuscinetto $106.12
Location: 21 Prev | Next Part: 13543121 *Qty: 12 THREADED STUD Superseded
Location: 22 Prev | Next Part: 106852 *Qty: 12 Rondella Superseded
Location: 23 Prev | Next Part: 16100821 *Qty: 12 Dado Unavailable
Location: 24 Prev | Next Part: 108047 *Qty: 2 Anello centrifugatore $73.26
Location: 25 Prev | Next Part: 108048 *Qty: 2 Anello di tenuta $16.93
Location: 26 Prev | Next Part: 11061575 *Qty: 2 Anello seeger Superseded
Location: 27 Prev | Next Part: 108046 *Qty: 2 Albero con mozzo posteriore $1,684.42
Location: 28 Prev | Next Part: 101221 *Qty: 2 Cuscinetto esterno $44.19
Location: 29 Prev | Next Part: 101220 *Qty: 2 Cuscinetto interno $48.88
Location: 30 Prev | Next Part: 106129 *Qty: 2 Distanziale $246.56
Location: 31 Prev | Next Part: 104604 *Qty: 2 Fiangia attacco semiassi $835.52
Location: 32 Prev | Next Part: 105511 *Qty: 2 Rondella $14.75
Location: 33 Prev | Next Part: 102289 *Qty: 2 Ghiera $40.00
Location: 34 Prev | Next Part: 115078 *Qty: 2 Disco freno $279.15
Location: 35 Prev | Next Part: 104370 *Qty: 4 Vite di centraggio $0.90

* Quantity shown indicates the number of pieces used in the diagram.
