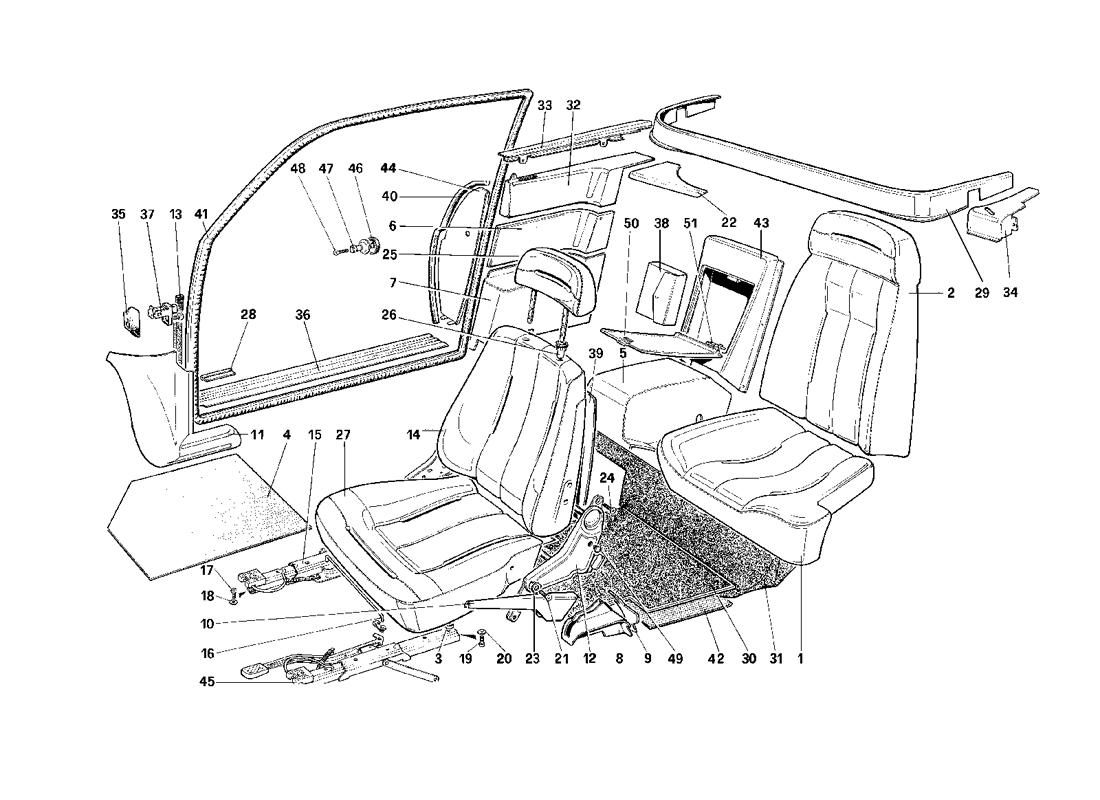

SEATS - 3.2 MONDIAL COUPE

Go to Split View

SEATS - 3.2 MONDIAL COUPE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 61961900 *Qty: 1 Front R.H. seat complete
Until car 71879 - AUS
Call
Location: - Prev | Next Part: 62362900 *Qty: 1 Front R.H. seat complete
From car 71913 - Not for AUS
Call
Location: - Prev | Next Part: 61962000 *Qty: 1 Front L.H. seat complete
Until car 71879 - AUS
Call
Location: - Prev | Next Part: 62371300 *Qty: 1 Front R.H. seat complete
From car 71913 - AUS
Call
Location: - Prev | Next Part: 61711700 *Qty: 1 Front R.H. seat complete
Until car 71879 - Not for AUS
Call
Location: - Prev | Next Part: 62363000 *Qty: 1 Front L.H. seat complete
From car 71913 - Not for AUS
Call
Location: - Prev | Next Part: 61711800 *Qty: 1 Front R.H. seat complete
Until car 71879 - Not for AUS
$3,749.24
Location: - Prev | Next Part: 62371400 *Qty: 1 Front L.H. seat complete
From car 71 91 3 - AUS
Call
Location: 1 Prev | Next Part: 61176400 *Qty: 1 L.H. seat cushion with covering $1,257.80
Location: 1 Prev | Next Part: 61176300 *Qty: 1 R.H. seat cushion with covering $1,257.80
Location: 1 Prev | Next Part: 61770000 *Qty: 1 R.H. covering Superseded
Location: 1 Prev | Next Part: 61177100 *Qty: 1 L.H. covering $707.64
Location: 2 Prev | Next Part: 61045900 *Qty: 1 L.H. rear seat squab with covering - AUS Call
Location: 2 Prev | Next Part: 61176500 *Qty: 2 Rear seat squab with covering
Not for AUS
$1,679.86
Location: 2 Prev | Next Part: 61045800 *Qty: 1 R.H. rear seat squab with covering - AUS Call
Location: 2 Prev | Next Part: 61046100 *Qty: 2 Covering $817.90
Location: 2 Prev | Next Part: 61177200 *Qty: 2 Covering
Not for AUS
$847.29
Location: 3 Prev | Next Part: 61607000 *Qty: 4 Bush $14.49
Location: 4 Prev | Next Part: 61601600 *Qty: 1 R.H. front under carpet - RHD $82.53
Location: 4 Prev | Next Part: 61601400 *Qty: 1 L.H. front under carpet - LHD $75.40
Location: 4 Prev | Next Part: 61601300 *Qty: 1 R.H. front under carpet - LHD $58.81
Location: 4 Prev | Next Part: 61601700 *Qty: 1 L.H. front under carpet - RHD $56.06
Location: 5 Prev | Next Part: 61162800 *Qty: 1 Lower framework with covering $884.01
Location: 6 Prev | Next Part: 61163200 *Qty: 1 R.H. framework with covering $248.83
Location: 6 Prev | Next Part: 61163000 *Qty: 1 L.H. framework.with covering $248.83
Location: 7 Prev | Next Part: 61163600 *Qty: 1 L.H. covering $139.85
Location: 7 Prev | Next Part: 61163800 *Qty: 1 R.H. covering $139.85
Location: 7 Prev | Next Part: 61163500 *Qty: 1 L.H. framework with covering $559.60
Location: 7 Prev | Next Part: 61163700 *Qty: 1 R.H. framework with covering $559.60
Location: 8 Prev | Next Part: 61164000 *Qty: 1 Framework with covering - LHD $285.57
Location: 8 Prev | Next Part: 61316100 *Qty: 1 Covering with rubber 9 - RHD Call
Location: 8 Prev | Next Part: 61164700 *Qty: 1 Framework with covering - RHD Call
Location: 8 Prev | Next Part: 61316000 *Qty: 1 Covering with rubber 9 - LHD Call
Location: 9 Prev | Next Part: 61165500 *Qty: 1 Protection - LHD $15.43
Location: 9 Prev | Next Part: 61165000 *Qty: 1 Protection - RHD $34.03
Location: 10 Prev | Next Part: 60727000 *Qty: 1 Covering for brake lever $72.04
Location: 11 Prev | Next Part: 61184600 *Qty: 1 R.H. covering tubes $85.05
Location: 11 Prev | Next Part: 60733400 *Qty: 1 L.H. covering tubes $106.67
Location: 12 Prev | Next Part: 61438200 *Qty: 1 Adjuster for R.H. seat $526.02
Location: 12 Prev | Next Part: 61437900 *Qty: 1 Adjuster for L.H. seat Call
Location: 13 Prev | Next Part: 61859000 *Qty: 2 Gasket $5.68
Location: 14 Prev | Next Part: 60872200 *Qty: 2 Front seat squab with covering Call
Location: 14 Prev | Next Part: 60905100 *Qty: 2 Covering $749.15
Location: 15 Prev | Next Part: 61711400 *Qty: 2 Right guide $250.96
Location: 16 Prev | Next Part: 61607100 *Qty: 2 Rod for guides $7.57
Location: 17 Prev | Next Part: 20293306 *Qty: 8 Screw Superseded
Location: 18 Prev | Next Part: 11193870 *Qty: 8 Washer Superseded
Location: 19 Prev | Next Part: 14305320 *Qty: 8 Screw $0.90
Location: 20 Prev | Next Part: 11197770 *Qty: 8 Washer Superseded
Location: 21 Prev | Next Part: 60719800 *Qty: 4 Screw $0.97
Location: 22 Prev | Next Part: 61190000 *Qty: 1 L.H. rear framework with covering $81.89
Location: 22 Prev | Next Part: 61190200 *Qty: 1 R.H. rear framework with covering $81.89
Location: 23 Prev | Next Part: 12520302 *Qty: 4 Washer $1.95
Location: 24 Prev | Next Part: 50206507 *Qty: 4 Screw $1.48
Location: 25 Prev | Next Part: 60667400 *Qty: 2 Headrest with covering $1,060.41
Location: 25 Prev | Next Part: 60820800 *Qty: 2 Covering $138.59
Location: 25 Prev | Next Part: 61961600 *Qty: 2 Headrest with covering - AUS Call
Location: 26 Prev | Next Part: 20058905 *Qty: 4 Bush $35.87
Location: 27 Prev | Next Part: 62363800 *Qty: 2 Front cushion with covering
From car 71913
Call
Location: 27 Prev | Next Part: 62363700 *Qty: 2 Covering
From car 71913
$1,169.60
Location: 27 Prev | Next Part: 61711900 *Qty: 2 Front cushion with covering
Until car 71879
Call
Location: 27 Prev | Next Part: 60905200 *Qty: 2 Covering
Until car 71879
$1,007.54
Location: 28 Prev | Next Part: 60904200 *Qty: 2 Gasket Superseded
Location: 29 Prev | Next Part: 61186500 *Qty: 1 Framework with covering $393.72
Location: 30 Prev | Next Part: 60782200 *Qty: 1 Rear carpet side driver - LHD Call
Location: 30 Prev | Next Part: 60785100 *Qty: 1 Rear carpet side driver - RHD Call
Location: 30 Prev | Next Part: 60786200 *Qty: 1 Rear carpet side passeger - RHD Call
Location: 30 Prev | Next Part: 60783400 *Qty: 1 Rear carpet side passeger - LHD Call
Location: 31 Prev | Next Part: 60782800 *Qty: 1 Rear vertical carpet - LHD Call
Location: 31 Prev | Next Part: 60785700 *Qty: 1 Rear vertical carpet - RHD Call
Location: 32 Prev | Next Part: 61190100 *Qty: 1 R.H. framework with covering $152.45
Location: 32 Prev | Next Part: 61189900 *Qty: 1 L.H. framework with covering $143.42
Location: 33 Prev | Next Part: 61190400 *Qty: 1 L.H. moulding $105.22
Location: 33 Prev | Next Part: 61190900 *Qty: 1 R.H. moulding $86.33
Location: 34 Prev | Next Part: 61183800 *Qty: 1 Cover for left rear belt $213.15
Location: 34 Prev | Next Part: 61184000 *Qty: 1 Cover for right rear belt $262.50
Location: 35 Prev | Next Part: 50313300 *Qty: 2 Gasket for switch
For US q.ty 3
Call
Location: 36 Prev | Next Part: 60675000 *Qty: 1 R.H. moulding underdoor Call
Location: 36 Prev | Next Part: 60674900 *Qty: 1 L.H. moulding underdoor Call
Location: 37 Prev | Next Part: 50313204 *Qty: 2 Switch
For US q.ty 3
$10.73
Location: 38 Prev | Next Part: 61185900 *Qty: 1 First aid kit
Not for US
Call
Location: 39 Prev | Next Part: 60689200 *Qty: 2 Panel seat with covering $314.99
Location: 39 Prev | Next Part: 60905300 *Qty: 2 Covering $162.75
Location: 40 Prev | Next Part: 60726300 *Qty: 2 Gasket $6.52
Location: 41 Prev | Next Part: 60924000 *Qty: 1 L.H. gasket $272.01
Location: 41 Prev | Next Part: 60924100 *Qty: 1 R.H. gasket $282.32
Location: 42 Prev | Next Part: 61601500 *Qty: 2 Rear under carpet - LHD $58.81
Location: 42 Prev | Next Part: 61601800 *Qty: 2 Rear under carpet - RHD $22.91
Location: 43 Prev | Next Part: 61152900 *Qty: 1 Rear glove box. with parts 50 - 51 - 52 $1,121.30
Location: 44 Prev | Next Part: 60726400 *Qty: 1 Right pillar $62.58
Location: 45 Prev | Next Part: 61711500 *Qty: 2 Left guide $250.96
Location: 45 Prev | Next Part: 60726500 *Qty: 1 Left pillar $72.44
Location: 46 Prev | Next Part: 60775900 *Qty: 2 Gasket $1.02
Location: 47 Prev | Next Part: 60670100 *Qty: 2 Pin for lock stricket Call
Location: 48 Prev | Next Part: 60673700 *Qty: 2 Screw Call
Location: 49 Prev | Next Part: 62355500 *Qty: 4 Plug $1.88
Location: 50 Prev | Next Part: 61153000 *Qty: 1 Cover $35.72
Location: 51 Prev | Next Part: 61192600 *Qty: 1 L.H. hinge for cover $1.90
Location: 51 Prev | Next Part: 61153300 *Qty: 1 R.H. hinge for cover $2.54

* Quantity shown indicates the number of pieces used in the diagram.
