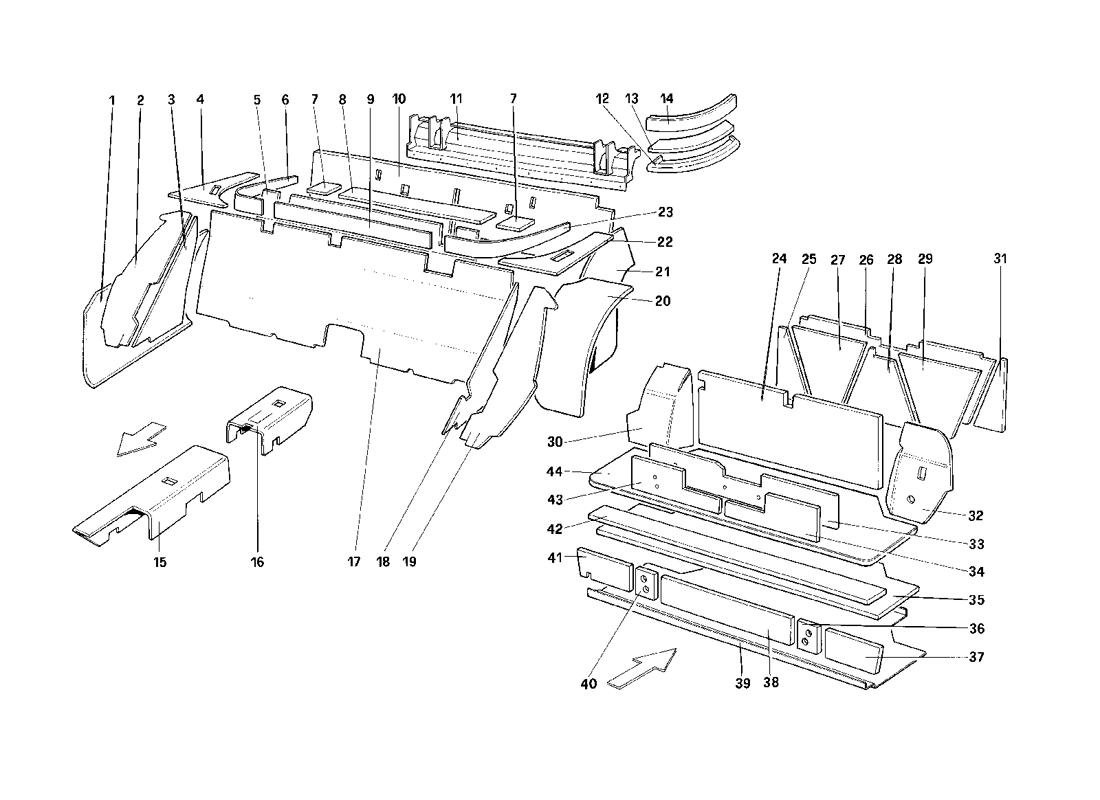

LUGGAGE AND PASSENGER COMPARTMENT, INSULATION - 3.2

Go to Split View

LUGGAGE AND PASSENGER COMPARTMENT, INSULATION - 3.2

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61264600 *Qty: 1 R.H. insulation - C6 only Call
Location: 2 Prev | Next Part: 61264700 *Qty: 1 L.H. insulation - C6 only Call
Location: 2 Prev | Next Part: 61028200 *Qty: 1 Insulation $34.67
Location: 3 Prev | Next Part: 61028000 *Qty: 1 Insulation $34.67
Location: 4 Prev | Next Part: 61151200 *Qty: 1 Insulation $17.86
Location: 5 Prev | Next Part: 60717200 *Qty: 1 Insulation $12.87
Location: 6 Prev | Next Part: 61028800 *Qty: 1 Insulation $9.47
Location: 7 Prev | Next Part: 60994700 *Qty: 2 Insulation $4.19
Location: 8 Prev | Next Part: 60994800 *Qty: 1 Insulation $9.66
Location: 9 Prev | Next Part: 61151400 *Qty: 1 nsulation $15.34
Location: 10 Prev | Next Part: 61264900 *Qty: 1 Insulation - C6 only Call
Location: 11 Prev | Next Part: 60994400 *Qty: 1 Container for insulation $320.24
Location: 12 Prev | Next Part: 60994500 *Qty: 1 R.H. container for insulation $155.40
Location: 13 Prev | Next Part: 60995000 *Qty: 2 Insulation $11.15
Location: 13 Prev | Next Part: 60994600 *Qty: 1 L.H. container for insulation $155.40
Location: 14 Prev | Next Part: 60994900 *Qty: 2 Insulation $17.86
Location: 15 Prev | Next Part: 61077600 *Qty: 1 Front insulation tunnel LHD $129.98
Location: 16 Prev | Next Part: 61127800 *Qty: 1 Front insulation tunnel RHD $129.98
Location: 16 Prev | Next Part: 61077700 *Qty: 1 Rear insulation tunnel LHD $62.79
Location: 17 Prev | Next Part: 61027800 *Qty: 1 Insulation $157.07
Location: 17 Prev | Next Part: 61127900 *Qty: 1 Rear insulation tunnel RHD $62.79
Location: 18 Prev | Next Part: 61028100 *Qty: 1 Insulation $34.67
Location: 19 Prev | Next Part: 61028300 *Qty: 1 Insulation $34.67
Location: 20 Prev | Next Part: 61980600 *Qty: 1 L.H. insulation - C6 only Call
Location: 21 Prev | Next Part: 61980700 *Qty: 1 L.H. insulation - C6 only Call
Location: 21 Prev | Next Part: 61264500 *Qty: 1 R.H. insulation - C6 only Call
Location: 21 Prev | Next Part: 61264300 *Qty: 1 R.H. insulation - C6 only Call
Location: 22 Prev | Next Part: 61151300 *Qty: 1 Insulation $17.86
Location: 23 Prev | Next Part: 61028900 *Qty: 1 Insulation $9.47
Location: 24 Prev | Next Part: 61820600 *Qty: 1 Insulation $351.73
Location: 25 Prev | Next Part: 61265100 *Qty: 1 Insulation $9.89
Location: 26 Prev | Next Part: 61934100 *Qty: 1 Insulation $138.82
Location: 27 Prev | Next Part: 61934200 *Qty: 1 Insulation $19.34
Location: 28 Prev | Next Part: 61264800 *Qty: 1 Insulation $42.43
Location: 29 Prev | Next Part: 61265400 *Qty: 1 Insulation $32.37
Location: 30 Prev | Next Part: 61821000 *Qty: 1 Insulation $38.63
Location: 31 Prev | Next Part: 61265000 *Qty: 1 Insulation $43.47
Location: 32 Prev | Next Part: 61820900 *Qty: 1 Insulation $41.38
Location: 33 Prev | Next Part: 61820800 *Qty: 1 Insulation $64.46
Location: 34 Prev | Next Part: 61821400 *Qty: 1 Insulation $107.58
Location: 35 Prev | Next Part: 61820500 *Qty: 1 Insulation $324.43
Location: 36 Prev | Next Part: 61821600 *Qty: 1 Insulation $8.83
Location: 37 Prev | Next Part: 61821100 *Qty: 1 Insulation $56.92
Location: 38 Prev | Next Part: 61820700 *Qty: 1 Insulation $94.30
Location: 39 Prev | Next Part: 61875100 *Qty: 1 Insulation $413.65
Location: 40 Prev | Next Part: 61821700 *Qty: 1 Insulation $8.83
Location: 41 Prev | Next Part: 61821200 *Qty: 1 Insulation $56.92
Location: 42 Prev | Next Part: 61821300 *Qty: 1 Insulation $76.44
Location: 43 Prev | Next Part: 61821500 *Qty: 1 Insulation $107.58
Location: 44 Prev | Next Part: 61820200 *Qty: 1 Insulation $549.11

* Quantity shown indicates the number of pieces used in the diagram.
