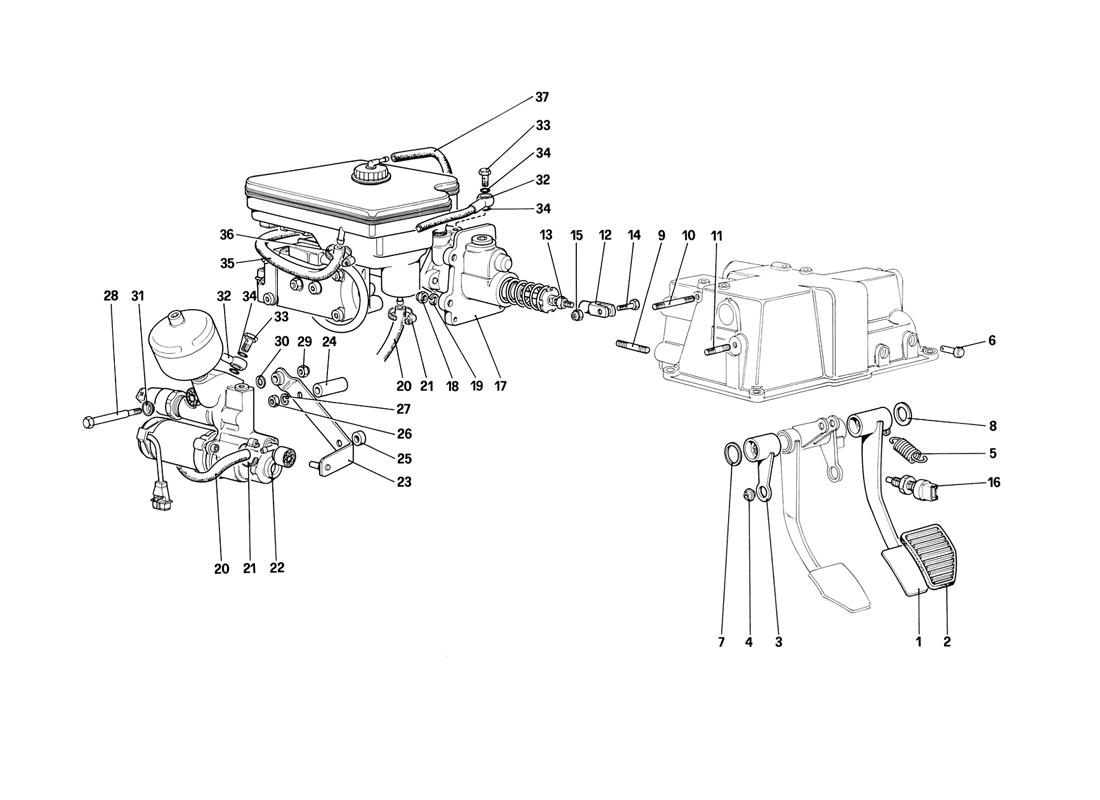

BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM)

Go to Split View

BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 129606 *Qty: 1 Brake pedal $248.68
Location: 2 Prev | Next Part: 106950 *Qty: 1 Pedal cover $27.54
Location: 3 Prev | Next Part: 129609 *Qty: 1 Brake lever $405.68
Location: 4 Prev | Next Part: 109407 *Qty: 1 Ball joint $24.12
Location: 5 Prev | Next Part: 101305 *Qty: 1 Pedal return spring $5.25
Location: 6 Prev | Next Part: 129612 *Qty: 1 Pin $2.68
Location: 7 Prev | Next Part: 112125 *Qty: 1 Shim $2.22
Location: 8 Prev | Next Part: 112127 *Qty: 1 Shim, 0,9 mm.
Possible fitting
$0.90
Location: 8 Prev | Next Part: 112128 *Qty: 1 Shim, 1,0 mm.
Possible fitting
$0.90
Location: 8 Prev | Next Part: 112129 *Qty: 1 Shim, 1,1 mm.
Possible fitting
$0.90
Location: 8 Prev | Next Part: 112130 *Qty: 1 Shim, 1,2 mm.
Possible fitting
$0.90
Location: 8 Prev | Next Part: 112131 *Qty: 1 Shim, 1,3 mm.
Possible fitting
$0.90
Location: 9 Prev | Next Part: 13543421 *Qty: 4 Stud Superseded
Location: 10 Prev | Next Part: 13517121 *Qty: 1 Stud Unavailable
Location: 11 Prev | Next Part: 13517621 *Qty: 1 Stud Superseded
Location: 12 Prev | Next Part: 10007871 *Qty: 1 Fork $17.31
Location: 13 Prev | Next Part: 16102311 *Qty: 1 Lock nut Superseded
Location: 14 Prev | Next Part: 130926 *Qty: 1 Screw $7.90
Location: 15 Prev | Next Part: 16104411 *Qty: 1 Selflocking nut $0.90
Location: 16 Prev | Next Part: 133555 *Qty: 1 Stop light switch $31.75
Location: 17 Prev | Next Part: 129699 *Qty: 1 Idraulic control unit $953.18
Location: 18 Prev | Next Part: 16104111 *Qty: 4 Selflocking nut Superseded
Location: 19 Prev | Next Part: 12601371 *Qty: 4 Washer Superseded
Location: 20 Prev | Next Part: 123264 *Qty: 1 Pipe Superseded
Location: 21 Prev | Next Part: 12179190 *Qty: 2 Clamp Superseded
Location: 22 Prev | Next Part: 131324 *Qty: 1 Master cylinder Superseded
Location: 23 Prev | Next Part: 129631 *Qty: 1 Bracket $80.01
Location: 24 Prev | Next Part: 129634 *Qty: 1 Upper spacer $7.76
Location: 25 Prev | Next Part: 129635 *Qty: 1 Lower spacer $2.23
Location: 26 Prev | Next Part: 16100811 *Qty: 2 Nut Superseded
Location: 27 Prev | Next Part: 127469 *Qty: 2 Washer $50.57
Location: 28 Prev | Next Part: 129636 *Qty: 1 Screw $5.04
Location: 29 Prev | Next Part: 12574211 *Qty: 1 Selflocking nut Superseded
Location: 30 Prev | Next Part: 121558 *Qty: 1 Shim $1.99
Location: 31 Prev | Next Part: 130861 *Qty: 1 Washer $4.07
Location: 32 Prev | Next Part: 131872 *Qty: 1 Hose Superseded
Location: 32 Prev | Next Part: 135960 *Qty: 1 Hose, complete $149.00
Location: 33 Prev | Next Part: 131873 *Qty: 2 Union $6.26
Location: 34 Prev | Next Part: 131874 *Qty: 4 Sealing ring Superseded
Location: 35 Prev | Next Part: 120929 *Qty: 1 Pipe Superseded
Location: 36 Prev | Next Part: 12179490 *Qty: 2 Clamp Superseded
Location: 37 Prev | Next Part: 110926 *Qty: 1 Pipe Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
