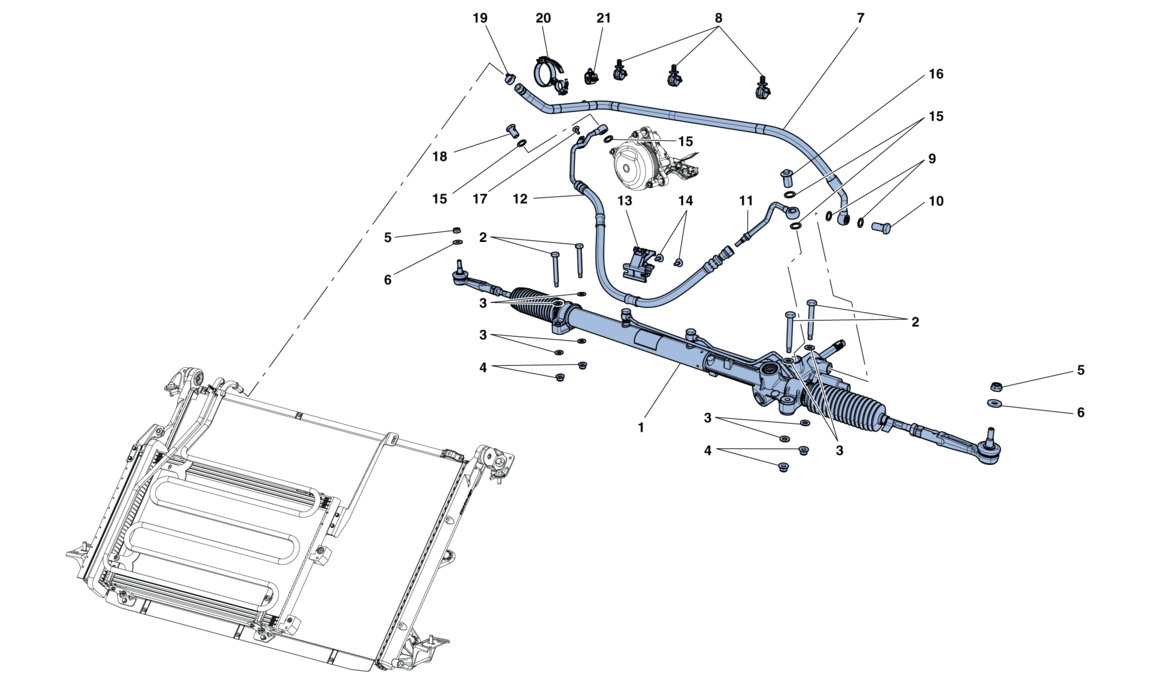

HYDRAULIC POWER STEERING BOX

Go to Split View

HYDRAULIC POWER STEERING BOX

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 303786 *Qty: 1 STEERING BOX -Not for RHD- $3,383.12
Location: 1 Prev | Next Part: 297461 *Qty: 1 STEERING BOX -Applicable for RHD- $3,722.44
Location: 1 Prev | Next Part: 304397 *Qty: 1 STEERING BOX -Applicable for sport pack- -Not for RHD- Unavailable
Location: 1 Prev | Next Part: 304424 *Qty: 1 STEERING BOX -Applicable for sport pack- -Applicable for RHD- Unavailable
Location: 2 Prev | Next Part: 277720 *Qty: 4 SCREW $4.75
Location: 3 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 4 Prev | Next Part: 14058621 *Qty: 4 NUT $0.90
Location: 5 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 12626224 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 294683 *Qty: 1 PIPE FROM STEERING BOX TO RADIATOR -Not for RHD- $134.05
Location: 7 Prev | Next Part: 296484 *Qty: 1 PIPE FROM STEERING BOX TO RADIATOR -Applicable for RHD- Unavailable
Location: 8 Prev | Next Part: 239094 *Qty: 3 CLIP -Not for RHD- $1.45
Location: 9 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 10 Prev | Next Part: 277407 *Qty: 1 CONNECTOR PIPE FOR UNION $10.59
Location: 11 Prev | Next Part: 304205 *Qty: 1 RIGID PIPE ON STEERING BOX -Not for RHD- $47.09
Location: 11 Prev | Next Part: 313028 *Qty: 1 RIGID PIPE ON STEERING BOX -Applicable for RHD- $54.20
Location: 12 Prev | Next Part: 302225 *Qty: 1 PIPE FROM PUMP TO STEERING BOX -Not for RHD- $224.63
Location: 12 Prev | Next Part: 313029 *Qty: 1 PIPE FROM PUMP TO STEERING BOX -Applicable for RHD- $382.60
Location: 13 Prev | Next Part: 304206 *Qty: 1 CLIP $12.22
Location: 14 Prev | Next Part: 81591700 *Qty: 2 SCREW $2.47
Location: 15 Prev | Next Part: 10257060 *Qty: 4 GASKET $0.90
Location: 16 Prev | Next Part: 276087 *Qty: 1 CONNECTOR PIPE FOR UNION $19.78
Location: 17 Prev | Next Part: 233600 *Qty: 1 SCREW $0.90
Location: 18 Prev | Next Part: 245041 *Qty: 1 PIPE UNION $51.13
Location: 19 Prev | Next Part: 13126070 *Qty: 1 RING CLAMP -No longer supplied- -Replaced by 13127070- $1.20
Location: 19 Prev | Next Part: 13127070 *Qty: 1 RING CLAMP $2.44
Location: 20 Prev | Next Part: 85141400 *Qty: 1 CLIP Unavailable
Location: 21 Prev | Next Part: 259508 *Qty: 1 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
