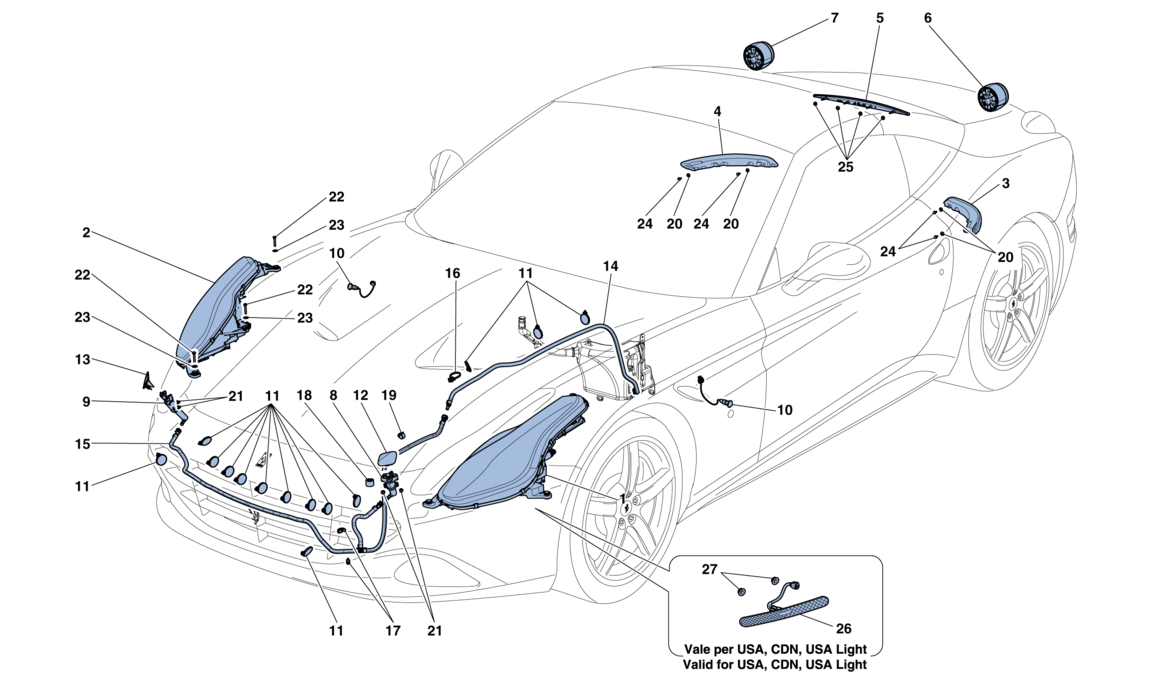

HEADLIGHTS AND TAILLIGHTS

Go to Split View

HEADLIGHTS AND TAILLIGHTS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 293285 *Qty: 1 LH HEADLAMP -Base- -Not for USA, CDN, J, RHD, USA LIGHT- Unavailable
Location: 1 Prev | Next Part: 302427 *Qty: 1 LH HEADLAMP -Base- -Applicable for USA, CDN, USA LIGHT- Unavailable
Location: 1 Prev | Next Part: 302432 *Qty: 1 LH HEADLAMP -Base- -Applicable for J, RHD- Unavailable
Location: 1 Prev | Next Part: 301549 *Qty: 1 LH HEADLAMP -AFS- -Not for USA, CDN, J, RHD, USA LIGHT- Unavailable
Location: 1 Prev | Next Part: 302429 *Qty: 1 LH HEADLAMP -AFS- -Applicable for USA, CDN, USA LIGHT- Unavailable
Location: 1 Prev | Next Part: 302434 *Qty: 1 LH HEADLAMP -AFS- -Applicable for J, RHD- Unavailable
Location: 2 Prev | Next Part: 293286 *Qty: 1 RH HEADLAMP -Base- -Not for USA, CDN, J, RHD, USA LIGHT- Unavailable
Location: 2 Prev | Next Part: 302428 *Qty: 1 RH HEADLAMP -Base- -Applicable for USA, CDN, USA LIGHT- Unavailable
Location: 2 Prev | Next Part: 302433 *Qty: 1 RH HEADLAMP -Base- -Applicable for J, RHD- Unavailable
Location: 2 Prev | Next Part: 301550 *Qty: 1 RH HEADLAMP -AFS- -Not for USA, CDN, J, RHD, USA LIGHT- Unavailable
Location: 2 Prev | Next Part: 302431 *Qty: 1 RH HEADLAMP -AFS- -Applicable for USA, CDN, USA LIGHT- Unavailable
Location: 2 Prev | Next Part: 302435 *Qty: 1 RH HEADLAMP -AFS- -Applicable for J, RHD- Unavailable
Location: 3 Prev | Next Part: 302299 *Qty: 1 LH TAILLIGHT, FIXED PART -Not for USA, CDN, USA LIGHT- $994.23
Location: 3 Prev | Next Part: 302986 *Qty: 1 LH TAILLIGHT, FIXED PART -Applicable for USA, CDN, USA LIGHT- $1,004.80
Location: 4 Prev | Next Part: 302300 *Qty: 1 RH TAILLIGHT, FIXED PART -Not for USA, CDN, USA LIGHT- $994.23
Location: 4 Prev | Next Part: 302987 *Qty: 1 RH TAILLIGHT, FIXED PART -Applicable for USA, CDN, USA LIGHT- $1,004.80
Location: 5 Prev | Next Part: 249848 *Qty: 1 COMPL. THIRD STOP LIGHT Unavailable
Location: 6 Prev | Next Part: 293287 *Qty: 1 LH TAILLIGHT, MOBILE PART $1,390.49
Location: 7 Prev | Next Part: 293289 *Qty: 1 RH TAILLIGHT, MOBILE PART $1,390.49
Location: 8 Prev | Next Part: 86309300 *Qty: 1 LH HEADLAMP WASHER $266.42
Location: 9 Prev | Next Part: 86309400 *Qty: 1 RH HEADLAMP WASHER $266.42
Location: 10 Prev | Next Part: 165558 *Qty: 2 LATERAL TURN INDICATOR $32.06
Location: 11 Prev | Next Part: 217854 *Qty: 14 CLIP Unavailable
Location: 12 Prev | Next Part: 85827910 *Qty: 1 LH HEADLAMP WASHER CAP $171.27
Location: 13 Prev | Next Part: 85828010 *Qty: 1 RH HEADLAMP WASHER CAP $171.27
Location: 14 Prev | Next Part: 86233400 *Qty: 1 PIPE FROM RESERVOIR TO SECTION $73.83
Location: 15 Prev | Next Part: 86233500 *Qty: 1 PIPE FROM SECTION TO SPRAY NOZZLES $127.10
Location: 16 Prev | Next Part: 69708300 *Qty: 1 CLIP $1.54
Location: 17 Prev | Next Part: 86224600 *Qty: 2 RING CLAMP $1.02
Location: 18 Prev | Next Part: 254315 *Qty: 1 RUBBER PAD Unavailable
Location: 19 Prev | Next Part: 206536 *Qty: 1 CLIP Unavailable
Location: 20 Prev | Next Part: 12643701 *Qty: 4 WASHER Superseded
Location: 21 Prev | Next Part: 16286024 *Qty: 4 SCREW Unavailable
Location: 22 Prev | Next Part: 11628524 *Qty: 8 SCREW $1.61
Location: 23 Prev | Next Part: 12625224 *Qty: 8 WASHER Unavailable
Location: 24 Prev | Next Part: 86574700 *Qty: 4 SCREW Unavailable
Location: 25 Prev | Next Part: 12625224 *Qty: 4 WASHER Unavailable
Location: 26 Prev | Next Part: 233797 *Qty: 2 FRONT SIDE MARKER -Applicable for USA, CDN, USA LIGHT- $200.92
Location: 27 Prev | Next Part: 12578011 *Qty: 2 NUT -Applicable for USA, CDN, USA LIGHT- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
