WHEELHOUSINGS

Go to Split View

WHEELHOUSINGS

in cart
Go to Split View

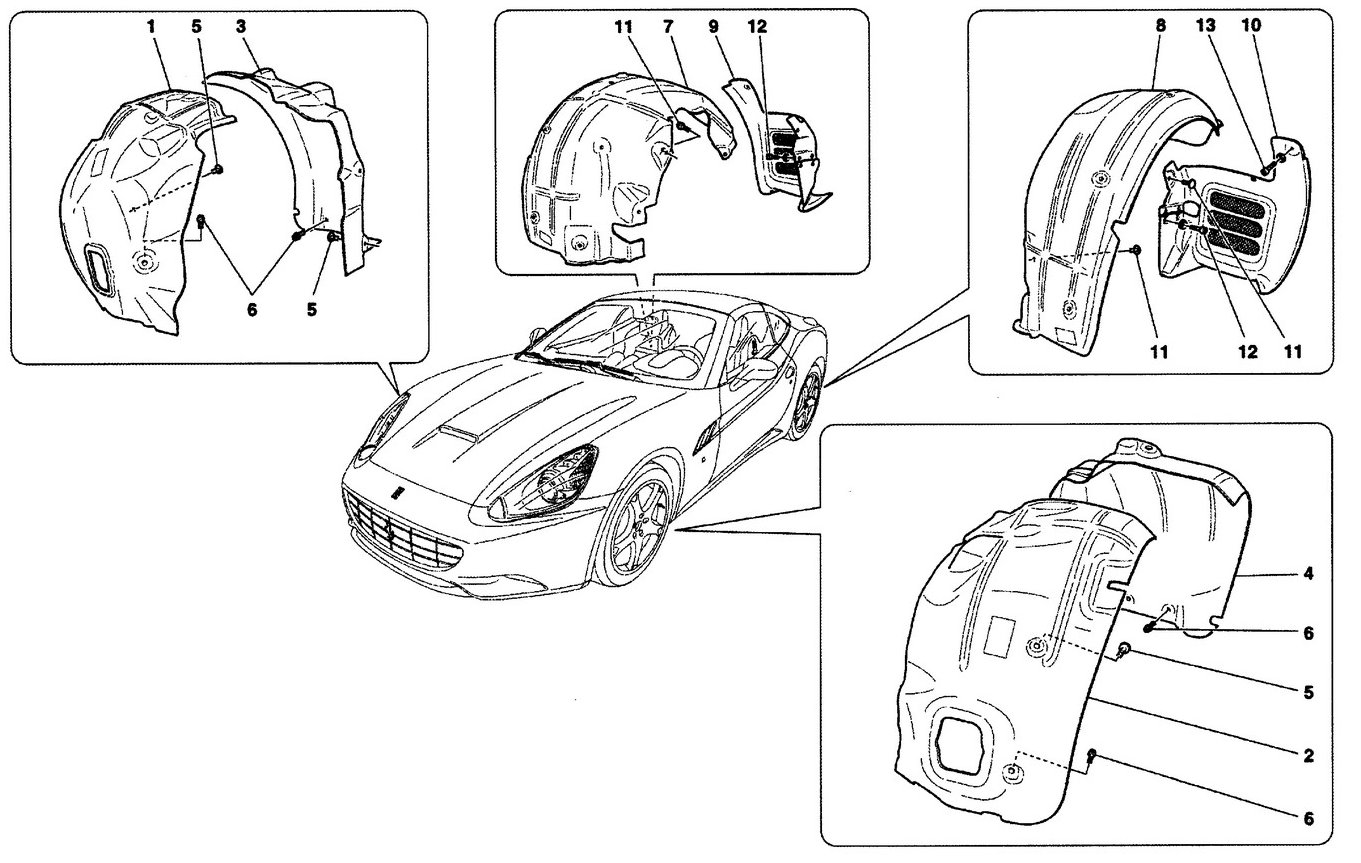

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 69748400 *Qty: 1 FRONT GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE $163.72
Location: 2 Prev | Next Part: 69748500 *Qty: 1 FRONT GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE $160.50
Location: 3 Prev | Next Part: 69748600 *Qty: 1 FRONT GRAVEL GUARD FOR R.H. REAR WHEEL $137.73
Location: 4 Prev | Next Part: 69748700 *Qty: 1 FRONT GRAVEL GUARD FOR L.H. REAR WHEEL $137.73
Location: 5 Prev | Next Part: 80873600 *Qty: 4 FIXING BUTTON Unavailable
Location: 6 Prev | Next Part: 80874900 *Qty: 6 SCREW $1.23
Location: 7 Prev | Next Part: 69749300 *Qty: 1 REAR GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE $137.63
Location: 8 Prev | Next Part: 69749200 *Qty: 1 REAR GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE $137.63
Location: 9 Prev | Next Part: 69748800 *Qty: 1 REAR GRAVEL GUARD FOR R.H. REAR WHEEL $188.45
Location: 10 Prev | Next Part: 69748900 *Qty: 1 REAR GRAVEL GUARD FOR L.H. REAR WHEEL $188.45
Location: 11 Prev | Next Part: 80873600 *Qty: 10 FIXING BUTTON Unavailable
Location: 12 Prev | Next Part: 80874100 *Qty: 16 SCREW $1.19
Location: 13 Prev | Next Part: 80874900 *Qty: 6 SCREW $1.23

* Quantity shown indicates the number of pieces used in the diagram.
