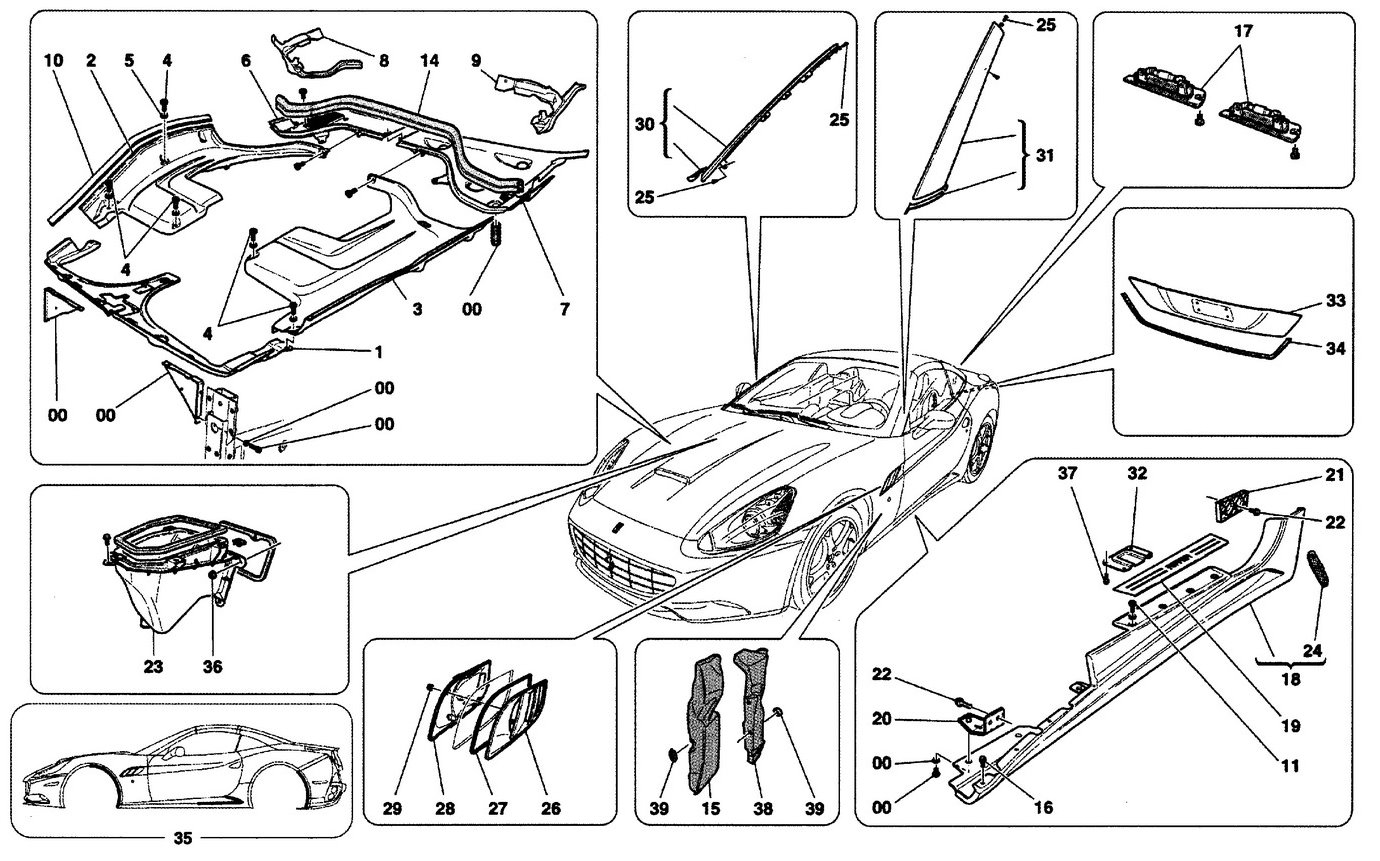

SHIELDS, TRIMS AND COVERING PANELS

Go to Split View

SHIELDS, TRIMS AND COVERING PANELS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 81049400 *Qty: 1 ENGINE COMPARTMENT CENTRAL COVER -Standard- $622.60
Location: 1 Prev | Next Part: 82092400 *Qty: 1 ENGINE COMPARTMENT CENTRAL COVER -Carbon- $4,775.42
Location: 2 Prev | Next Part: 81964200 *Qty: 1 R.H. COVER FOR ENGINE COMPARTMENT -Standard- $575.98
Location: 2 Prev | Next Part: 82092500 *Qty: 1 R.H. COVER FOR ENGINE COMPARTMENT -Carbon- $5,767.40
Location: 3 Prev | Next Part: 81964300 *Qty: 1 L.H. COVER FOR ENGINE COMPARTMENT -Standard- $519.00
Location: 3 Prev | Next Part: 82092600 *Qty: 1 L.H. COVER FOR ENGINE COMPARTMENT -Carbon- $5,767.40
Location: 4 Prev | Next Part: 69854700 *Qty: 24 SCREW $4.42
Location: 5 Prev | Next Part: 67315400 *Qty: 14 WASHER $0.90
Location: 6 Prev | Next Part: 69889300 *Qty: 1 R.H. TAIL WINDSHIELD PLATE -Not for RHD- $457.62
Location: 6 Prev | Next Part: 80834600 *Qty: 1 R.H. TAIL WINDSHIELD PLATE -Valid for RHD- Unavailable
Location: 7 Prev | Next Part: 69755100 *Qty: 1 L.H. TAIL WINDSHIELD PLATE -Not for RHD- $457.62
Location: 7 Prev | Next Part: 80834800 *Qty: 1 L.H. TAIL WINDSHIELD PLATE -Valid for RHD- $741.67
Location: 8 Prev | Next Part: 69932500 *Qty: 1 R.H. UNDER WINDSHIELD PLATE GASKET -Not for RHD- $79.51
Location: 8 Prev | Next Part: 81482200 *Qty: 1 R.H. UNDER WINDSHIELD PLATE GASKET -Valid for RHD- $77.95
Location: 9 Prev | Next Part: 69932800 *Qty: 1 L.H. UNDER WINDSHIELD PLATE GASKET -Not for RHD- $55.13
Location: 9 Prev | Next Part: 81482300 *Qty: 1 L.H. UNDER WINDSHIELD PLATE GASKET -Valid for RHD- $77.95
Location: 10 Prev | Next Part: 69932600 *Qty: 1 R.H. LATERAL GASKET $45.39
Location: 10 Prev | Next Part: 69932900 *Qty: 1 L.H. LATERAL GASKET $45.39
Location: 11 Prev | Next Part: 80874200 *Qty: 10 SCREW $0.97
Location: 12 Prev | Next Part: 68119800 *Qty: 2 PLATE -Image not available- $1.63
Location: 13 Prev | Next Part: 10397280 *Qty: 2 CABLE GROMMET -Image not available- $0.90
Location: 14 Prev | Next Part: 82112500 *Qty: 1 HOOD BONNET GASKET -Not as spare part- -Replaced by 82112500- $94.76
Location: 14 Prev | Next Part: 82112500 *Qty: 1 BONNET GASKET $94.76
Location: 15 Prev | Next Part: 81791300 *Qty: 1 L.H. INSULATION -Not for RHD- Unavailable
Location: 15 Prev | Next Part: 81791200 *Qty: 1 R.H. INSULATION -Not for RHD- Unavailable
Location: 15 Prev | Next Part: 81791500 *Qty: 1 L.H. INSULATION -Valid for RHD- $38.01
Location: 15 Prev | Next Part: 81791400 *Qty: 1 R.H. INSULATION -Valid forRHD- $38.01
Location: 16 Prev | Next Part: 80874100 *Qty: 8 SCREW $1.19
Location: 17 Prev | Next Part: 186180 *Qty: 2 REAR NUMBER PLATE LAMP -Not as spare part- -Replaced by 186180- $14.26
Location: 17 Prev | Next Part: 186180 *Qty: 2 REAR NUMBER PLATE LAMP $14.26
Location: 18 Prev | Next Part: 80855110 *Qty: 1 L.H. CROSSMEMBER COVER $909.03
Location: 18 Prev | Next Part: 81819500 *Qty: 1 L.H. CROSSMEMBER COVER -Carbon fibre trim- $8,636.70
Location: 18 Prev | Next Part: 80855210 *Qty: 1 R.H. CROSSMEMBER COVER $909.03
Location: 18 Prev | Next Part: 81819600 *Qty: 1 R.H. CROSSMEMBER COVER -Carbon fibre trim- $8,636.70
Location: 19 Prev | Next Part: 69749900 *Qty: 1 LH. KICK PLATE $257.48
Location: 19 Prev | Next Part: 81555600 *Qty: 1 COMPLETE L.H. KICK PLATE -Carbon fibre trim- $1,868.60
Location: 19 Prev | Next Part: 69749800 *Qty: 1 R.H. KICK PLATE $257.48
Location: 19 Prev | Next Part: 81555700 *Qty: 1 COMPLETE R.H. KICK PLATE -Carbon fibre trim- $1,868.60
Location: 20 Prev | Next Part: 80771900 *Qty: 2 FRONT BRACKET $112.16
Location: 21 Prev | Next Part: 69870300 *Qty: 1 L.H. REAR BRACKET $15.25
Location: 21 Prev | Next Part: 69870200 *Qty: 1 R.H. REAR BRACKET $15.25
Location: 22 Prev | Next Part: 11625821 *Qty: 8 SCREW $0.90
Location: 23 Prev | Next Part: 81769900 *Qty: 1 COMPLETE STEP -Not for RHD- $230.94
Location: 23 Prev | Next Part: 81770000 *Qty: 1 COMPLETE STEP -Valid for RHD- Unavailable
Location: 24 Prev | Next Part: 80865900 *Qty: 1 LH SILL TRIM PANEL GRILLE -Not for version with carbon fibre trim- $162.16
Location: 24 Prev | Next Part: 80866000 *Qty: 1 RH SILL TRIM PANEL GRILLE -Not for version with carbon fibre trim- $162.16
Location: 25 Prev | Next Part: 15534409 *Qty: 8 SCREW $0.99
Location: 25 Prev | Next Part: 64460500 *Qty: 2 SCREW $1.29
Location: 26 Prev | Next Part: 81283910 *Qty: 1 LH. GRILL -Plastic- Unavailable
Location: 26 Prev | Next Part: 81284010 *Qty: 1 R.H. GRILL-Plastic- Unavailable
Location: 26 Prev | Next Part: 82036210 *Qty: 1 L.H. GRILL -In aluminium- $593.43
Location: 26 Prev | Next Part: 82036810 *Qty: 1 R.H. GRILL -In aluminium- $593.43
Location: 27 Prev | Next Part: 81045800 *Qty: 1 L.H. GASKET -Applicable for plastic grille- -Released with grille 81283910- $31.44
Location: 27 Prev | Next Part: 81045900 *Qty: 1 R.H. GASKET -Applicable for plastic grille- -Released with grille 81284010- $31.44
Location: 27 Prev | Next Part: 82036100 *Qty: 1 L.H. GASKET -Applicable for aluminium grille- -Released with grille 82036210- $11.68
Location: 27 Prev | Next Part: 82036700 *Qty: 1 R.H. GASKET -Applicable for aluminium grille- -Released with grille 82036810- $46.22
Location: 28 Prev | Next Part: 81046000 *Qty: 1 L.H. GRILL BOX -Applicable for plastic grille- $189.39
Location: 28 Prev | Next Part: 81046100 *Qty: 1 R.H. GRILL BOX -Applicable for plastic grille- $189.39
Location: 28 Prev | Next Part: 82036000 *Qty: 1 L.H. GRILL BOX -Applicable for aluminium grille- $18.98
Location: 28 Prev | Next Part: 82036600 *Qty: 1 R.H. GRILL BOX -Applicable for aluminium grille- $18.98
Location: 29 Prev | Next Part: 14084211 *Qty: 8 NUT $0.90
Location: 30 Prev | Next Part: 69830110 *Qty: 1 COMPLETE FRONT R.H. POST COVERING $1,044.13
Location: 31 Prev | Next Part: 69830210 *Qty: 1 COMPLETE FRONT L.H. POST COVERING $1,044.13
Location: 32 Prev | Next Part: 81370300 *Qty: 2 CAR LIFTING BRACKET $21.60
Location: 33 Prev | Next Part: 81855400 *Qty: 1 PLATE -Standard- Unavailable
Location: 33 Prev | Next Part: 82224500 *Qty: 1 PLATE -Carbon- $2,135.75
Location: 34 Prev | Next Part: 81855500 *Qty: 1 GASKET Unavailable
Location: 35 Prev | Next Part: 70001406 *Qty: 1 COMPLETE ANTI-STONE CHIPPING KIT -Not for USA and CDN- Unavailable
Location: 35 Prev | Next Part: 70001436 *Qty: 1 COMPLETE ANTI-STONE CHIPPING KIT -Valid for USA and CDN- $8.00
Location: 35 Prev | Next Part: 70001407 *Qty: 1 LH. SIDE PROTECTION FILMS KIT $1,495.89
Location: 35 Prev | Next Part: 70001408 *Qty: 1 R.H. SIDE PROTECTION FILMS KIT $1,495.89
Location: 35 Prev | Next Part: 70001409 *Qty: 1 FRONTAL ANTI-STONE CHIPPING KIT -Not for USA and CDN- $1,772.33
Location: 35 Prev | Next Part: 70001437 *Qty: 1 FRONTAL ANTI-STONE CHIPPING KIT -Valid for USA and CDN- $8.00
Location: 36 Prev | Next Part: 15896414 *Qty: 4 NUT $0.90
Location: 37 Prev | Next Part: 16287224 *Qty: 8 SCREW Superseded
Location: 38 Prev | Next Part: 69816200 *Qty: 1 INNER RH FENDER SOUNDPROOFING $309.11
Location: 38 Prev | Next Part: 69816300 *Qty: 1 INNER LH FENDER SOUNDPROOFING $7.00
Location: 39 Prev | Next Part: 67315400 *Qty: 6 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
