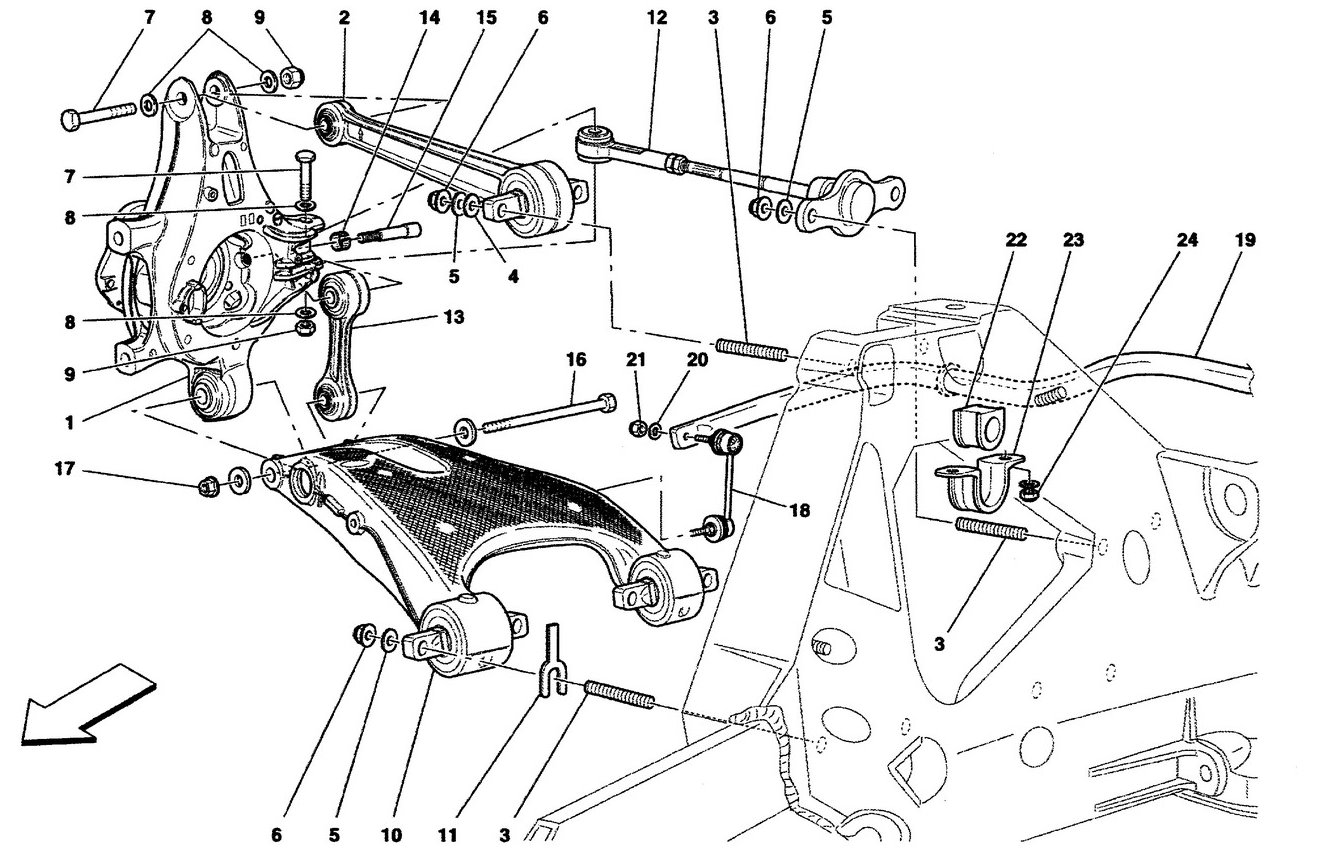

REAR SUSPENSION

Location	Part #	Quantity*	Description	Price	Add To Cart
1	238471	1	COMPLETE R.H. REAR HUB HOLDER		Superseded
1	238469	1	COMPLETE L.H. REAR HUB HOLDER		Superseded
2	259014	2	COMPLETE REAR UPPER LEVER -Not as spare part- -Replaced by 259014-	$407.04
2	259014	2	COMPLETE REAR UPPER LEVER	$407.04
3	249294	16	THREADED BAR	$12.16
4	12646821	4	WASHER		Unavailable
5	14496624	16	WASHER	$0.90
6	203657	16	NUT	$2.84
7	15541434	4	SCREW	$2.88
8	14496721	8	WASHER		Unavailable
9	203666	4	NUT	$1.26
10	245701	1	COMPLETE R.H. REAR LOWER LEVER -Valid till stock exhaustion-	$832.66
10	259000	1	COMPLETE R.H. REAR LOWER LEVER-Applicable after depletion of 245701-	$1,586.14
10	245700	1	COMPLETE L.H. REAR LOWER LEVER -Valid till stock exhaustion-	$1,510.58
10	258999	1	COMPLETE L.H. REAR LOWER LEVER -Applicable after depletion of 245700-	$1,438.66
11	238692	8	SPACER -Thickness mm. 0,50-	$8.81
11	238693	8	SPACER -Thickness mm. 1,00-	$7.15
11	238881	8	SPACER -Thickness mm. 1,50-	$7.15
11	238694	8	SPACER -Thickness mm. 2,00-	$7.15
11	238882	8	SPACER -Thickness mm. 2,50-	$7.15
11	238883	8	SPACER -Thickness mm. 3,00-	$7.15
11	238884	8	SPACER -Thickness mm. 3,50-	$7.15
11	238885	8	SPACER -Thickness mm. 4,00-	$7.15
12	238631	2	CONVERGENCY REGOLATION TIE ROD	$396.84
13	236783	2	ANTI-ROTATION BRAKE HANGER	$115.63
14	222956	2	COMPENSATOR RING		Unavailable
15	238258	2	SCREW	$44.13
16	238656	2	SPECIAL SCREW	$31.95
17	238063	2	NUT	$5.16
18	242391	1	R.H. BALL TIE ROD	$132.84
18	242392	1	L.H. BALL TIE ROD	$132.84
19	250810	1	REAR ANTI-ROLL BAR	$341.18
20	12601474	2	WASHER		Unavailable
21	12164714	2	NUT	$0.90
22	247743	2	PAD	$24.14
23	244778	2	PAD FASTENING PLATE	$25.86
24	12578321	4	NUT		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
