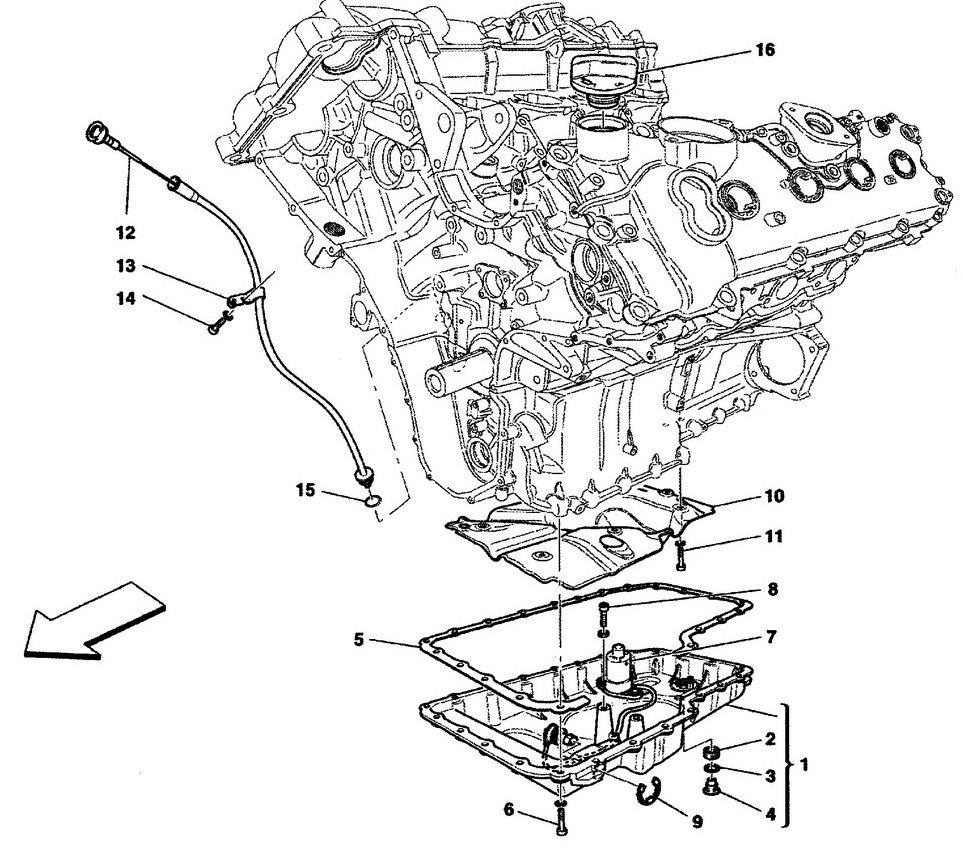

LUBRICATION SYSTEM: CIRCUIT AND COLLECTION

Go to Split View

LUBRICATION SYSTEM: CIRCUIT AND COLLECTION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 240052 *Qty: 1 COMPLETE OIL SUMP $512.46
Location: 2 Prev | Next Part: 223577 *Qty: 1 THREADED INSERT $2.54
Location: 3 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 4 Prev | Next Part: 104280 *Qty: 1 THREADED PLUG $5.72
Location: 5 Prev | Next Part: 238672 *Qty: 1 OIL SUMP GASKET $48.91
Location: 6 Prev | Next Part: 231618 *Qty: 24 SCREW $0.90
Location: 7 Prev | Next Part: 230171 *Qty: 1 OIL LEVEL DETECTOR $45.02
Location: 8 Prev | Next Part: 231625 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 16165276 *Qty: 1 FLEXIBLE RING $0.90
Location: 10 Prev | Next Part: 251166 *Qty: 1 OIL SUMP SHIELD $83.13
Location: 11 Prev | Next Part: 231616 *Qty: 6 SCREW $0.90
Location: 12 Prev | Next Part: 250940 *Qty: 1 OIL LEVEL ROD -Not for RHD- $209.34
Location: 12 Prev | Next Part: 250954 *Qty: 1 OIL LEVEL ROD -Valid for RHD- $26.06
Location: 13 Prev | Next Part: 250808 *Qty: 1 OIL LEVEL ROD EXTENTION -Not for RHD- $103.60
Location: 13 Prev | Next Part: 252371 *Qty: 1 OIL LEVEL ROD EXTENTION -Valid for RHD- $310.66
Location: 14 Prev | Next Part: 231616 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 159871 *Qty: 1 SEAL RING $0.90
Location: 16 Prev | Next Part: 247720 *Qty: 1 OIL PLUG $26.62
Location: 17 Prev | Next Part: 243231 *Qty: 1 BRACKET -Image not available- $6.00

* Quantity shown indicates the number of pieces used in the diagram.
