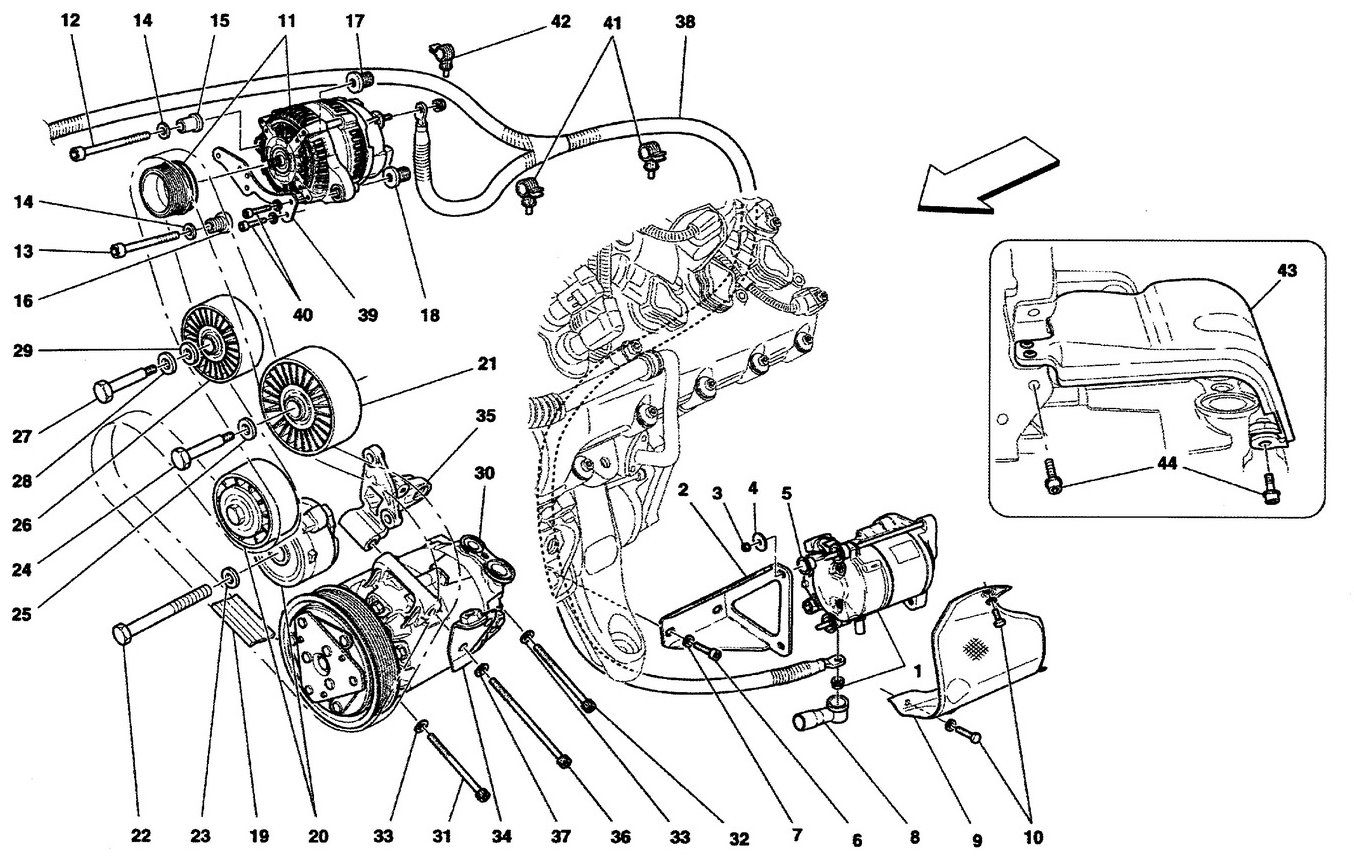

ALTERNATOR STARTING MOTOR AND AC COMPRESSOR

Go to Split View

ALTERNATOR STARTING MOTOR AND AC COMPRESSOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 252087 *Qty: 1 STARTER MOTOR $747.19
Location: 2 Prev | Next Part: 248066 *Qty: 1 BRACKET $36.25
Location: 3 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 127493 *Qty: 2 WASHER Superseded
Location: 5 Prev | Next Part: 215645 *Qty: 2 BUSHING $3.99
Location: 6 Prev | Next Part: 248334 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 14498824 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 124683 *Qty: 1 PROTECTION BOOT $0.90
Location: 9 Prev | Next Part: 251293 *Qty: 1 ANTI-HEAT SHIELD $143.22
Location: 10 Prev | Next Part: 231618 *Qty: 3 SCREW $0.90
Location: 11 Prev | Next Part: 250365 *Qty: 1 ALTERNATOR $887.65
Location: 12 Prev | Next Part: 14308724 *Qty: 1 SCREW $4.10
Location: 13 Prev | Next Part: 14308024 *Qty: 1 SCREW $1.10
Location: 14 Prev | Next Part: 10569474 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 247088 *Qty: 1 BUSHING $7.03
Location: 16 Prev | Next Part: 253732 *Qty: 1 THREADED BUSHING Call
Location: 17 Prev | Next Part: 247087 *Qty: 1 THREADED BUSHING Call
Location: 18 Prev | Next Part: 244781 *Qty: 1 THREADED BUSHING $20.52
Location: 19 Prev | Next Part: 250070 *Qty: 1 COMPRESSOR CONTROL BELT $43.17
Location: 20 Prev | Next Part: 224178 *Qty: 1 BELT TIGHTENER $63.64
Location: 21 Prev | Next Part: 227894 *Qty: 1 BELT TIGHTENING PULLEY $71.06
Location: 22 Prev | Next Part: 16044431 *Qty: 1 SCREW $0.90
Location: 23 Prev | Next Part: 11193874 *Qty: 1 WASHER $0.90
Location: 24 Prev | Next Part: 11343821 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 10569474 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 226205 *Qty: 1 BELT TIGHTENING PULLEY $49.78
Location: 27 Prev | Next Part: 16043324 *Qty: 1 SCREW $0.90
Location: 28 Prev | Next Part: 11193974 *Qty: 1 WASHER $0.90
Location: 29 Prev | Next Part: 12647024 *Qty: 1 WASHER Superseded
Location: 30 Prev | Next Part: 248979 *Qty: 1 AIR CONDITIONING COMPRESSOR $5.00
Location: 31 Prev | Next Part: 243936 *Qty: 1 SCREW $2.59
Location: 32 Prev | Next Part: 14307124 *Qty: 1 SCREW $0.90
Location: 33 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 250238 *Qty: 1 OUTER SHIELD SUPPORT BRACKET $16.53
Location: 35 Prev | Next Part: 250239 *Qty: 1 CRANKCASE SHIELD SUPPORT BRACKET $10.04
Location: 36 Prev | Next Part: 246208 *Qty: 1 SCREW Call
Location: 37 Prev | Next Part: 11186374 *Qty: 1 WASHER $1.22
Location: 38 Prev | Next Part: 251229 *Qty: 1 CABLE FROM ALTERNATOR TO STARTER MOTOR $6.00
Location: 39 Prev | Next Part: 247169 *Qty: 1 ALTERNATOR BRACKET STIFFENER Call
Location: 40 Prev | Next Part: 231620 *Qty: 5 SCREW $0.90
Location: 41 Prev | Next Part: 246723 *Qty: 2 CLIP -d.20- $0.90
Location: 42 Prev | Next Part: 246722 *Qty: 1 CLIP-d.23- $1.34
Location: 43 Prev | Next Part: 253024 *Qty: 1 ANTI-HEAT SHIELD $72.64
Location: 44 Prev | Next Part: 231616 *Qty: 2 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
