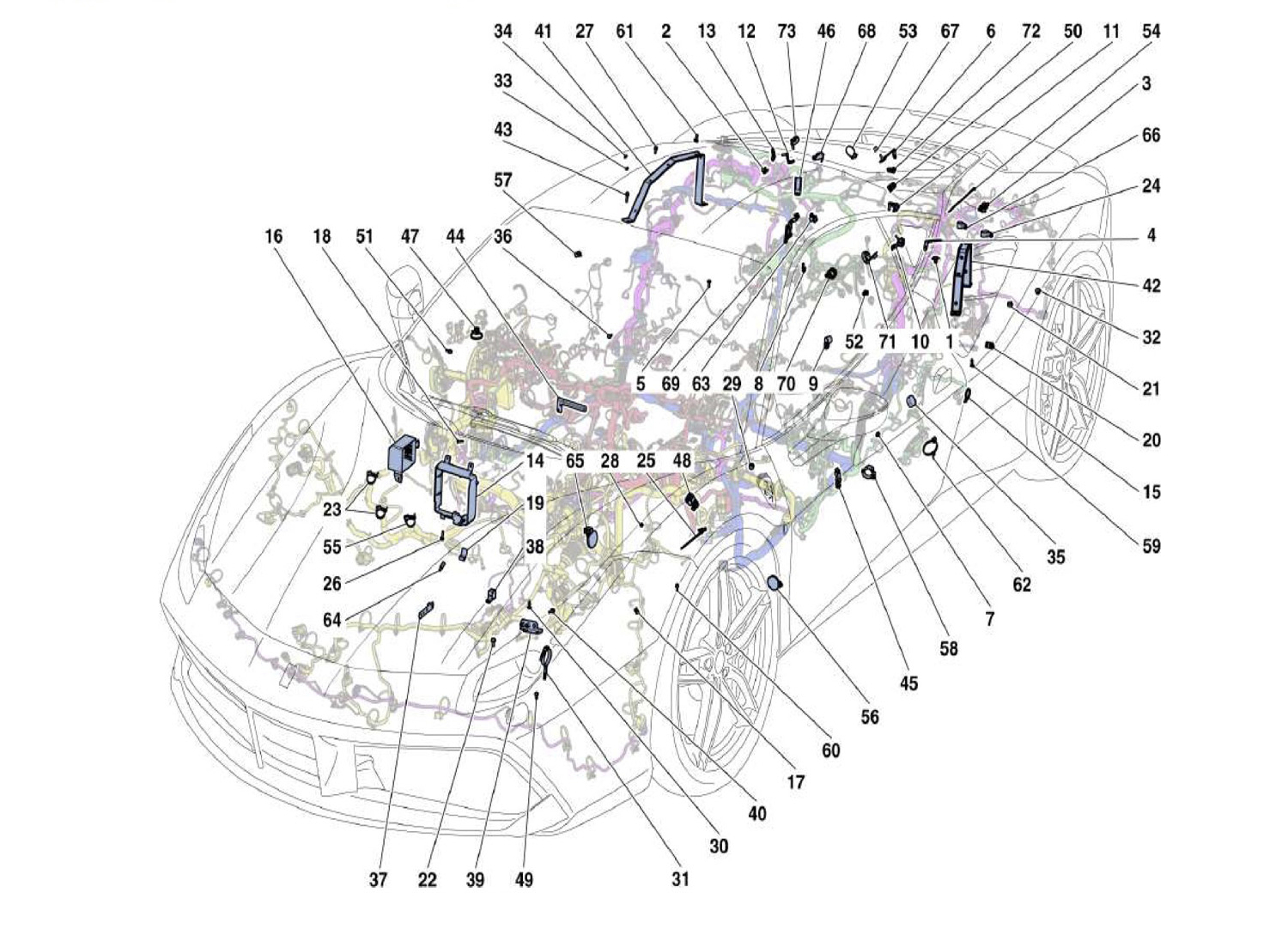

WIRING – FASTERNERS AND CLIPS

Go to Split View

WIRING – FASTERNERS AND CLIPS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 253769 *Qty: 2 CLIP $0.90
Location: 2 Prev | Next Part: 252473 *Qty: 2 CLIP $1.93
Location: 3 Prev | Next Part: 191904 *Qty: 2 CLIP $0.90
Location: 4 Prev | Next Part: 320192 *Qty: 2 OXYGEN SENSOR CONNECTOR FASTENER BRACKET $11.56
Location: 5 Prev | Next Part: 85629300 *Qty: 2 SCREW -M6 X 20- $0.90
Location: 6 Prev | Next Part: 307852 *Qty: 1 CABLE MOUNTING BRACKET $23.29
Location: 7 Prev | Next Part: 233600 *Qty: 2 SCREW -M6 X 12- $0.90
Location: 8 Prev | Next Part: 262530 *Qty: 1 CLIP $0.90
Location: 9 Prev | Next Part: 244221 *Qty: 1 CLIP $5.02
Location: 10 Prev | Next Part: 314110 *Qty: 1 ANCILLARY CABLE FASTENER BRACKET $27.61
Location: 11 Prev | Next Part: 318365 *Qty: 1 COMPL. INJECTION CABLE FASTENER BRACKET $23.29
Location: 12 Prev | Next Part: 318174 *Qty: 1 INJECTION CABLE FASTENER BRACKET $20.71
Location: 13 Prev | Next Part: 244216 *Qty: 1 CLIP $4.75
Location: 14 Prev | Next Part: 86174000 *Qty: 1 SCM SURROUND $13.80
Location: 15 Prev | Next Part: 85692300 *Qty: 2 SCREW -M5 X 20- Unavailable
Location: 16 Prev | Next Part: 256613 *Qty: 1 MAXI RELAY MOUNTING -Not for GD- $19.07
Location: 16 Prev | Next Part: 82784000 *Qty: 1 MAXI RELAY MOUNTING -Applicable for GD- $9.09
Location: 17 Prev | Next Part: 67278400 *Qty: 1 BRACKET $12.46
Location: 18 Prev | Next Part: 169815 *Qty: 2 SCREW -M5 X 20- Unavailable
Location: 19 Prev | Next Part: 263561 *Qty: 1 FOAM $1.23
Location: 20 Prev | Next Part: 303365 *Qty: 2 CLIP $1.40
Location: 21 Prev | Next Part: 14569880 *Qty: 4 CLIP $0.90
Location: 22 Prev | Next Part: 16287024 *Qty: 1 SCREW -M8 X 16- $0.90
Location: 23 Prev | Next Part: 145854 *Qty: 2 RING CLAMP -Not for GD- $0.90
Location: 24 Prev | Next Part: 149773 *Qty: 1 CLIP $0.90
Location: 25 Prev | Next Part: 303339 *Qty: 4 CLIP Unavailable
Location: 26 Prev | Next Part: 16286124 *Qty: 3 SCREW -M6 X 20- $0.90
Location: 27 Prev | Next Part: 231617 *Qty: 2 SCREW -M6 X 18- $0.90
Location: 28 Prev | Next Part: 12642821 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 12578211 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 216847 *Qty: 2 CLIP $2.44
Location: 31 Prev | Next Part: 231214 *Qty: 2 CLIP -Not for GD- $1.58
Location: 31 Prev | Next Part: 325313 *Qty: 2 CLIP -Applicable for GD- $1.32
Location: 32 Prev | Next Part: 14040514 *Qty: 2 NUT $0.90
Location: 33 Prev | Next Part: 14084111 *Qty: 1 NUT $0.90
Location: 34 Prev | Next Part: 149951 *Qty: 1 WASHER Superseded
Location: 35 Prev | Next Part: 83263300 *Qty: 1 EXTERNAL DOOR WINDOW RETAINER $1.86
Location: 36 Prev | Next Part: 16285124 *Qty: 1 SCREW -M5 X 16- $0.90
Location: 37 Prev | Next Part: 277002 *Qty: 1 BRACKET -Up to Ass.ly No. 132709 $19.31
Location: 38 Prev | Next Part: 246915 *Qty: 1 CLIP $0.90
Location: 39 Prev | Next Part: 312867 *Qty: 1 BRACKET -Not for GD- -Applicable until depletion- Unavailable
Location: 39 Prev | Next Part: 322712 *Qty: 1 BRACKET -Not for GD- -Applicable after depletion of 312867 $18.12
Location: 39 Prev | Next Part: 325184 *Qty: 1 BRACKET -Applicable for GD- $22.43
Location: 40 Prev | Next Part: 16286127 *Qty: 2 SCREW -M6 X 20- $0.90
Location: 41 Prev | Next Part: 314607 *Qty: 1 TURBO OVERPASS BRACKET FOR RH REAR CABLE $40.55
Location: 42 Prev | Next Part: 314606 *Qty: 1 TURBO OVERPASS BRACKET FOR LH REAR CABLE $51.77
Location: 43 Prev | Next Part: 231620 *Qty: 4 SCREW -M6 X 25- $0.90
Location: 44 Prev | Next Part: 312615 *Qty: 1 TANK WIRING HARNESS PROTECTION BRACKET $13.11
Location: 45 Prev | Next Part: 284622 *Qty: 1 CLIP Unavailable
Location: 46 Prev | Next Part: 10451090 *Qty: 1 BRACKET WITH SHEATH $1.32
Location: 47 Prev | Next Part: 69708300 *Qty: 2 CLIP $1.51
Location: 48 Prev | Next Part: 248061 *Qty: 1 CLIP $2.34
Location: 49 Prev | Next Part: 231616 *Qty: 17 SCREW -M6 X 14- $0.90
Location: 50 Prev | Next Part: 244218 *Qty: 8 CLIP $4.83
Location: 51 Prev | Next Part: 248334 *Qty: 7 SCREW -M6 X 16- Superseded
Location: 52 Prev | Next Part: 244219 *Qty: 3 CLIP $4.96
Location: 53 Prev | Next Part: 69850100 *Qty: 2 CLIP $1.07
Location: 54 Prev | Next Part: 145854 *Qty: 68 RING CLAMP $0.90
Location: 55 Prev | Next Part: 279762 *Qty: 32 RING CLAMP $0.90
Location: 56 Prev | Next Part: 217854 *Qty: 44 CLIP $0.90
Location: 57 Prev | Next Part: 266000 *Qty: 4 CLIP $1.05
Location: 58 Prev | Next Part: 254078 *Qty: 4 CLIP $1.98
Location: 59 Prev | Next Part: 10815787 *Qty: 24 RING CLAMP Unavailable
Location: 60 Prev | Next Part: 16281827 *Qty: 4 SCREW -M5 X 14- Unavailable
Location: 61 Prev | Next Part: 11625824 *Qty: 6 SCREW -M6 X 18- $0.90
Location: 62 Prev | Next Part: 318547 *Qty: 4 RING CLAMP $2.24
Location: 63 Prev | Next Part: 260064 *Qty: 4 RING CLAMP $0.90
Location: 64 Prev | Next Part: 212519 *Qty: 2 STUD BOLT $6.97
Location: 65 Prev | Next Part: 242384 *Qty: 4 RING CLAMP $0.90
Location: 66 Prev | Next Part: 244223 *Qty: 2 CLIP $5.34
Location: 67 Prev | Next Part: 228265 *Qty: 1 NUT $0.90
Location: 68 Prev | Next Part: 323246 *Qty: 1 INJECTION CABLE FASTENER BRACKET $18.98
Location: 69 Prev | Next Part: 322913 *Qty: 1 INJECTION CABLE FASTENER BRACKET $34.51
Location: 70 Prev | Next Part: 10442190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 71 Prev | Next Part: 322840 *Qty: 1 COMPL. ANCILLARIES CABLE FASTENER BRACKET $31.23
Location: 72 Prev | Next Part: 323247 *Qty: 1 INJECTION CABLE FASTENER BRACKET $22.43
Location: 73 Prev | Next Part: 323248 *Qty: 1 INJECTION CABLE FASTENER BRACKET $22.43

* Quantity shown indicates the number of pieces used in the diagram.
