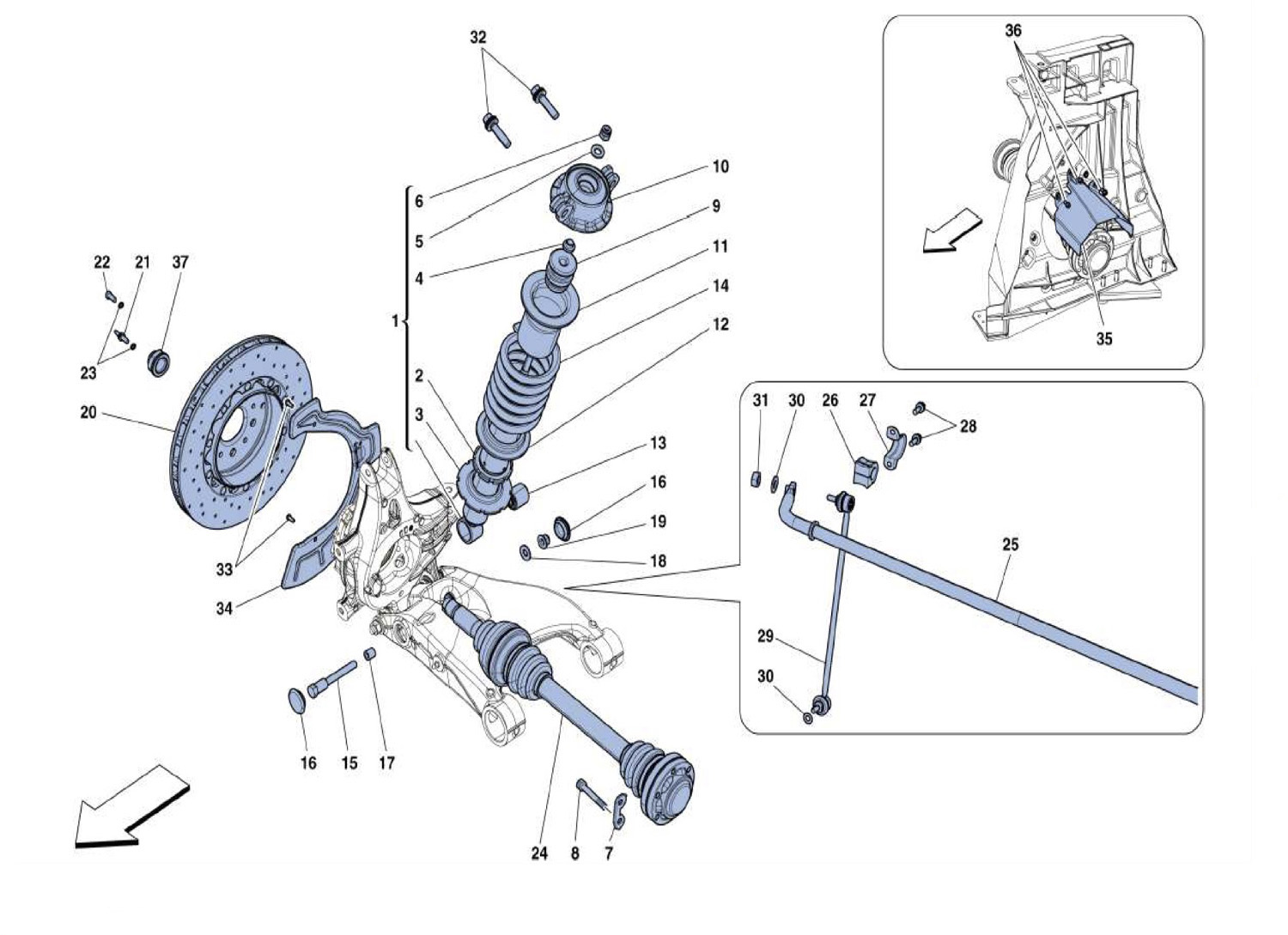

REAR SUSPENSION – SHOCKS ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION – SHOCKS ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 317751 *Qty: 2 REAR SHOCK ABSORBER $1,707.21
Location: 2 Prev | Next Part: 220351 *Qty: 2 RING NUT $50.80
Location: 3 Prev | Next Part: 286402 *Qty: 2 SPRING RETAINER $152.52
Location: 4 Prev | Next Part: 220383 *Qty: 2 BUSHING $38.12
Location: 5 Prev | Next Part: 220377 *Qty: 2 WASHER $8.65
Location: 6 Prev | Next Part: 220378 *Qty: 2 NUT $5.37
Location: 7 Prev | Next Part: 220325 *Qty: 6 SHIM PLATE $4.29
Location: 8 Prev | Next Part: 237590 *Qty: 12 SCREW $5.30
Location: 9 Prev | Next Part: 281221 *Qty: 2 ENDSTOP BUSH $34.32
Location: 10 Prev | Next Part: 250394 *Qty: 2 STOP CAP $243.76
Location: 11 Prev | Next Part: 212517 *Qty: 2 UPPER SPACER $10.68
Location: 12 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER $13.86
Location: 13 Prev | Next Part: 157630 *Qty: 2 SHOCK ABSORBER BUSHING $106.14
Location: 14 Prev | Next Part: 309953 *Qty: 2 SHOCK ABSORBER SPRING $158.40
Location: 15 Prev | Next Part: 246962 *Qty: 2 SCREW $35.61
Location: 16 Prev | Next Part: 14507987 *Qty: 6 CAP $6.50
Location: 17 Prev | Next Part: 237821 *Qty: 2 BUSHING $5.66
Location: 18 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 255271 *Qty: 2 NUT $1.60
Location: 20 Prev | Next Part: 319166 *Qty: 2 REAR BRAKE DISC $4,376.73
Location: 21 Prev | Next Part: 104370 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 228131 *Qty: 2 SCREW Unavailable
Location: 23 Prev | Next Part: 228132 *Qty: 4 WASHER Unavailable
Location: 24 Prev | Next Part: 220340 *Qty: 2 AXLE SHAFT $1,177.19
Location: 25 Prev | Next Part: 289880 *Qty: 1 STABILISER BAR $386.25
Location: 26 Prev | Next Part: 240824 *Qty: 2 PLUG $17.17
Location: 27 Prev | Next Part: 244778 *Qty: 2 PLATE $20.98
Location: 28 Prev | Next Part: 264117 *Qty: 4 SCREW $3.12
Location: 29 Prev | Next Part: 250453 *Qty: 1 RH SPHERICAL TIE-ROD $122.73
Location: 29 Prev | Next Part: 250452 *Qty: 1 LH SPHERICAL TIE-ROD $122.73
Location: 30 Prev | Next Part: 12601474 *Qty: 4 WASHER Unavailable
Location: 31 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 248790 *Qty: 4 SCREW $4.64
Location: 33 Prev | Next Part: 250657 *Qty: 6 SCREW $7.27
Location: 34 Prev | Next Part: 257424 *Qty: 1 RH DISC SHIELD $56.32
Location: 34 Prev | Next Part: 257423 *Qty: 1 LH DISC SHIELD $56.32
Location: 35 Prev | Next Part: 250811 *Qty: 2 SHIELD $25.93
Location: 36 Prev | Next Part: 11568027 *Qty: 6 SCREW $1.74
Location: 37 Prev | Next Part: 203780 *Qty: 2 NUT $25.46

* Quantity shown indicates the number of pieces used in the diagram.
