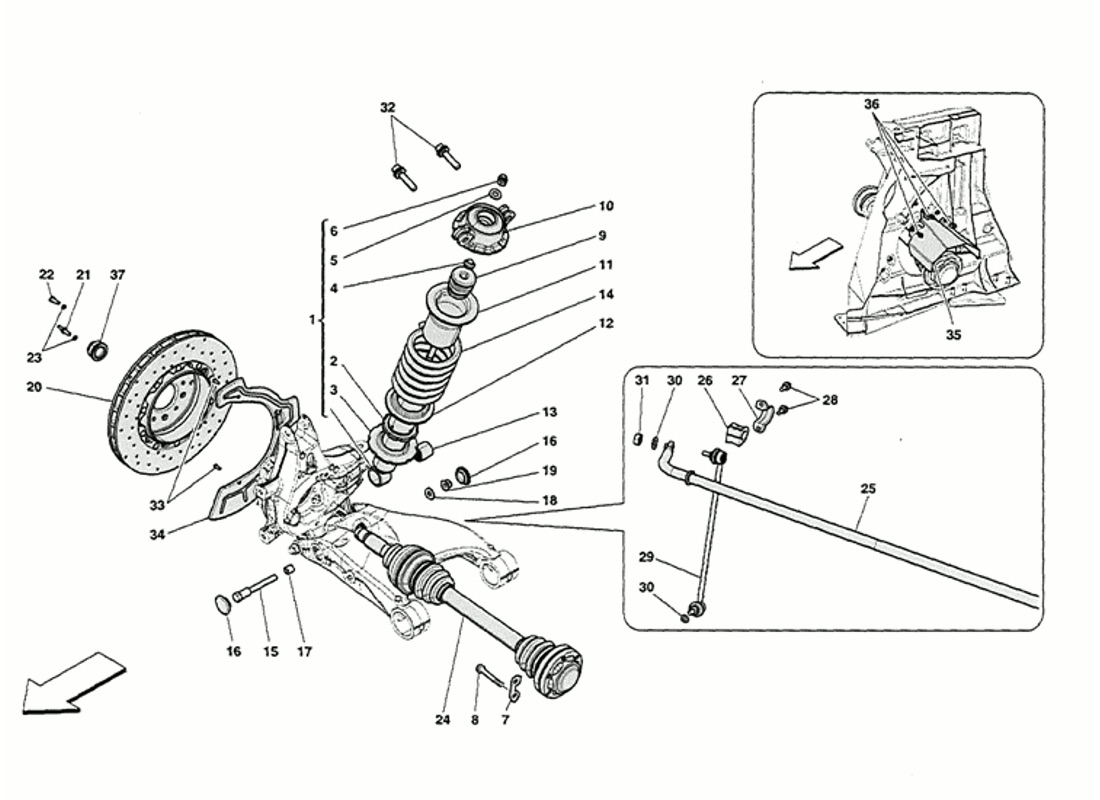

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 289729 2 REAR SHOCK ABSORBER $2,438.11
2 220351 2 RING NUT $62.10
3 286402 2 PIATTELLO $189.78
4 220383 2 BOCCOLA BATT.HYPERBLOCK X AMM.DELPHI $46.57
5 220377 2 WASHER D.12,1 -24 X 3 $10.33
6 220378 2 NUT M12X1 $6.37
7 220325 6 AXLE SHAFT PLATE $5.16
8 237590 12 SCREW M10X1.25X50 $6.37
9 281221 2 ENDSTOP BUSH $43.12
10 250394 2 STOP CAP $293.31
11 212517 2 UPPER SPACER $12.75
12 188996 2 LOWER RUBBER BOOT REAR SHOCK SPACER $16.54
13 157630 2 SHOCK ABSORBER BUSHING $127.67
14 302531 2 SPRING $1,052.53
15 246962 2 SCREW SPECIAL M12X1.25X80 $41.09
16 14507987 6 PLUG $6.50
17 237821 2 BUSHING D18X15 $6.37
18 12646921 2 WASHER D.12,60-28X3 $0.90
19 255271 2 NUT M12X1.25X13.8 $1.81
20 294970 2 DISCO FRENO Unavailable
21 104370 2 SCREW/COPPER Unavailable
22 228131 2 SCREW M8X20 Unavailable
23 228132 4 WASHER M8 Unavailable
24 220340 2 AXLE SHAFT (DCT) $1,225.08
25 289880 1 STABILIZER BAR $483.12
26 240824 2 TAMPONE $22.41
27 244778 2 PAD FASTENING PLATE $25.86
28 264117 4 SCREW M10X1.25X30 $3.19
29 250453 1 RH BALL JOINT TIE-ROD $144.92
29 250452 1 LH BALL JOINT TIE-ROD $144.92
30 12601474 4 WASHER Unavailable
31 12164714 2 NUT M10X1.25X8 $0.90
32 248790 4 SCREW M12X1.25X50 $5.32
33 250657 6 SCREW -M6 X 14- $8.30
34 257424 1 RH DISC SHIELD $67.27
34 257423 1 LH DISC SHIELD $67.27
35 250811 2 SHIELD $26.45
36 11568027 6 SCREW M6X18 $2.11
37 203780 2 NUT WITH WASHER CPL M2 $30.43

* Quantity shown indicates the number of pieces used in the diagram.
