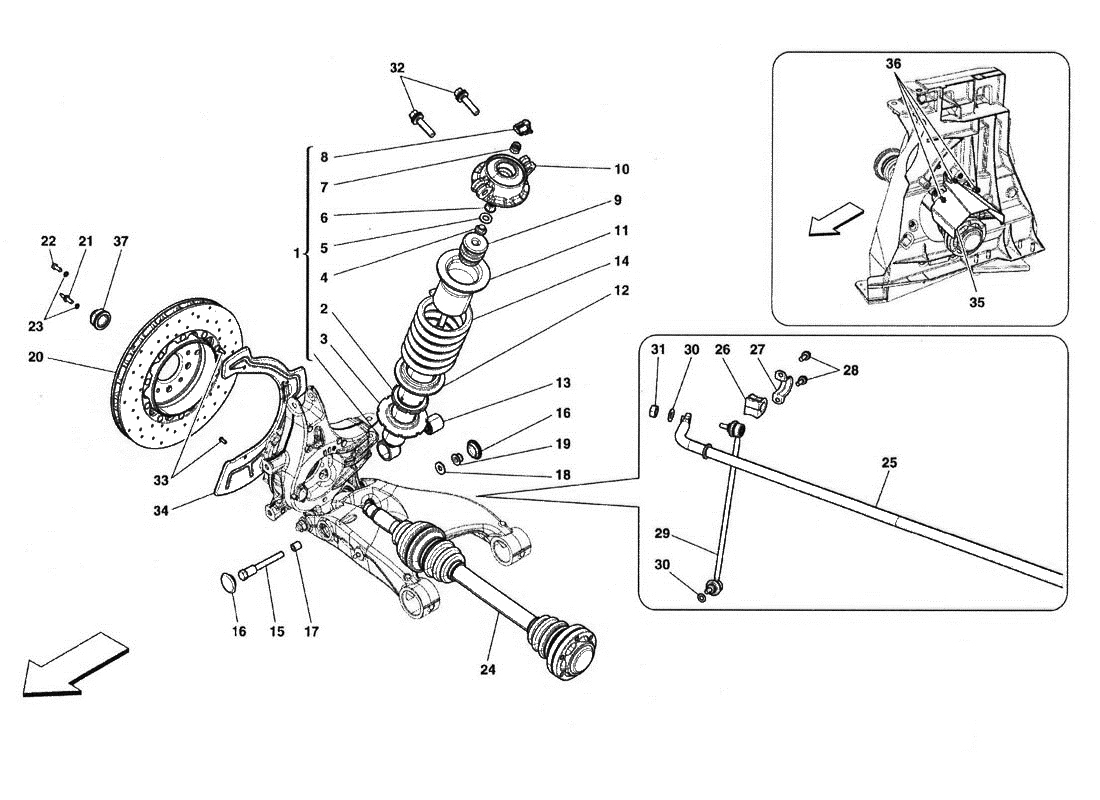

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 255864 *Qty: 2 REAR SHOCK ABSORBER $2,269.02
Location: 2 Prev | Next Part: 220351 *Qty: 2 RING NUT $49.80
Location: 3 Prev | Next Part: 251483 *Qty: 2 SPRING RETAINER $144.63
Location: 4 Prev | Next Part: 220383 *Qty: 2 BUSHING $18.45
Location: 5 Prev | Next Part: 220377 *Qty: 2 WASHER $9.99
Location: 6 Prev | Next Part: 220378 *Qty: 2 NUT $2.24
Location: 7 Prev | Next Part: 220382 *Qty: 2 NUT $22.26
Location: 8 Prev | Next Part: 234671 *Qty: 2 UPPER CONNECTOR $47.33
Location: 9 Prev | Next Part: 246490 *Qty: 2 ENDSTOP BUSH -Applicable until depletion- $62.08
Location: 9 Prev | Next Part: 267936 *Qty: 2 ENDSTOP BUSH -Applicable after depletion of 246490- $36.77
Location: 10 Prev | Next Part: 250394 *Qty: 2 STOP CAP $238.98
Location: 11 Prev | Next Part: 212517 *Qty: 2 UPPER SPACER $10.47
Location: 12 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER $13.58
Location: 13 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 14 Prev | Next Part: 263457 *Qty: 2 SHOCK ABSORBER SPRING $117.71
Location: 15 Prev | Next Part: 246962 *Qty: 2 SCREW $34.91
Location: 16 Prev | Next Part: 14507987 *Qty: 6 CAP $6.50
Location: 17 Prev | Next Part: 237821 *Qty: 2 BUSHING $5.56
Location: 18 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 255271 *Qty: 2 NUT $1.57
Location: 20 Prev | Next Part: 257102 *Qty: 2 BRAKE DISC Call
Location: 21 Prev | Next Part: 104370 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 228131 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 228132 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 220340 *Qty: 2 AXLE SHAFT $1,154.10
Location: 25 Prev | Next Part: 249199 *Qty: 1 STABILISER BAR $334.25
Location: 26 Prev | Next Part: 249187 *Qty: 2 PLUG $16.82
Location: 27 Prev | Next Part: 244778 *Qty: 2 PLATE $20.57
Location: 28 Prev | Next Part: 245843 *Qty: 4 SCREW -No longer supplied- -Replaced by 264117- $2.63
Location: 28 Prev | Next Part: 264117 *Qty: 4 SCREW $3.06
Location: 29 Prev | Next Part: 250453 *Qty: 1 RH BALL JOINT TIE-ROD $120.34
Location: 29 Prev | Next Part: 250452 *Qty: 1 LH BALL JOINT TIE-ROD $120.34
Location: 30 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 31 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 248790 *Qty: 4 SCREW $4.55
Location: 33 Prev | Next Part: 190870 *Qty: 6 SCREW $2.45
Location: 34 Prev | Next Part: 240969 *Qty: 1 RH DISC SHIELD -Applicable until depletion- $105.99
Location: 34 Prev | Next Part: 257424 *Qty: 1 RH DISC SHIELD -Applicable after depletion of 240969- $55.22
Location: 34 Prev | Next Part: 240968 *Qty: 1 LH DISC SHIELD -Applicable until depletion- Call
Location: 34 Prev | Next Part: 257423 *Qty: 1 LH DISC SHIELD -Applicable after depletion of 240968- $55.22
Location: 35 Prev | Next Part: 250811 *Qty: 2 SHIELD $25.43
Location: 36 Prev | Next Part: 11568027 *Qty: 6 SCREW $1.71
Location: 37 Prev | Next Part: 203780 *Qty: 2 NUT $24.95

* Quantity shown indicates the number of pieces used in the diagram.
