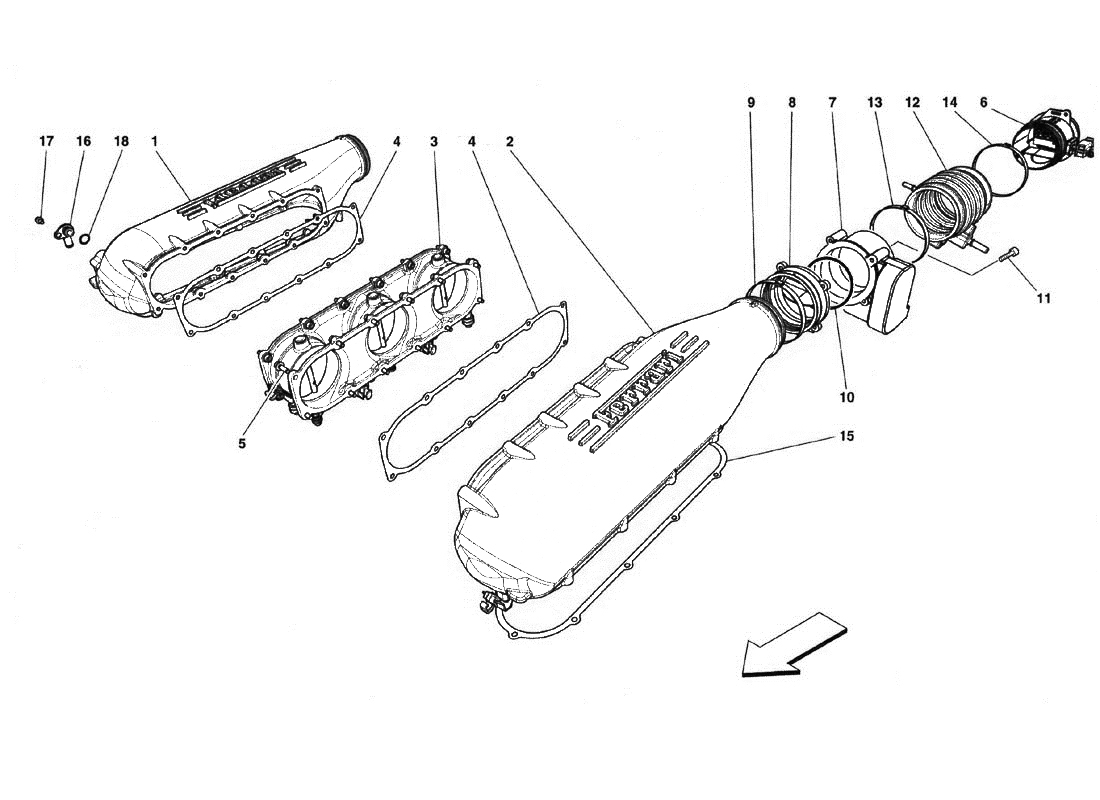

AIR INTAKE MANIFOLD COVER

Go to Split View

AIR INTAKE MANIFOLD COVER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 254511 *Qty: 1 RH INTAKE PLENUM $2,669.43
Location: 2 Prev | Next Part: 254512 *Qty: 1 LH INTAKE PLENUM $2,669.43
Location: 3 Prev | Next Part: 263985 *Qty: 1 COMPL. CENTRAL COMPENSATOR BODY -No longer supplied- -Replaced by 263985- Unavailable
Location: 3 Prev | Next Part: 263985 *Qty: 1 COMPL. CENTRAL COMPENSATOR BODY Unavailable
Location: 4 Prev | Next Part: 252892 *Qty: 2 PLENUM GASKET Superseded
Location: 5 Prev | Next Part: 231618 *Qty: 24 SCREW $0.90
Location: 6 Prev | Next Part: 245028 *Qty: 2 AIR FLOW METER $344.98
Location: 7 Prev | Next Part: 179912 *Qty: 2 THROTTLE BODY $962.04
Location: 8 Prev | Next Part: 240262 *Qty: 2 SHIM $97.66
Location: 9 Prev | Next Part: 190151 *Qty: 2 RING CLAMP $3.05
Location: 10 Prev | Next Part: 150302 *Qty: 2 GASKET $2.59
Location: 11 Prev | Next Part: 231624 *Qty: 8 SCREW $0.90
Location: 12 Prev | Next Part: 246598 *Qty: 1 LH CONNECTOR PIPE -Not for USA and CDN- $138.56
Location: 12 Prev | Next Part: 247257 *Qty: 1 LH CONNECTOR PIPE -Applicable for USA and CDN- Unavailable
Location: 12 Prev | Next Part: 246596 *Qty: 1 RH CONNECTOR PIPE -Not for USA and CDN- $138.56
Location: 12 Prev | Next Part: 247256 *Qty: 1 RH CONNECTOR PIPE -Applicable for USA and CDN- $343.72
Location: 13 Prev | Next Part: 180046 *Qty: 2 RING CLAMP $2.01
Location: 14 Prev | Next Part: 177981 *Qty: 2 RING CLAMP $1.86
Location: 15 Prev | Next Part: 252890 *Qty: 2 PLENUM-MANIFOLD GASKET Superseded
Location: 16 Prev | Next Part: 243207 *Qty: 1 CONNECTOR $18.69
Location: 17 Prev | Next Part: 231616 *Qty: 1 SCREW $0.90
Location: 18 Prev | Next Part: 123475 *Qty: 1 GASKET $4.05
Location: 19 Prev | Next Part: 169814 *Qty: 2 SCREW -Applicable for carbon filter box- $1.54
Location: 19 Prev | Next Part: 262934 *Qty: 2 SCREW -Applicable for carbon filter box- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
