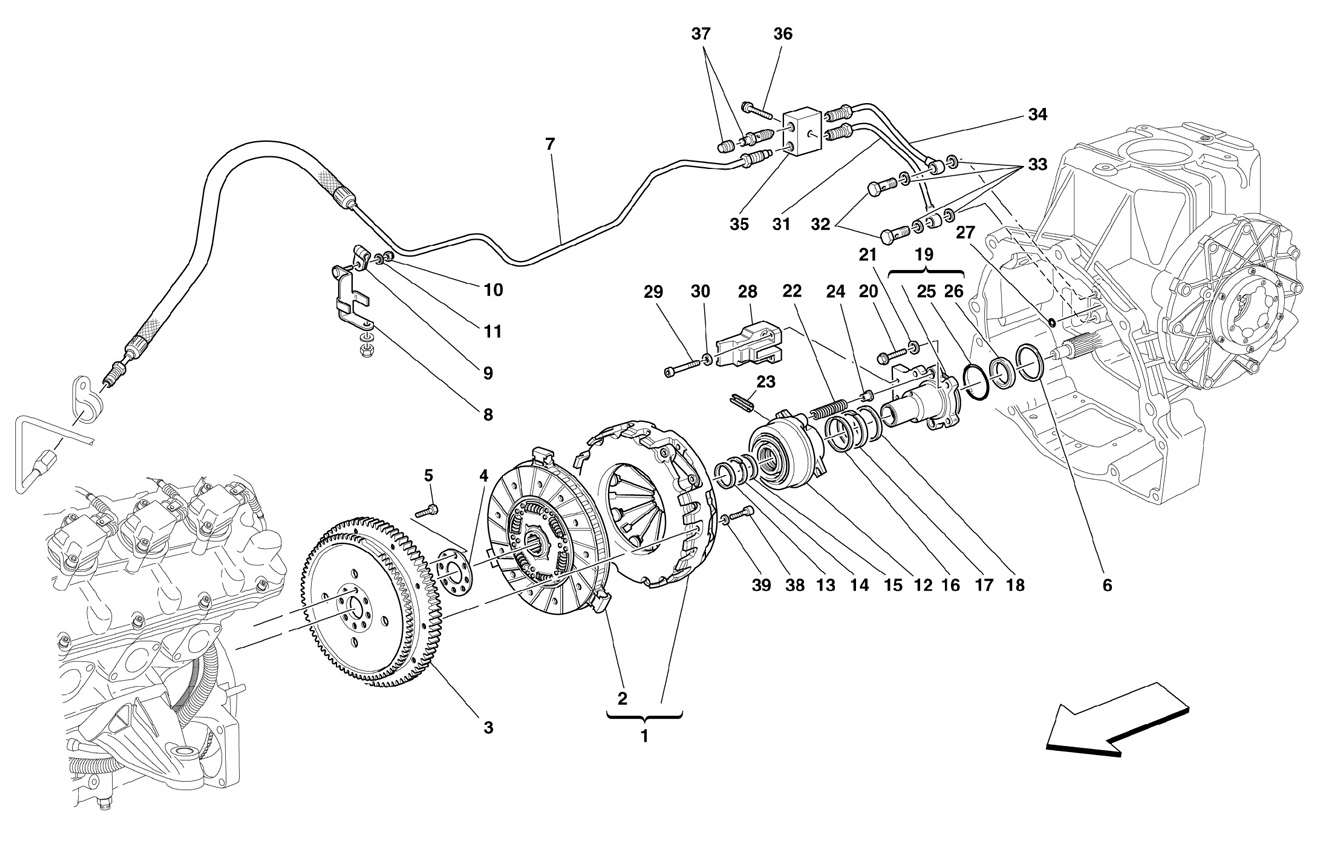

CLUTCH AND CONTROLS -Not for F1 -

Location Part # Quantity* Description Price Add To Cart
1 222090 1 COMPLETE CLUTCH -Not as spare part- -Replaced by 222090- $4,282.47
1 222090 1 COMPLETE CLUTCH $4,282.47
2 222090 1 CLUTCH DISC -Not as spare part now- $4,282.47
3 230425 1 COMPLETE ENGINE FLYWHEEL -Not as spare part- -Replaced by 230425- $2,814.27
3 230425 1 COMPLETE ENGINE FLYWHEEL $2,814.27
4 103876 1 FLYWHEEL FIXING WASHER $13.38
5 201755 8 SCREW $1.46
5 103875 8 SCREW -Not as spare part now- -Replaced by 201755- Superseded
6 173360 2 SPACER -Possible fitting- $27.38
7 207386 1 CLUTCH CONTROL HOSE -Valid till car Ass. Nr. 58632- Unavailable
7 219377 1 CLUTCH CONTROL HOSE -Valid from car Ass. Nr. 58633- Unavailable
8 178342 1 PIPES FIXING BRACKET Unavailable
9 10440990 1 BRACKET WITH SHEATH $1.97
10 102741 1 NUT $0.90
11 10730114 1 SHER Unavailable
12 CRB360/430MS 1 THRUST BEARING -Valid till Ass. Nr. 75199- -Valid till stock exhaustion- $693.00
12 CRB360/430MS 1 THRUST BEARING -Valid from Ass. Nr. 75200- -Valid after stock exhaustion of 208310- $693.00
13 172970 1 SCRAPER RING $25.86
14 208014 1 RING $6.54
15 172972 1 SEAL RING $25.86
16 154508 1 SEAL RING $46.57
17 154507 1 RING $4.45
18 154551 1 SCRAPER RING $31.04
19 CRF360/430 1 COMPLETE BEARING SUPPORT FLANGE Superseded
20 16052024 2 SCREW $3.19
21 12601374 2 SHER $0.90
22 155207 2 PRELOAD SPRING $5.00
23 14604170 1 FLEXIBLE PIN $0.90
24 155206 2 SPACER FOR SPRING $4.24
25 136140 1 O.R. GASKET $1.81
26 172363 1 SEAL RING $12.93
27 121813 2 O.R. GASKET $0.90
28 201160 1 SUPPORT $120.00
29 14358524 2 SCREW Unavailable
30 10519378 2 SHER Unavailable
31 180183 1 CLUTCH CONTROL TUBE -Not as spare part- -Replaced by 242066- Unavailable
31 242066 1 CLUTCH CONTROL TUBE $148.37
32 11903811 2 UNION Unavailable
33 10284460 4 GASKET $0.90
34 242074 1 BLEEDER SYSTEM PIPE -Not as spare part- -Replaced by 242074- $151.82
34 242074 1 BLEEDER SYSTEM PIPE $151.82
35 196918 1 BLOCK -Valid till Ass. Nr. 72729 $89.00
35 235706 1 BLOCK -Valid from Ass. Nr. 72730- -Replaces 196918- $86.00
36 16286324 1 SCREW Unavailable
37 121699 1 BLEEDER SCREW -Valid till Ass. Nr. 72729- -Not as spare part- -Replaced by 152954- $59.36
37 152954 1 BLEEDER SCREW -Valid from Ass. Nr. 72730- -Replaces 121699- $7.90
38 204385 9 SCREW $25.86
39 11194379 9 SHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
