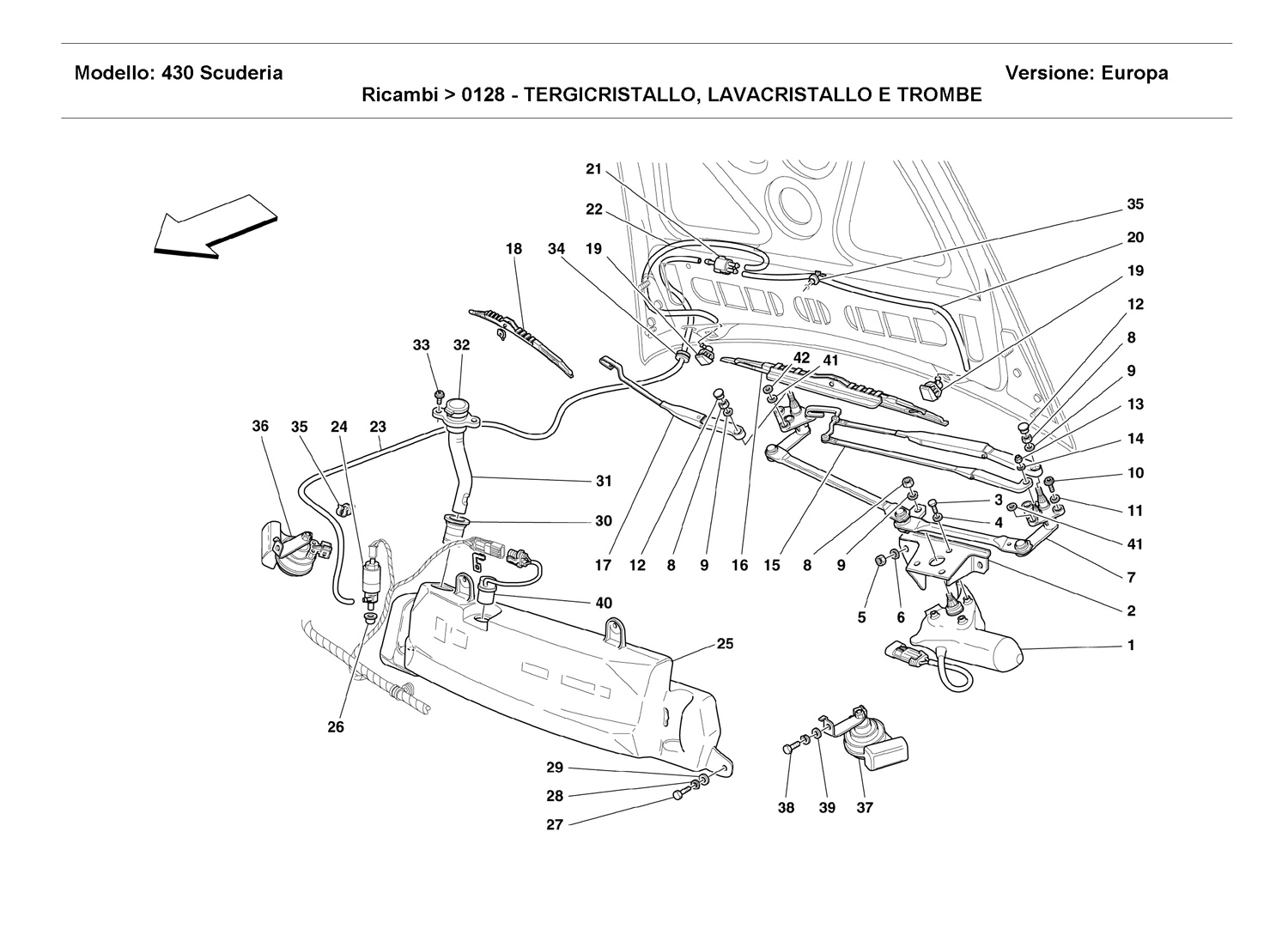

WINDSHIELD, GLASS WASHER AND HORNS

Location Part # Quantity* Description Price Add To Cart
1 63780200 1 NDSHIELD WIPER MOTOR Unavailable
2 173416 1 NDSHIELD WIPER MOTOR FASTENING BRACKET $15.94
3 10902224 3 SCREW $0.90
4 127494 3 WASHER $0.90
5 104030 3 NUT $0.90
6 14496524 3 WASHER $0.90
7 65409100 1 COMPLETE WINDSHIELD WIPER LEVERAGE $708.43
8 16100814 3 NUT Unavailable
9 12601374 3 WASHER $0.90
10 64830600 6 SCREW Unavailable
11 12644477 6 WASHER Unavailable
12 65190900 2 SMALL COVER $5.46
13 15896472 1 NUT Superseded
14 12601176 1 WASHER Unavailable
15 65409200 1 DRIVER SIDE WINDSHIELD WIPER ARM Unavailable
16 63776100 1 DRIVER SIDE WIPER BRUSH $45.53
17 65409300 1 PASSENGER SIDE WINDSHIELD WIPER ARM $431.35
18 65409400 1 PASSENGER SIDE WIPER BRUSH $87.68
19 65191000 2 JET FOR WINDOW WASHING $3.80
20 65362600 1 RUBBER HOSE $74.58
21 61648100 1 NONRETURN VALVE $62.10
22 65362500 1 RUBBER HOSE $25.86
23 65362400 1 RUBBER HOSE FROM PUMP TO VALVE $27.38
24 65358700 1 WIPER PUMP $72.45
25 67895900 1 NDSHIELD WIPER AND HEADLIGHT WASHER CONTAINER $345.08
26 65775100 1 GASKET $7.59
27 10902414 4 SCREW Unavailable
28 12601274 4 WASHER $0.90
29 10523424 4 WASHER $0.90
30 65581700 1 GASKET $13.78
31 65581800 1 PIPE Unavailable
32 65374000 1 PLUG Unavailable
33 62940900 2 SCREW $1.81
34 10396280 2 GASKET $4.55
35 65759400 2 FIXING CLIP $0.95
36 199231 1 COMPLETE R.H. HORN $21.09
37 199232 1 COMPLETE L.H. HORN $21.09
38 10902324 2 SCREW Superseded
39 12601274 2 WASHER $0.90
40 65758700 1 LIQUID SENSOR $99.04
41 65546300 2 BEVEL WASHER $1.66
42 12646601 1 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
