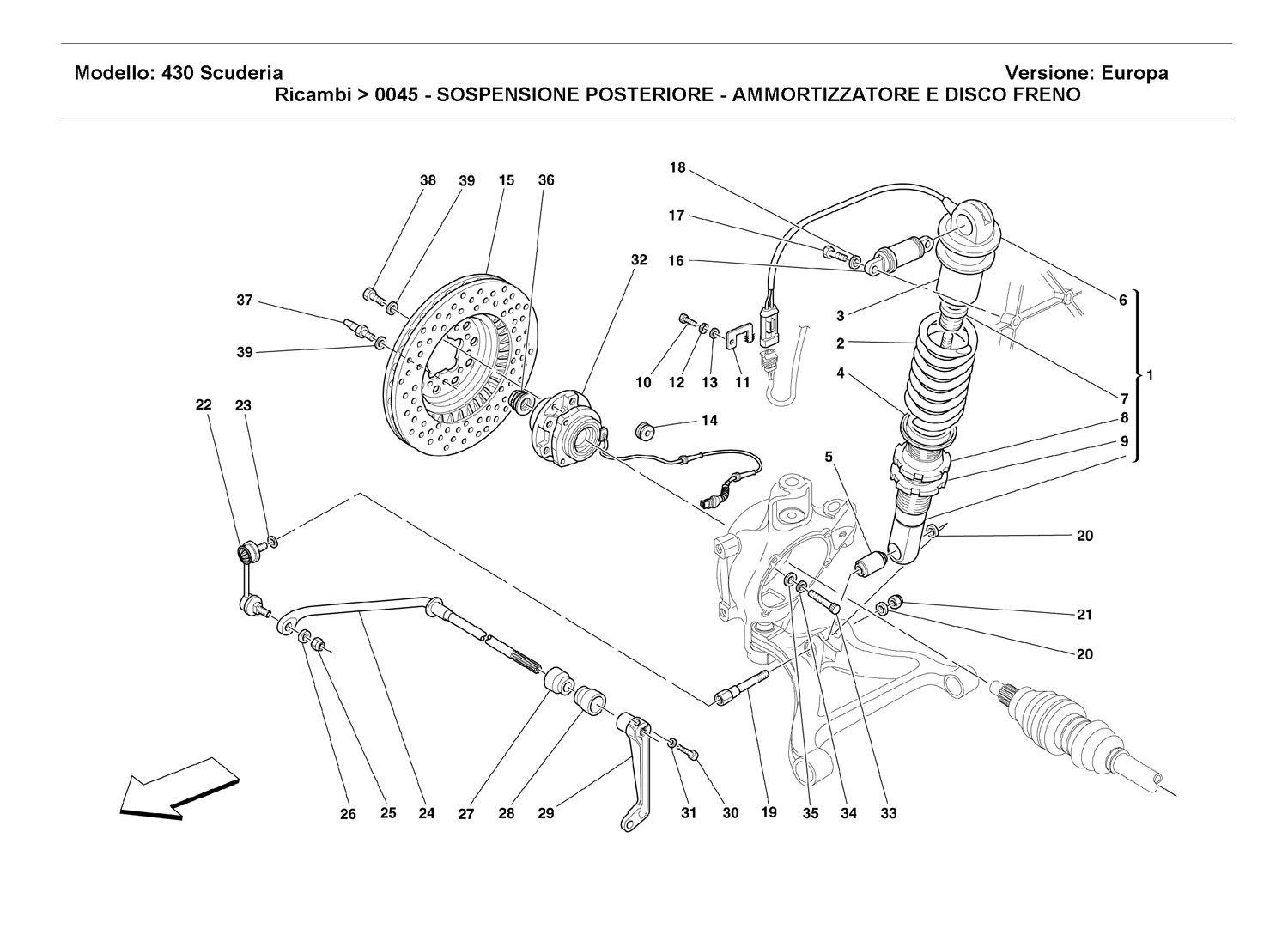

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 238962 2 REAR SHOCK ABSORBER Unavailable
2 230574 2 SPRING Unavailable
3 177688 2 UPPER SPACER $8.64
4 169684 2 LOWER SPACER $14.15
5 157630 2 SHOCK ABSORBER BUSHING $127.67
6 174727 2 SPRING RETAINING UPPER SPACER $285.24
7 174728 2 SHOCK ABSORBER PAD $138.02
8 174725 2 SPACER $134.57
9 174726 2 RING NUT Unavailable
10 10902024 2 SCREW $0.90
11 162606 2 CLIP $1.97
12 127494 2 WASHER $0.90
13 12643724 2 WASHER Superseded
14 10460287 2 RUBBER RING $1.97
15 222340 2 REAR BRAKE DISC
-Replace together- 		$4,572.45
16 212948 2 SILENTBLOCK $189.78
17 11306934 4 SCREW Unavailable
18 160092 4 WASHER Unavailable
19 204974 2 SCREW $411.05
20 129225 4 WASHER $2.27
21 102825 2 NUT Superseded
22 161109 1 R.H. BALL TIE ROD $132.84
22 161110 1 L.H. BALL TIE ROD $132.84
23 160092 2 WASHER Unavailable
24 198416 1 REAR ANTI-ROLL BAR Unavailable
25 12164714 2 NUT $0.90
26 12601474 2 WASHER Unavailable
27 170716 1 BAR BUFFER $72.45
28 170717 1 BAR BUFFER $62.10
29 175861 1 L.H. ARM $310.57
30 170950 1 SCREW $4.24
31 12601474 1 WASHER Unavailable
32 194134 2 HUB COMPLETE BEARING $860.70
33 180591 8 SCREW $17.70
34 160092 8 WASHER Unavailable
35 10732414 8 WASHER $10.50
36 209184 2 NUT $47.56
37 104370 2 BRAKE DISC FIXING SCREW Unavailable
38 16043424 2 SCREW $0.90
39 127496 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
