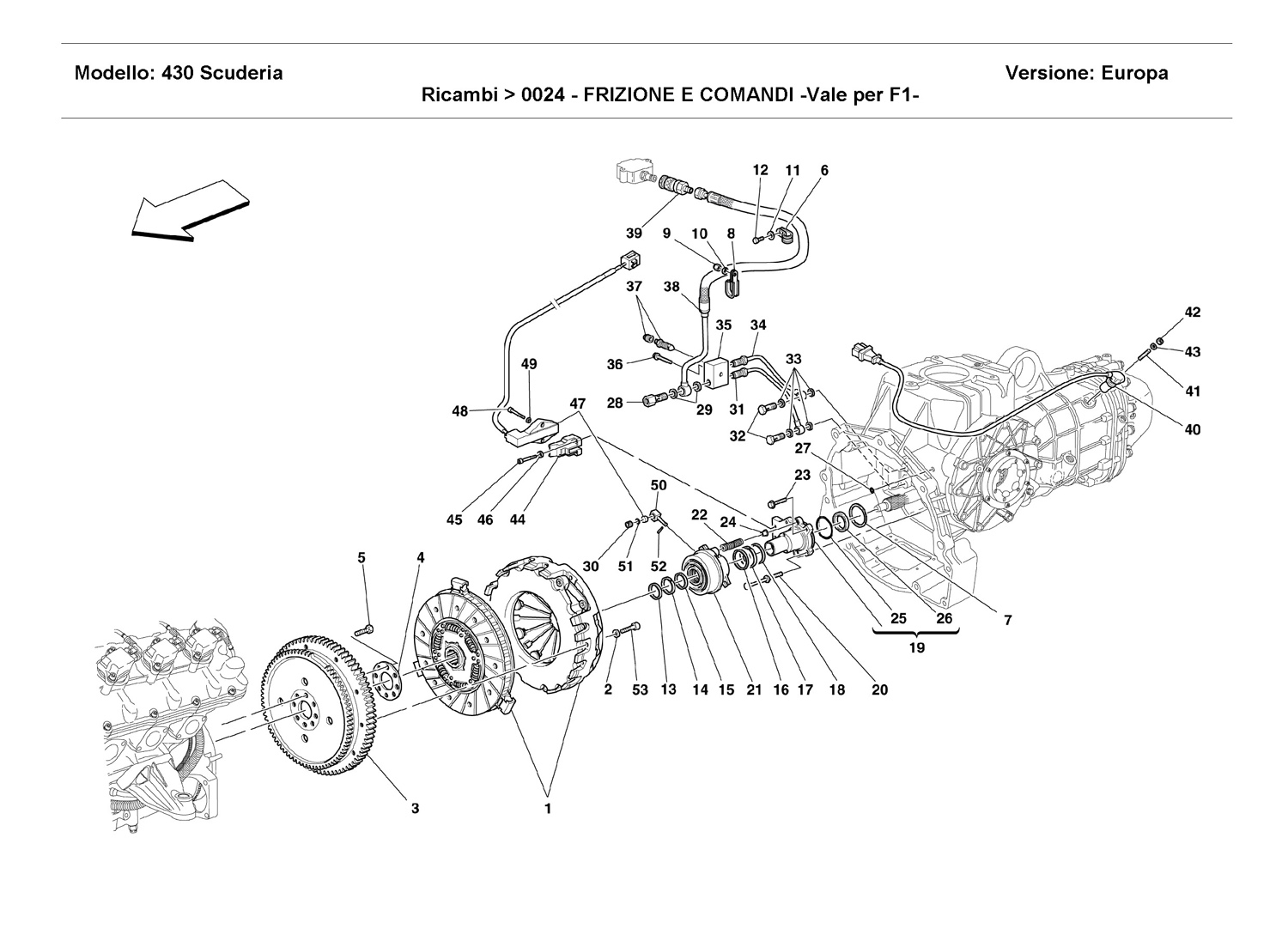

CLUTCH AND CONTROLS -Valid for F1 -

Location Part # Quantity* Description Price Add To Cart
1 222090 1 COMPLETE CLUTCH $4,282.47
2 11194379 9 WASHER $0.90
3 230425 1 COMPLETE ENGINE FLYWHEEL $2,814.27
4 103876 1 FLYWHEEL FIXING WASHER $13.38
5 201755 8 SCREW $1.46
6 121834 1 BRACKET $4.85
7 173360 2 SPACER
-Possible fitting- 		$27.38
8 139512 1 BRACKET WITH SHEATH $2.78
9 102741 1 NUT $0.90
10 14496424 1 WASHER Superseded
11 14496424 1 WASHER Superseded
12 10979424 1 SCREW Unavailable
13 181837 1 SCRAPER RING $25.86
14 208014 1 RING $6.54
15 181838 1 SEAL RING $25.86
16 181828 1 SEAL RING $31.04
17 154507 1 RING $4.45
18 181836 1 SCRAPER RING $29.31
19 234952 1 SUPPORT FLANGE $790.69
20 201171 2 STUD FOR END OF STROKE $29.31
21 CRB360/430F1S 1 COMPLETE THRUST BEARING $693.00
22 155207 2 PRELOAD SPRING $5.00
23 16052024 2 SCREW $3.19
24 155206 2 SPACER $4.24
25 136140 1 O.R. GASKET $1.81
26 172363 1 SEAL RING $12.93
27 166432 2 O.R. GASKET $0.90
28 199410 1 UNION $100.46
29 10261060 2 GASKET $0.90
30 167802 1 PLUG $57.83
31 180183 1 CLUTCH CONTROL TUBE Unavailable
32 11903811 2 UNION Unavailable
33 10284460 4 GASKET $0.90
34 180184 1 BLEEDER SYSTEM PIPE Unavailable
35 235706 1 BLOCK $86.00
36 16286324 1 SCREW Unavailable
37 152954 1 BLEEDER SCREW $7.90
38 239429 1 CLUTCH CONTROL TUBE $1,587.44
39 225148 1 FEMALE COUPLING $155.27
40 168729 1 ELECTRO-MAGNETIC SENSOR $308.54
41 11500124 1 STUD Unavailable
42 10720124 1 NUT Unavailable
43 12604274 1 WASHER $0.90
44 201160 1 SUPPORT $120.00
45 14358524 2 SCREW Unavailable
46 10519378 2 WASHER Unavailable
47 219340 1 COMPLETE SENSOR KIT $535.90
48 14303324 2 SCREW Unavailable
49 10519224 2 WASHER $0.90
50 165567 1 PIN $59.36
51 165658 1 O.R. GASKET $10.80
52 14158570 1 PIN $0.90
53 204385 9 SCREW $25.86

* Quantity shown indicates the number of pieces used in the diagram.
