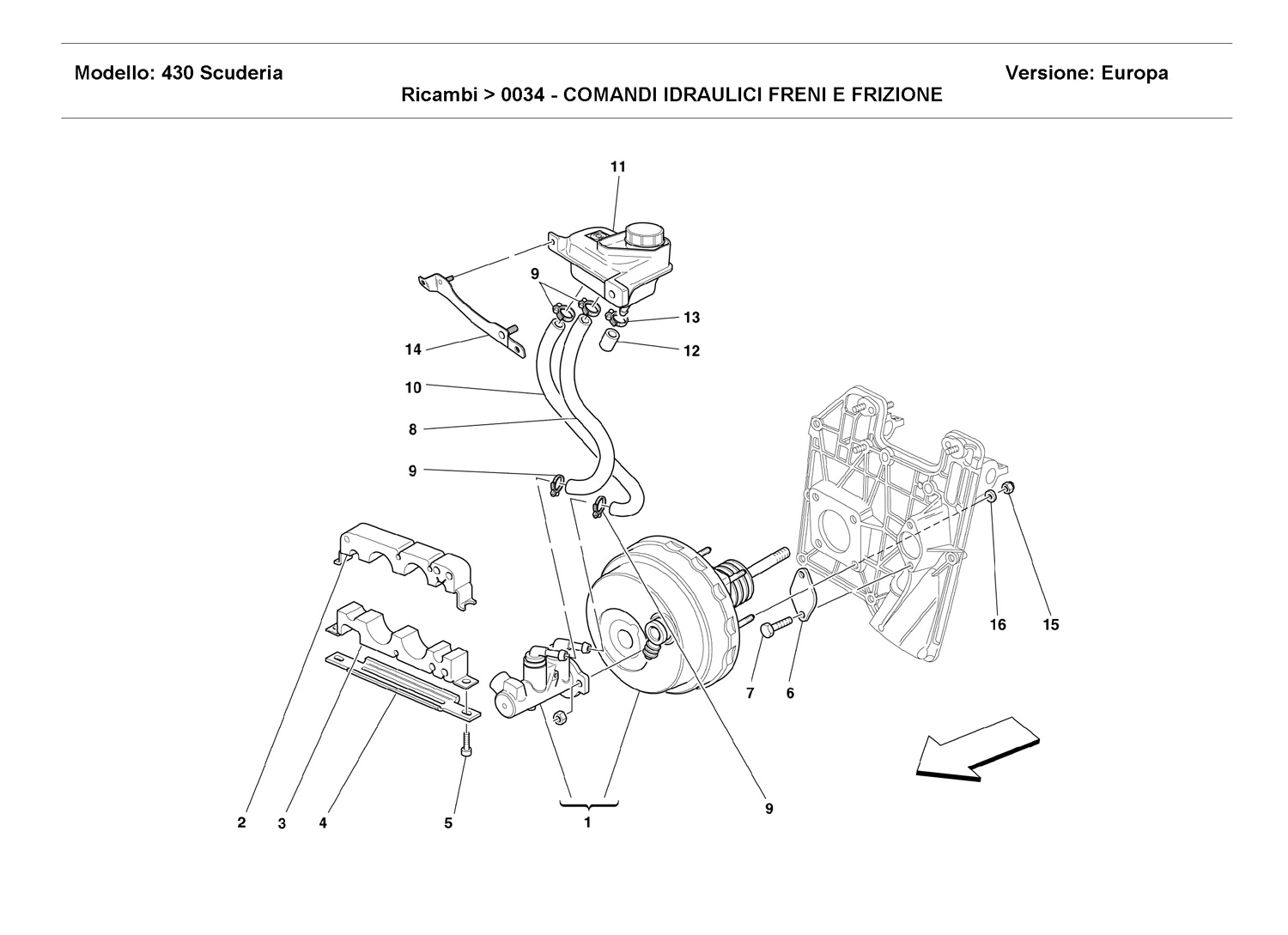

BRAKES AND CLUTCH HYDRAULIC CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 198634 *Qty: 1 COMPLETE BRAKE BOOSTER $952.56
Location: 2 Prev | Next Part: 201028 *Qty: 3 UPPER SUPPORT $28.04
Location: 3 Prev | Next Part: 201029 *Qty: 3 LOWER SUPPORT $24.31
Location: 4 Prev | Next Part: 211683 *Qty: 3 SMALL PLATE Unavailable
Location: 5 Prev | Next Part: 64830600 *Qty: 6 SCREW $1.89
Location: 6 Prev | Next Part: 174177 *Qty: 1 FLANGE $72.61
Location: 7 Prev | Next Part: 16043021 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 154011 *Qty: 1 PIPE FROM FRONT UNION TO TANK $9.11
Location: 9 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 10 Prev | Next Part: 194598 *Qty: 1 PIPE FROM REAR UNION TO TANK $6.28
Location: 11 Prev | Next Part: 203903 *Qty: 1 COMPLETE BRAKE OIL TANK $42.26
Location: 12 Prev | Next Part: 136379 *Qty: 1 PLUG $5.00
Location: 13 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR $0.90
Location: 14 Prev | Next Part: 195352 *Qty: 1 BRACKET $15.18
Location: 15 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
