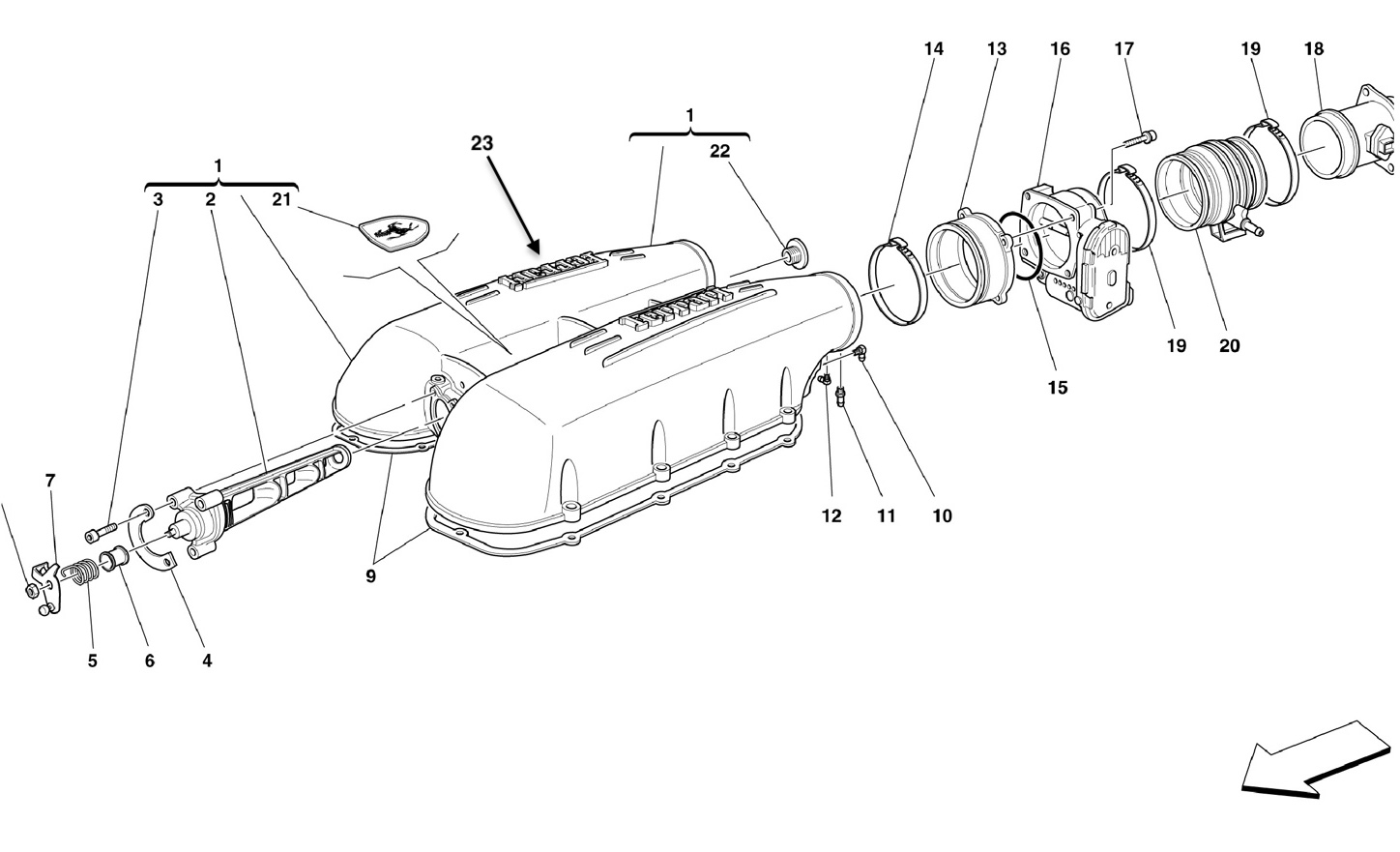

AIR INTAKE MANIFOLD COVER

Go to Split View

AIR INTAKE MANIFOLD COVER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 238253 *Qty: 1 AIR INTAKE MANIFOLD COVER Unavailable
Location: 2 Prev | Next Part: 215068 *Qty: 1 ROLLING DRUM $337.64
Location: 3 Prev | Next Part: 222997 *Qty: 3 SCREW $16.18
Location: 4 Prev | Next Part: 204873 *Qty: 1 SAFETY PLATE $27.44
Location: 5 Prev | Next Part: 197761 *Qty: 1 SPRING $76.27
Location: 6 Prev | Next Part: 205123 *Qty: 1 BUSHING $64.84
Location: 7 Prev | Next Part: 203401 *Qty: 1 DRUM CONTROL LEVER $254.20
Location: 8 Prev | Next Part: 177613 *Qty: 1 NUT $9.15
Location: 9 Prev | Next Part: 217471 *Qty: 2 GASKET $38.82
Location: 10 Prev | Next Part: 174818 *Qty: 2 UNION $14.98
Location: 11 Prev | Next Part: 210194 *Qty: 2 UNION Superseded
Location: 12 Prev | Next Part: 128016 *Qty: 2 UNION $12.01
Location: 13 Prev | Next Part: 195206 *Qty: 2 SPACER Unavailable
Location: 14 Prev | Next Part: 190151 *Qty: 2 CLAMP $4.23
Location: 15 Prev | Next Part: 150302 *Qty: 2 O.R. GASKET $2.63
Location: 16 Prev | Next Part: 179912 *Qty: 2 THROTTLE HOLDER $981.27
Location: 17 Prev | Next Part: 231624 *Qty: 8 SCREW Unavailable
Location: 18 Prev | Next Part: 231406 *Qty: 2 AIR FLOW METER $517.51
Location: 19 Prev | Next Part: 180046 *Qty: 4 CLAMP $2.88
Location: 20 Prev | Next Part: 226757 *Qty: 1 R.H. SLEEVE $94.20
Location: 20 Prev | Next Part: 226758 *Qty: 1 L.H. SLEEVE $94.20
Location: 21 Prev | Next Part: 219422 *Qty: 1 AESTHETIC SMALL COVER Unavailable
Location: 22 Prev | Next Part: 210157 *Qty: 1 PLUG $195.29
Location: 23 Prev | Next Part: 220354 *Qty: 1 RH FERRARI EMBLEM (NO PINS) $160.23
Location: 23 Prev | Next Part: 220355 *Qty: 1 LH FERRARI EMBLEM (NO PINS) $160.23
Location: 23 Prev | Next Part: 241533 *Qty: 1 RH FERRARI EMBLEM (WITH PINS) $160.23
Location: 23 Prev | Next Part: 241534 *Qty: 1 LH FERRARI EMBLEM (WITH PINS) $160.23

* Quantity shown indicates the number of pieces used in the diagram.
