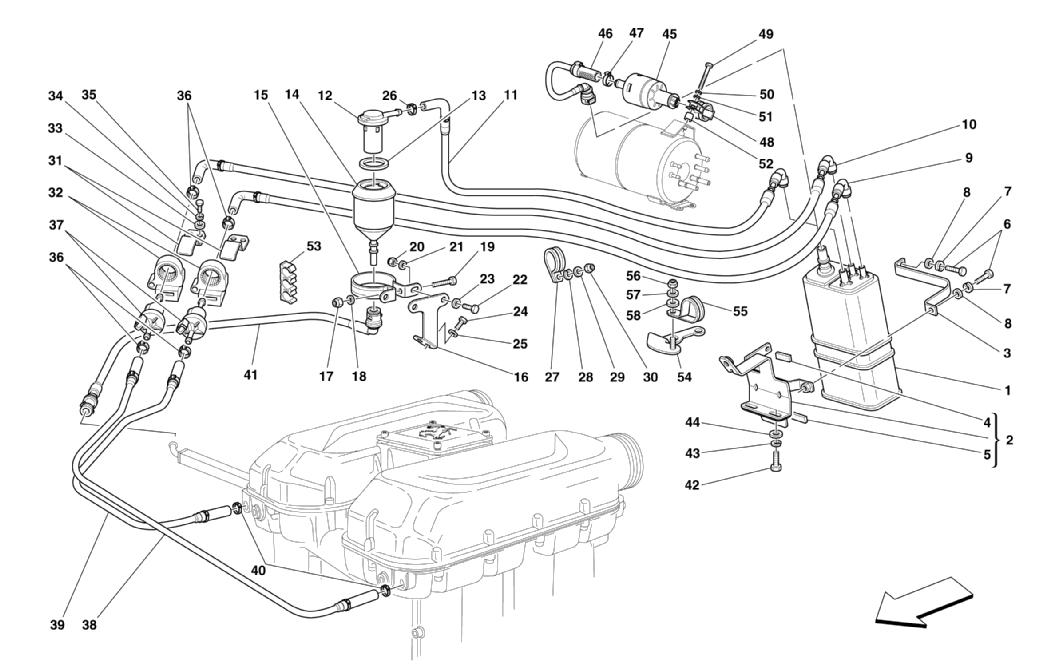

ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN

Location Part # Quantity* Description Price Add To Cart
1 180132 1 FUEL VAPOR FILTER $617.10
2 178451 1 DEWATERER FILTER FIXING BRACKET $25.86
3 178456 1 BRACKET $4.10
4 178458 1 RUBBER THICKNESS $86.80
5 178457 1 RUBBER THICKNESS Unavailable
6 10902124 2 SCREW $0.90
7 127494 2 WASHER $0.90
8 12639724 2 WASHER $0.90
9 180376 1 PIPE FROM FILTER TO REAR VALVE $172.53
10 180375 1 PIPE FROM FILTER TO FRONT VALVE $207.04
11 180374 1 PIPE FROM FILTER TO MULTIFUNTIONAL VALVE $143.20
12 180030 1 ANTI ROLL-OVER VALVE $189.78
13 195049 1 GASKET $5.93
14 175967 1 MULTIFUNTIONAL VALVE CONTAINER $22.41
15 176393 1 BRACKET WITH SHEATH $59.46
16 176442 1 BRACKET $4.12
17 102741 1 NUT $0.90
18 12639724 1 WASHER $0.90
19 10902834 1 SCREW $2.33
20 10720124 2 NUT Unavailable
21 12644424 2 WASHER Unavailable
22 10902024 2 SCREW $0.90
23 127494 2 WASHER $0.90
24 10902224 2 SCREW $0.90
25 12644424 2 WASHER Unavailable
26 13432070 1 SCREW COLLAR Unavailable
27 10442290 1 BRACKET WITH SHEATH Unavailable
28 127494 2 WASHER $0.90
29 12644424 2 WASHER Unavailable
30 15896214 2 NUT Unavailable
31 174708 2 BRACKET $5.34
32 174623 2 BUFFER FOR SUPPORT $13.62
33 12644424 2 WASHER Unavailable
34 127494 2 WASHER $0.90
35 10979434 2 SCREW Unavailable
36 13432070 4 SCREW COLLAR Unavailable
37 162412 2 ANTI-EVAPORATION VALVE $148.37
38 180377 1 PIPE TO ENGINE L.H. SIDE $77.63
39 180378 1 PIPE TO ENGINE R.H. SIDE $65.55
40 13432070 2 SCREW COLLAR Unavailable
41 180373 1 PIPE FROM MULTIFUNTIONAL VALVE TO DISAREATOR $96.61
42 10902224 2 SCREW $0.90
43 12639724 2 WASHER $0.90
44 127494 2 WASHER $0.90
45 179138 1 INTERCEPTION VALVE $345.08
46 180155 1 COMPLETE TUBE $119.04
47 164015 1 COLLAR FOR SLEEVE Superseded
48 181607 1 BRACKET WITH SHEATH $10.50
49 10903024 1 SCREW Unavailable
50 127494 1 WASHER $0.90
51 12639724 1 WASHER $0.90
52 172613 1 SPACER $5.30
53 145543 1 FLEXIBLE CLIP $0.90
54 180179 1 BRACKET $7.08
55 10441990 1 BRACKET WITH SHEATH Unavailable
56 15896214 1 NUT Unavailable
57 127494 1 WASHER $0.90
58 12644424 1 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
