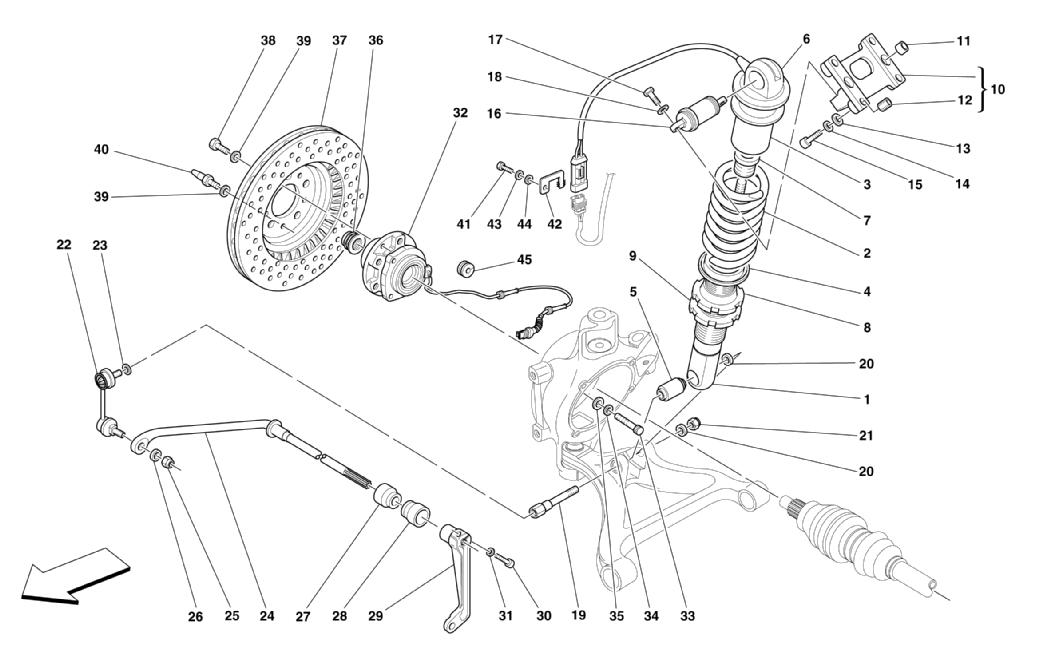

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 174724 2 REAR SHOCK ABSORBER Unavailable
2 182408 2 SPRING -Replace together -Not as spare part -Replaced by 190677 Unavailable
2 190677 2 SPRING $569.39
2 173851 2 SPRING -Replace together -Not as spare part -Replaced by 182408 $158.22
3 177688 2 UPPER SPACER $8.64
4 169684 2 LOWER SPACER $14.15
5 157630 2 SHOCK ABSORBER BUSHING $127.67
6 174727 2 SPRING RETAINING UPPER SPACER $285.24
7 174728 2 SHOCK ABSORBER PAD $138.02
8 174725 2 SPACER $134.57
9 174726 2 RING NUT Unavailable
10 176625 2 SHOCK ABSORBER CONNECTION SUPPORT -Valid till car Nr. 120572 $276.06
11 100013 4 CENTERING DOWEL -Valid till car Nr. 120572 $3.19
12 13526170 4 THREADED INSERT -Valid till car Nr. 120572 $6.52
13 14496524 8 WASHER -Valid till car Nr. 120572 $0.90
14 127496 8 WASHER -Valid till car Nr. 120572 $0.90
15 14306774 8 SCREW -Valid till car Nr. 120572 Unavailable
16 212948 2 SILENTBLOCK -Valid from Ass. Nr. 56992 and after stock exhaustion use 181804 -Replace together $189.78
17 11306934 4 SCREW Unavailable
18 160092 4 WASHER Unavailable
19 204974 2 SCREW $411.05
19 177664 2 SCREW -Valid till stock exhaustion Unavailable
20 129225 4 WASHER $2.27
21 148020 2 NUT $5.93
22 161110 1 L.H. BALL TIE ROD $132.84
22 161109 1 R.H. BALL TIE ROD $132.84
23 160092 2 WASHER Unavailable
24 182432 1 REAR ANTI-ROLL BAR $2,113.72
25 12164714 2 NUT $0.90
26 12601474 2 WASHER Unavailable
27 170716 1 BAR BUFFER $72.45
28 170717 1 BAR BUFFER $62.10
29 175861 1 L.H. ARM $310.57
30 170950 1 SCREW $4.24
31 12601474 1 WASHER Unavailable
32 179070 2 HUB COMPLETE BEARING $1,120.54
33 180591 8 SCREW $17.70
34 160092 8 WASHER Unavailable
35 10732414 8 WASHER $10.50
36 167259 2 NUT -Not as spare part -Replaced by 209184 Superseded
36 209184 2 NUT $47.56
37 182606 2 REAR BRAKE DISC Unavailable
37 A1-001 2 REAR BRAKE DISC -Valid after stock exhaustion of 177718 Unavailable
38 16043424 2 SCREW $0.90
39 127496 4 WASHER $0.90
40 104370 2 BRAKE DISC FIXING SCREW Unavailable
41 10902024 2 SCREW $0.90
42 162606 2 CLIP $1.97
43 127494 2 WASHER $0.90
44 12643724 2 WASHER Superseded
45 10460287 2 RUBBER RING $1.97

* Quantity shown indicates the number of pieces used in the diagram.
