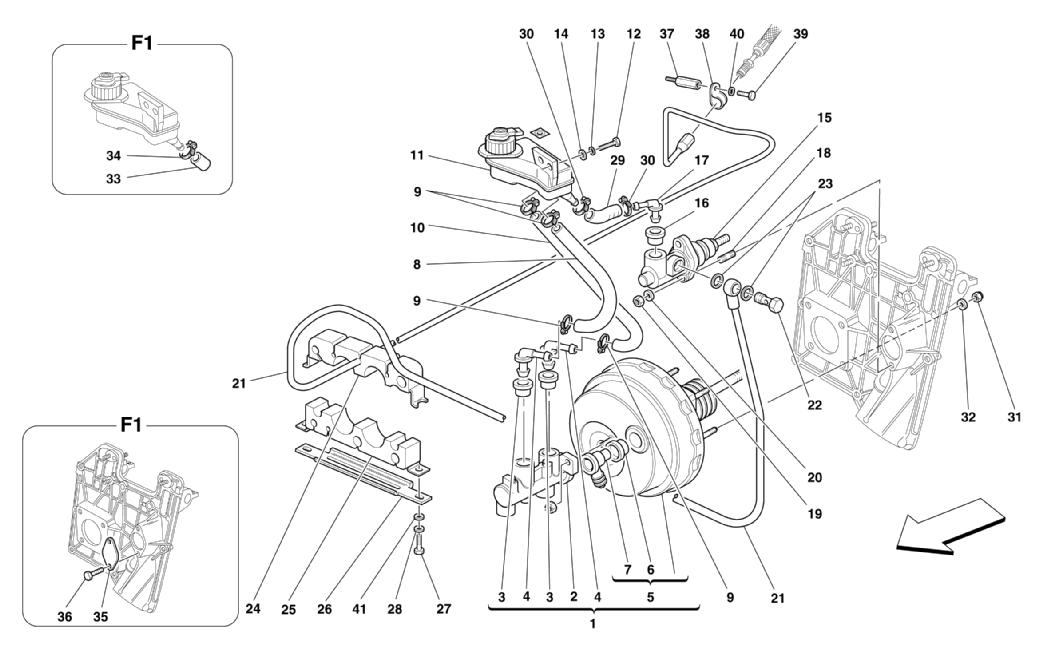

BRAKES AND CLUTCH HYDRAULIC CONTROLS -NOT FOR RHD

Location Part # Quantity* Description Price Add To Cart
1 171872 1 COMPLETE BRAKE BOOSTER $2,357.01
2 171782 1 BRAKE PUMP $879.98
3 171784 2 CONNECTION FOR BRAKE PUMP $30.43
4 173871 2 UNION -Not as spare part -Replaced by 183477 Superseded
4 183477 2 UNION $22.41
5 177090 1 BOOSTER Unavailable
6 151475 1 CABLE GROMMET $23.30
7 144552 1 UNION $19.77
8 182244 1 PIPE FROM FRONT UNION TO TANK $28.91
9 13000190 4 SCREW COLLAR $0.90
10 105857 1 PIPE FROM REAR UNION TO TANK $12.77
11 173415 1 COMPLETE BRAKE OIL TANK $94.88
12 10902524 2 SCREW Unavailable
13 12601274 2 WASHER $0.90
14 14496424 2 WASHER Superseded
15 180841 1 CLUTCH PUMP -Not for F1 $649.58
16 175189 1 SEAL RING -Not for F1 $27.59
17 184497 1 UNION -Not for F1 Unavailable
18 13517024 2 STUD -Not for F1 Unavailable
19 104030 2 NUT -Not for F1 $0.90
20 12601374 2 WASHER -Not for F1 $0.90
21 164167 1 PIPE FROM PUMP TO REAR UNION -Not for F1 Unavailable
22 180042 1 UNION -Not for F1 $43.92
23 10298460 2 GASKET -Not for F1 $0.90
24 178586 3 UPPER SUPPORT -Valid till Ass. Nr. 35743 $30.73
24 183048 3 UPPER SUPPORT -Valid from Ass. Nr. 35744 $36.22
25 178587 3 LOWER SUPPORT -Valid till Ass. Nr. 35743 $25.86
25 183049 3 LOWER SUPPORT -Valid from Ass. Nr. 35744 $31.04
26 178585 3 SMALL PLATE $3.02
27 10902424 6 SCREW Unavailable
28 127494 6 WASHER $0.90
29 182245 1 RUBBER HOSE -Not for F1 -Valid till stock exhaustion $2.92
29 182246 1 RUBBER HOSE -Not for F1 $18.25
30 13000190 2 SCREW COLLAR -Not for F1 $0.90
31 104030 4 NUT $0.90
32 12601374 4 WASHER $0.90
33 136379 1 PLUG -Valid for F1 Unavailable
34 13000190 1 SCREW COLLAR -Valid for F1 $0.90
35 174177 1 FLANGE -Valid for F1 $75.54
36 16043021 2 SCREW -Valid for F1 Unavailable
37 178772 1 STUD -Not for F1 $11.55
38 10441390 2 BRACKET WITH SHEATH -Not for F1 Unavailable
39 10902224 1 SCREW -Not for F1 $0.90
40 127494 1 WASHER -Not for F1 $0.90
41 12644424 6 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
