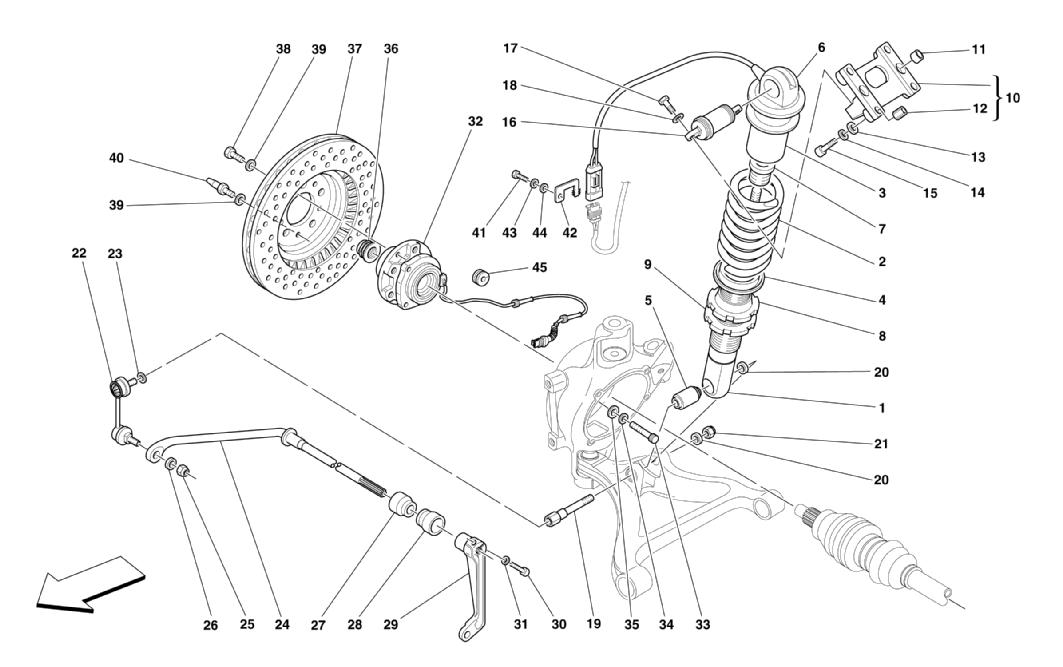

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 174724 *Qty: 2 REAR SHOCK ABSORBER $1,532.88
Location: 2 Prev | Next Part: 182408 *Qty: 2 SPRING -Replace together -Not as spare part -Replaced by 190677 Call
Location: 2 Prev | Next Part: 190677 *Qty: 2 SPRING $158.21
Location: 2 Prev | Next Part: 173851 *Qty: 2 SPRING -Replace together -Not as spare part -Replaced by 182408 Call
Location: 3 Prev | Next Part: 177688 *Qty: 2 UPPER SPACER $8.64
Location: 4 Prev | Next Part: 169684 *Qty: 2 LOWER SPACER $11.60
Location: 5 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 6 Prev | Next Part: 174727 *Qty: 2 SPRING RETAINING UPPER SPACER $261.07
Location: 7 Prev | Next Part: 174728 *Qty: 2 SHOCK ABSORBER PAD $112.93
Location: 8 Prev | Next Part: 174725 *Qty: 2 SPACER $111.21
Location: 9 Prev | Next Part: 174726 *Qty: 2 RING NUT Call
Location: 10 Prev | Next Part: 176625 *Qty: 2 SHOCK ABSORBER CONNECTION SUPPORT -Valid till car Nr. 120068 for LHD and 120193 for RHD $215.14
Location: 11 Prev | Next Part: 100013 *Qty: 4 CENTERING DOWEL -Valid till car Nr. 120068 for LHD and 120193 for RHD $2.60
Location: 12 Prev | Next Part: 13526170 *Qty: 4 THREADED INSERT -Valid till car Nr. 120068 for LHD and 120193 for RHD $5.66
Location: 13 Prev | Next Part: 14496524 *Qty: 8 WASHER -Valid till car Nr. 120068 for LHD and 120193 for RHD $0.90
Location: 14 Prev | Next Part: 127496 *Qty: 8 WASHER -Valid till car Nr. 120068 for LHD and 120193 for RHD $0.90
Location: 15 Prev | Next Part: 14306774 *Qty: 8 SCREW -Valid till car Nr. 120068 for LHD and 120193 for RHD $0.90
Location: 16 Prev | Next Part: 212948 *Qty: 2 SILENTBLOCK -Valid from Ass. Nr. 56992 and after stock exhaustion use 181804 -Replace together $149.53
Location: 17 Prev | Next Part: 11306934 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 160092 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 204974 *Qty: 2 SCREW $41.52
Location: 19 Prev | Next Part: 177664 *Qty: 2 SCREW -Valid till stock exhaustion $175.80
Location: 20 Prev | Next Part: 129225 *Qty: 4 WASHER $1.80
Location: 21 Prev | Next Part: 148020 *Qty: 2 NUT $4.84
Location: 22 Prev | Next Part: 161110 *Qty: 1 L.H. BALL TIE ROD $109.38
Location: 22 Prev | Next Part: 161109 *Qty: 1 R.H. BALL TIE ROD $109.38
Location: 23 Prev | Next Part: 160092 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 182432 *Qty: 1 REAR ANTI-ROLL BAR $1,724.46
Location: 25 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 170716 *Qty: 1 BAR BUFFER $22.86
Location: 28 Prev | Next Part: 170717 *Qty: 1 BAR BUFFER $22.86
Location: 29 Prev | Next Part: 175861 *Qty: 1 L.H. ARM $240.78
Location: 30 Prev | Next Part: 170950 *Qty: 1 SCREW $3.41
Location: 31 Prev | Next Part: 12601474 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 179070 *Qty: 2 HUB COMPLETE BEARING $907.35
Location: 33 Prev | Next Part: 180591 *Qty: 8 SCREW $17.69
Location: 34 Prev | Next Part: 160092 *Qty: 8 WASHER $0.90
Location: 35 Prev | Next Part: 10732414 *Qty: 8 WASHER $8.60
Location: 36 Prev | Next Part: 167259 *Qty: 2 NUT -Not as spare part -Replaced by 209184 Superseded
Location: 36 Prev | Next Part: 209184 *Qty: 2 NUT $33.27
Location: 37 Prev | Next Part: 182606 *Qty: 2 REAR BRAKE DISC -Valid after stock exhaustion of 177718 Call
Location: 37 Prev | Next Part: A1-001 *Qty: 2 REAR BRAKE DISC -Valid after stock exhaustion of 177718 Call
Location: 38 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING SCREW $0.90
Location: 41 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 42 Prev | Next Part: 162606 *Qty: 2 CLIP $0.93
Location: 43 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 45 Prev | Next Part: 10460287 *Qty: 2 RUBBER RING $1.54

* Quantity shown indicates the number of pieces used in the diagram.
