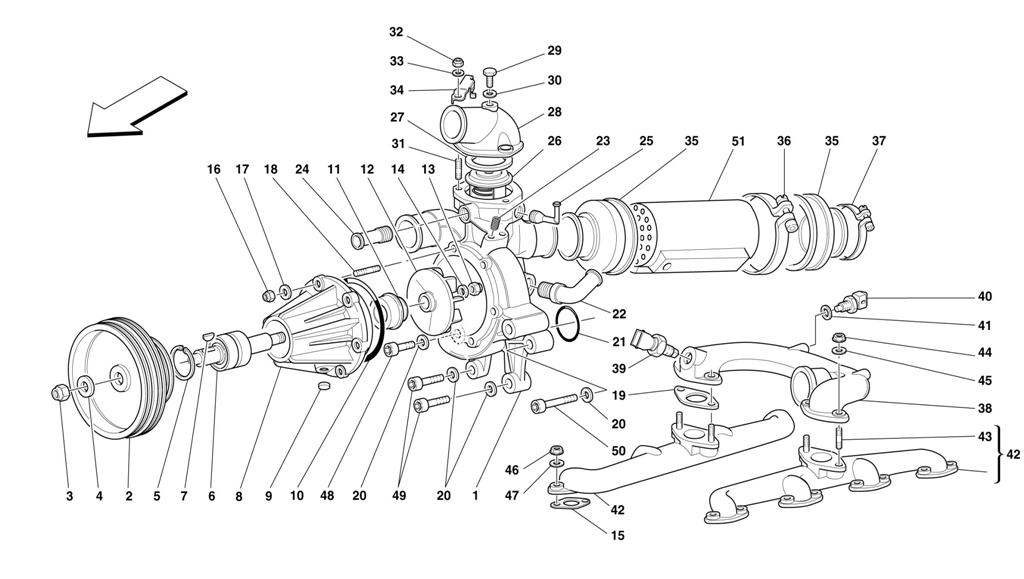

WATER PUMP AND OIL/WATER HEAT EXCHANGER

Back to F355 M5.2 (1996+) components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	177561	1	WATER PUMP (NO PULLEY)	$700.00
2	158014	1	WATER PUMP CONTROL PULLEY	$431.35
3	102742	1	NUT		Unavailable
4	12646824	1	WASHER		Unavailable
5	11059976	1	SEEGER RING	$1.42
6	143742	1	BEARING COMPLETE WITH SHAFT	$324.78
7	10202320	1	DISC KEY	$1.40
8	176173	1	WATER PUMP COVER		Unavailable
9	10158801	1	PLUG		Superseded
10	137868	1	O.R. GASKET	$18.25
11	183759	1	FRONT SEAL RING	$39.67
12	154542	1	WATER PUMP IMPELLER	$132.84
13	100436	1	NUT	$13.84
14	11194074	1	WASHER	$0.90
15	141332	8	GASKET	$1.56
16	102741	6	NUT	$0.90
17	12601274	6	WASHER	$0.90
18	13540924	6	STUD	$54.79
19	152362	2	GASKET	$1.68
20	12601374	4	WASHER	$0.90
21	101044	1	O.R. GASKET	$5.00
22	122844	1	UNION		Unavailable
23	13525570	2	THREADED INSERT	$2.86
24	106227	1	UNION	$8.67
25	157400	1	UNION	$50.56
26	165473	1	THERMOSTAT	$276.06
27	105192	1	GASKET	$22.41
28	136571	1	THERMOSTATIC VALVE COVER	$241.55
29	132349	1	UNION	$19.23
30	10297760	1	GASKET	$0.90
31	13541024	3	STUD		Unavailable
32	102741	3	NUT	$0.90
33	12601274	3	WASHER	$0.90
34	163856	1	BRACKET		Unavailable
35	145015	2	SLEEVE	$276.06
36	153430	2	CLAMP - D. 85 mm.-		Superseded
37	153429	2	CLAMP - D. 50 mm.-	$9.15
38	162450	1	WATER OUTLET MANIFOLD CONNECTION DUCT	$964.53
39	148677	1	WATER TEMPERATURE TRANSMITTER		Superseded
40	125769	1	WATER TEMPERATURE SENSOR	$73.06
41	10298460	1	GASKET	$0.90
42	154450	2	COMPLETE WATER OUTLET MANIFOLD	$964.53
43	13516724	4	STUD		Unavailable
44	177778	4	NUT	$1.97
45	12601374	4	WASHER	$0.90
46	132877	16	NUT		Superseded
47	12604274	16	WASHER	$0.90
48	14306424	1	SCREW - L. 25 mm.-		Unavailable
49	14306624	2	SCREW - L. 35 mm.-		Unavailable
50	14306824	1	SCREW - L. 45 mm.-		Unavailable
51	180846	1	WATER-OIL HEAT EXCHANGER	$1,035.28
52	180846_355	1	(KIT) WATER-OIL HEAT EXCHANGER CLICK TO CONFIGURE	-

* Quantity shown indicates the number of pieces used in the diagram.
