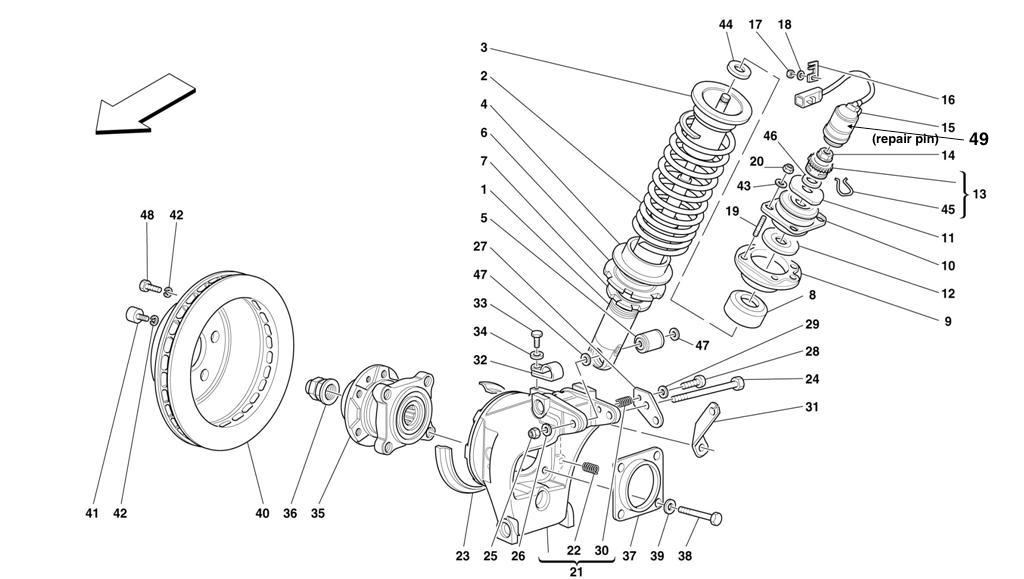

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 183634 2 REAR SHOCK ABSORBER $1,555.57
2 151882 2 SPRING -Sold in pair $465.86
3 165555 2 UPPER SPACER $94.37
4 113581 2 LOWER SPACER $30.43
5 157630 2 SHOCK ABSORBER BUSHING $127.67
6 155086 2 SPACER $86.00
7 141860 2 RING NUT $65.00
8 163599 2 PAD $108.69
9 151547 2 SPRING RETAINING CUP $42.45
10 114812 2 HYPERBLOCK $207.04
11 137825 2 WASHER $6.82
12 152654 2 WASHER $47.97
13 137824 2 ACTUATOR SUPPORT Unavailable
14 137826 2 NUT $4.55
15 158732 2 SHOCK ABSORBER ACTUATOR $1,604.69
16 155751 2 CLIP $5.93
17 62790300 2 NUT $0.90
18 10519224 2 WASHER $0.90
19 12354524 8 STUD $41.09
20 104030 8 NUT $0.90
21 162938 1 R.H. REAR HUB HOLDER -Not for ABS BOSCH and 355 F1 cars $2,848.78
21 162939 1 L.H. REAR HUB HOLDER -Not for ABS BOSCH and 355 F1 cars $1,639.20
21 175475 1 R.H. REAR HUB HOLDER -Valid for ABS BOSCH and 355 F1 cars -Valid till car Ass. Nr. 30750 $3,513.10
21 175476 1 L.H. REAR HUB HOLDER -Valid for ABS BOSCH and 355 F1 cars -Valid till car Ass. Nr. 30750 $3,372.38
21 178372 1 R.H. REAR HUB HOLDER -Valid for ABS BOSCH and 355 F1 cars -Valid from car Ass. Nr. 30751 $1,272.10
21 178373 1 L.H. REAR HUB HOLDER -Valid for ABS BOSCH and 355 F1 cars -Valid from car Ass. Nr. 30751 $3,002.88
22 133771 4 THREADED INSERT $5.01
23 103117 2 MUDGUARDS COVER $103.51
24 159309 2 SCREW Unavailable
25 148020 2 NUT $5.93
26 12601574 2 WASHER $0.90
27 159308 2 BALL TIE ROD FIXING PLATE $7.59
28 60909500 2 SCREW $2.58
29 127494 2 WASHER $0.90
30 13525470 2 THREADED INSERT Unavailable
31 140674 1 R.H. BRACKET $4.85
31 140675 1 L.H. BRACKET $4.85
32 10418501 2 BRACKET $4.55
33 10902024 2 SCREW $0.90
34 12601274 2 WASHER $0.90
35 157900 2 HUB COMPLETE BEARING Unavailable
36 209184 2 NUT $47.56
37 139900 2 HUB HOLDER DUCT PROTECTION $11.55
38 139973 8 SCREW $3.27
39 12601474 8 WASHER Unavailable
40 160052 2 REAR BRAKE DISC Unavailable
41 157841 2 BRAKE DISC FIXING AND WHEEL CENTERING SCREW Unavailable
42 127496 4 WASHER $0.90
43 12638524 8 WASHER $0.90
44 157104 2 BUSHING $23.26
45 142079 2 CLIP $8.06
46 160461 2 WASHER -Possible fitting $1.44
47 153495 8 SPACER WASHER mm. 3,0 Unavailable
47 153496 8 SPACER WASHER mm. 2,9 Unavailable
47 153497 8 SPACER WASHER mm. 3,1 Unavailable
48 16043424 2 BRAKE DISC FIXING SCREW $0.90
49 SAG355 2 ACTUATOR REPAIR GEAR AND PIN $58.00

* Quantity shown indicates the number of pieces used in the diagram.
