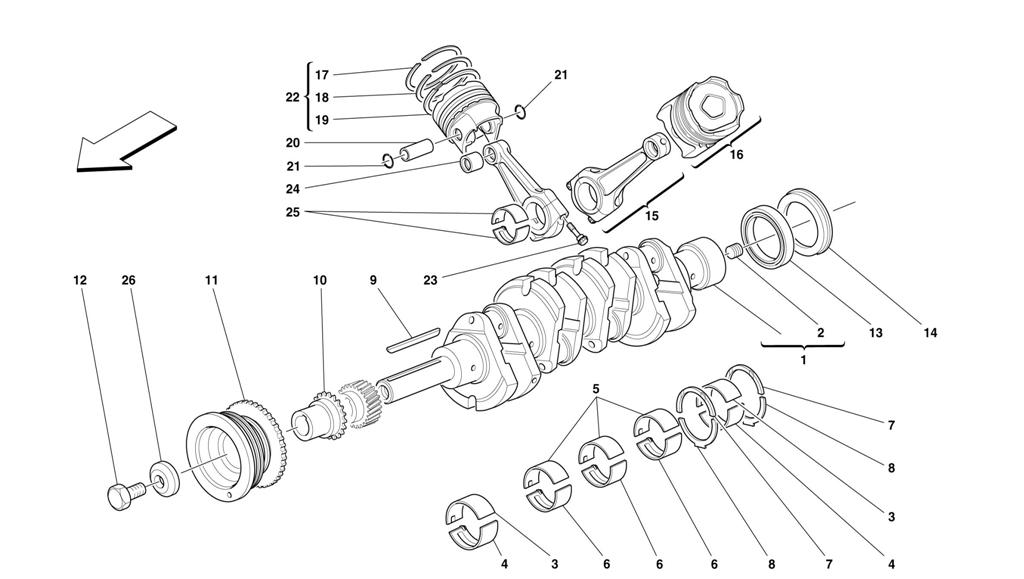

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 204886 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE $1,070.90
Location: - Prev | Next Part: 170929 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -1st UNDERSIZE mm. 0,254 $1,999.87
Location: - Prev | Next Part: 170930 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -2nd UNDERSIZE mm. 0,508 $2,104.54
Location: 1 Prev | Next Part: 155119 *Qty: 1 CRANKSHAFT $9,969.32
Location: 2 Prev | Next Part: 10268450 *Qty: 1 THREADED PLUG -Not as spare part for F355 replaced by 163528 $8.70
Location: 2 Prev | Next Part: 163528 *Qty: 1 THREADED PLUG -Substitutes 10268450 $4.51
Location: 3 Prev | Next Part: 164946 *Qty: 0 FRONT AND REAR UPPER HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part ing5r Call
Location: 3 Prev | Next Part: 164947 *Qty: 0 FRONT AND REAR UPPER HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part ing5r Call
Location: 3 Prev | Next Part: 164098 *Qty: 2 FRONT AND REAR UPPER HALF BEARING -Not as spare part -With the half-bearings complete series Call
Location: 4 Prev | Next Part: 164953 *Qty: 0 FRONT AND REAR LOWER HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part ing5r Call
Location: 4 Prev | Next Part: 164954 *Qty: 0 FRONT AND REAR LOWER HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part ing5r Call
Location: 4 Prev | Next Part: 164100 *Qty: 2 FRONT AND REAR LOWER HALF BEARING -Not as spare part -With the half-bearings complete series Superseded
Location: 5 Prev | Next Part: 164101 *Qty: 3 UPPER INTERMEDIATE HALF BEARING -Not as spare part -With the half-bearings complete series $29.98
Location: 5 Prev | Next Part: 164956 *Qty: 0 UPPER INTERMEDIATE HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part ing5r Call
Location: 5 Prev | Next Part: 164957 *Qty: 0 UPPER INTEMEDIATE HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part ing5r Call
Location: 6 Prev | Next Part: 164950 *Qty: 0 INTERMEDIATE LOWER HALF BEARING 1st UNDERSIZE mm. 0,254 -Not as spare part ing5r Call
Location: 6 Prev | Next Part: 164951 *Qty: 0 INTERMEDIATE LOWER HALF BEARING 2nd UNDERSIZE mm. 0,508 -Not as spare part ing5r Call
Location: 6 Prev | Next Part: 164099 *Qty: 3 INTERMEDIATE LOWER HALF BEARING -Not as spare part -With the half-bearings complete series Call
Location: 7 Prev | Next Part: 164111 *Qty: 2 UPPER SHIM -Not as spare part -With the half-bearings complete series $15.72
Location: 7 Prev | Next Part: 164112 *Qty: 0 UPPER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 7 Prev | Next Part: 164113 *Qty: 0 UPPER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM -Not as spare part -With the half-bearings complete series $15.72
Location: 8 Prev | Next Part: 164109 *Qty: 0 LOWER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164110 *Qty: 0 LOWER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 9 Prev | Next Part: 151289 *Qty: 1 KEY $4.11
Location: 10 Prev | Next Part: 146911 *Qty: 1 OIL PUMP CONTROL GEAR $113.90
Location: 11 Prev | Next Part: 164564 *Qty: 1 PULLEY WITH TOOTHED WHEEL $418.93
Location: 12 Prev | Next Part: 138793 *Qty: 1 SCREW $77.00
Location: 13 Prev | Next Part: 183581 *Qty: 1 SEAL RING $135.68
Location: 14 Prev | Next Part: 183581 *Qty: 1 SEAL RING -Valid after stock exhaustion of 148672 $135.68
Location: 15 Prev | Next Part: 155562 *Qty: 8 COMPLETE CONNECTING ROD AND CAP $1,084.91
Location: 16 Prev | Next Part: 159141 *Qty: 8 PISTON WITH RINGS $1,271.95
Location: 17 Prev | Next Part: 160813 *Qty: 8 AC SEAL RING (1st groove) -Not as spare part -With the pistons rings set Call
Location: 18 Prev | Next Part: 152991 *Qty: 8 AC SEAL RING (2nd groove) -Not as spare part -With the pistons rings set Call
Location: 19 Prev | Next Part: 132773 *Qty: 8 ROF OIL SCRAPING RING (3rd groove) -Not as spare part -With the pistons rings set Call
Location: 20 Prev | Next Part: 154717 *Qty: 8 PIN $38.24
Location: 21 Prev | Next Part: 166901 *Qty: 16 STOP RING $7.41
Location: 22 Prev | Next Part: 164026 *Qty: 8 PISTONS RINGS SET $214.03
Location: 23 Prev | Next Part: 158186 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $115.47
Location: 24 Prev | Next Part: 174701 *Qty: 8 BUSHING $13.80
Location: 25 Prev | Next Part: 202389 *Qty: 16 CONNECTING ROD HALF $42.71
Location: 25 Prev | Next Part: 166564 *Qty: 16 CONNECTING ROD HALF BEARING $71.24
Location: 25 Prev | Next Part: 166565 *Qty: 16 CONNECTING ROD HALF BEARING $80.05
Location: 26 Prev | Next Part: 138792 *Qty: 1 WASHER $5.44

* Quantity shown indicates the number of pieces used in the diagram.
