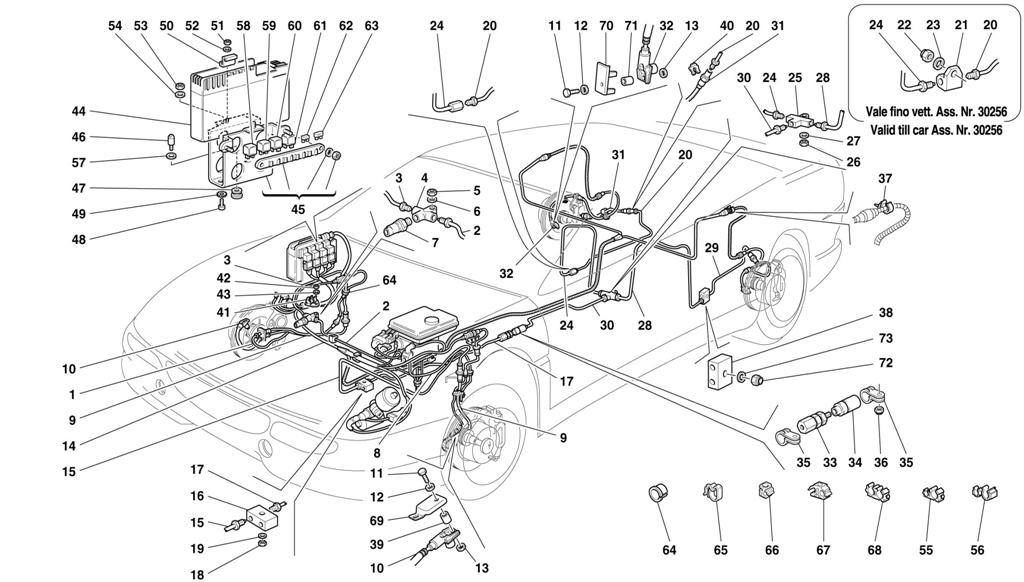

ABS TEVES BRAKE SYSTEM -NOT FOR ABS BOSCH E 355 F1 CARS-

Back to F355 M5.2 (1996+) components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	143641	1	PIPE TO R.H. FRONT CALIPER	$207.04
1	143669	1	PIPE TO L.H. FRONT CALIPER	$207.04
2	156240	1	BRAKE PIPE FROM CENTER UNIT TO R.H. FRONT UNION -Not for RHD	$17.23
2	161367	1	BRAKE PIPE FROM CENTER UNIT TO R.H. FRONT UNION -Valid for RHD	$14.66
3	156241	1	BRAKE PIPE FROM UNION TO R.H. FRONT FLEXIBLE PIPE	$20.65
4	10104661	1	3-WAY UNION	$9.66
5	102741	1	NUT	$0.90
6	12639724	1	WASHER	$0.90
7	154309	1	PRESSURE SWITCH	$43.12
8	153472	1	BRAKE PIPE FROM CENTER UNIT TO L.H. REAR FLEXIBLE PIPE -Not for RHD	$16.20
8	162754	1	BRAKE PIPE FROM CENTER UNIT TO L.H. REAR FLEXIBLE PIPE -Valid for RHD	$20.69
9	116373	2	FRONT BRAKE FLEXIBLE PIPE		Superseded
10	139639	2	FRONT SENSOR		Unavailable
11	10902724	4	SCREW		Unavailable
12	12601274	4	WASHER	$0.90
13	154747	0	THICKNESS -Possible fitting	$1.97
14	160892	1	CABLES FOR ANTISKID DEVICES CONNECTION -Valid for RHD	$860.27
14	158042	1	CABLES FOR ANTISKID DEVICES CONNECTION -Not for RHD	$2,614.60
15	162755	1	BRAKE PIPE FROM CENTER UNIT TO 2-WAY UNIT -Valid for RHD	$16.54
15	159756	1	BRAKE PIPE FROM CENTER UNIT TO 2-WAY UNIT -Not for RHD	$13.30
16	139375	1	2-WAY UNION	$74.00
17	145074	1	PIPE FROM 2-WAY UNION TO BRAKING CORRECTOR	$67.27
18	102741	1	NUT	$0.90
19	12639724	1	WASHER	$0.90
20	165286	1	BRAKE PIPE FROM UNION TO REAR R.H. FLEXIBLE -Valid till car Ass. Nr. 30256		Unavailable
20	178669	1	BRAKE PIPE FROM UNION TO REAR R.H. FLEXIBLE -Valid from car Ass. Nr. 30257		Unavailable
21	155215	1	R.H. TWO-WAY UNION -Valid till car Ass. Nr. 30256	$36.54
22	102741	1	NUT -Valid till car Ass. Nr. 30256	$0.90
23	12639724	1	WASHER -Valid till car Ass. Nr. 30256	$0.90
24	145076	1	BRAKE PIPE FROM THREE-WAY UNION TO R.H. UNION -Valid till car Ass. Nr. 30256	$10.17
24	178668	1	BRAKE PIPE FROM THREE-WAY UNION TO R.H. UNION -Valid from car Ass. Nr. 30257		Unavailable
25	10104661	1	3-WAY UNION	$9.66
26	102741	1	NUT	$0.90
27	12639724	1	WASHER	$0.90
28	162756	1	BRAKE PIPE FROM THREE-WAY UNION TO L.H. UNION		Unavailable
29	176226	1	BRAKE PIPE FROM UNION TO REAR L.H. FLEXIBLE		Unavailable
30	145075	1	BRAKE PIPE FROM CORRECTOR TO THREE-WAY UNION	$18.96
31	118100	2	REAR BRAKE FLEXIBLE PIPE		Superseded
32	139479	2	REAR SENSOR		Unavailable
33	134597	1	DELAY VALVE		Unavailable
34	157908	1	BRAKING REGULATOR		Unavailable
35	10441990	2	BRACKET WITH SHEATH		Unavailable
36	102741	2	NUT	$0.90
37	161639	2	FLEXIBLE CLIP	$1.66
38	139375	1	UNION	$74.00
39	159713	2	SPACER	$3.84
40	116374	4	CLIP	$3.19
41	128292	2	CLIP		Unavailable
42	62790300	2	NUT	$0.90
43	10519224	2	WASHER	$0.90
44	148838	1	ELECTRONIC CONTROL STATION		Unavailable
45	158012	1	BRACKET FOR CONTROL UNIT FIXING -Not for RHD	$50.63
45	158013	1	BRACKET FOR CONTROL UNIT FIXING -Valid for RHD	$49.53
46	137144	1	PIN	$3.09
47	103549	1	CABLE GROMMET	$1.81
48	11021111	2	SCREW		Unavailable
49	10615274	2	WASHER		Unavailable
50	142382	2	PLATE -Valid for RHD	$5.48
50	138500	2	PLATE -Not for RHD	$13.68
51	169180	2	NUT		Unavailable
52	10519377	2	WASHER		Unavailable
53	102948	2	NUT		Superseded
54	12646601	2	WASHER		Unavailable
55	140742	4	ELASTIC SPRINGS ASSEMBLY -D. 10 - D. 18		Unavailable
56	150695	2	CLIP -D. 9 - D. 11		Unavailable
57	104731	1	WASHER	$3.80
58	158092	1	DIODES CONTAINER		Unavailable
59	158091	1	ABS ELECTRONIC UNIT RELAY		Unavailable
60	158090	1	ABS PUMP MOTOR RELAY		Unavailable
61	131940	1	SYSTEM RELEASE RELAY		Unavailable
62	131942	1	3 A. FUSE		Unavailable
63	131941	2	30 A. FUSE		Unavailable
64	105369	3	CABLE GROMMET	$30.55
65	140798	1	CLIP		Unavailable
66	141505	17	CLIP		Unavailable
67	141522	7	CLIP		Unavailable
68	140130	8	FRONT AND REAR PIPE FIXING MODULE	$0.90
68	145544	4	FRONT PIPE FIXING MODULE		Unavailable
69	159662	1	R.H. FRONT SENSOR PROTECTION	$35.63
69	159663	1	L.H. FRONT SENSOR PROTECTION	$44.84
70	159758	2	REAR SENSOR PROTECTION	$80.91
71	159713	2	SPACER	$3.84
72	102741	1	NUT	$0.90
73	12639724	1	WASHER	$0.90

* Quantity shown indicates the number of pieces used in the diagram.
